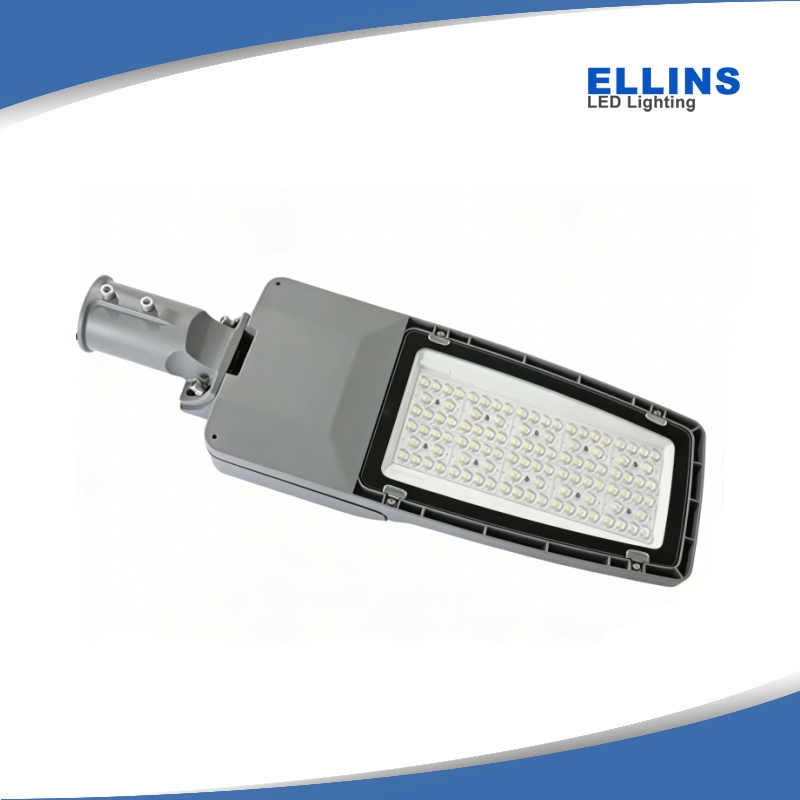

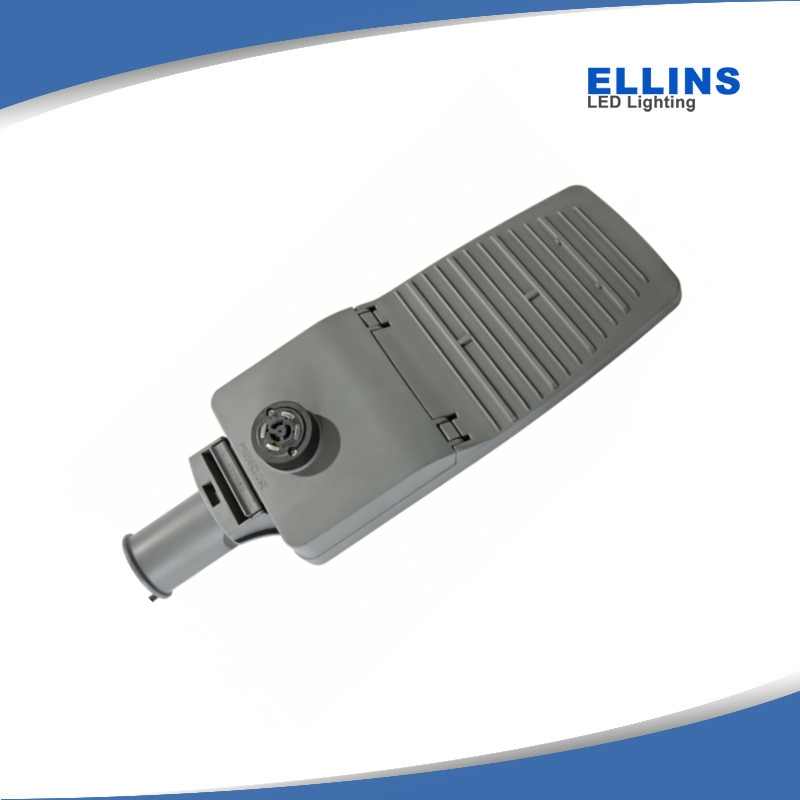

Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
1 / 5
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects
Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects

Integrated Smart Street Lights with Lorawan Gateway Controlled for Municipal Road Projects

Send Inquiry

Product Description

All-in-One Smart Street Light Solution
Our intelligent LED street light is designed for municipal engineering, urban road lighting upgrade and smart city projects. It integrates advanced IoT technology and LoRaWAN Gateway for reliable remote control and centralized management, making it the ideal solution for modern road lighting renovation.

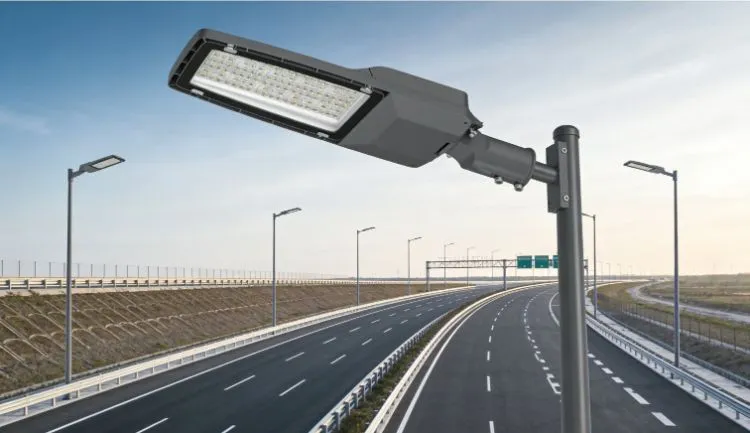

Integrated Smart Street Lights
Detailed Product Display

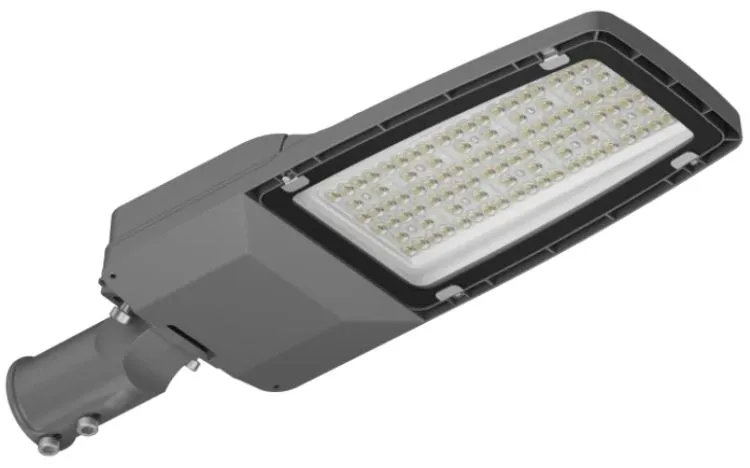

Smart Street Light Detail 1

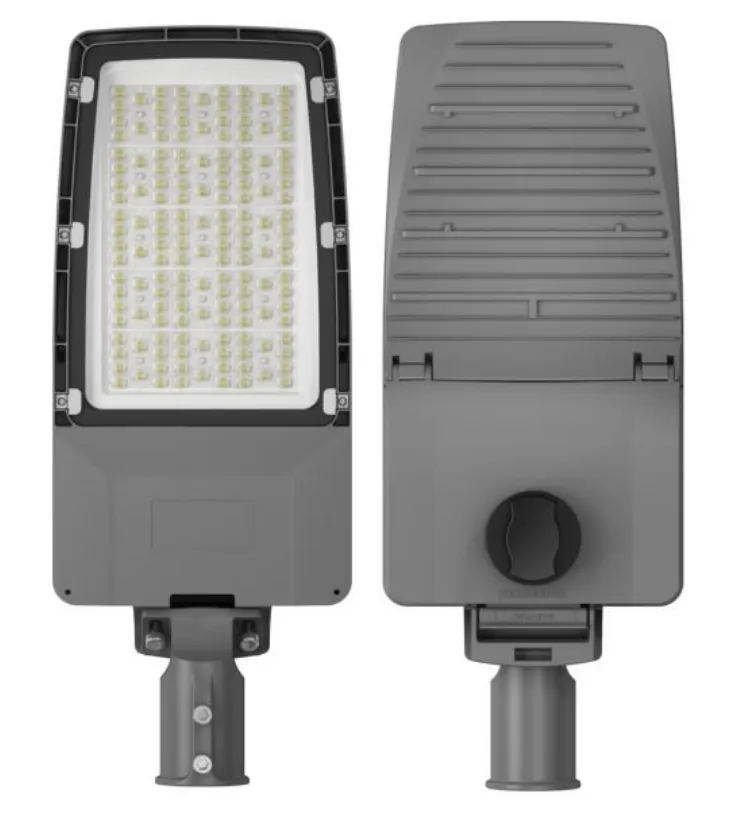

Smart Street Light Detail 2
Smart Street Light Detail 3

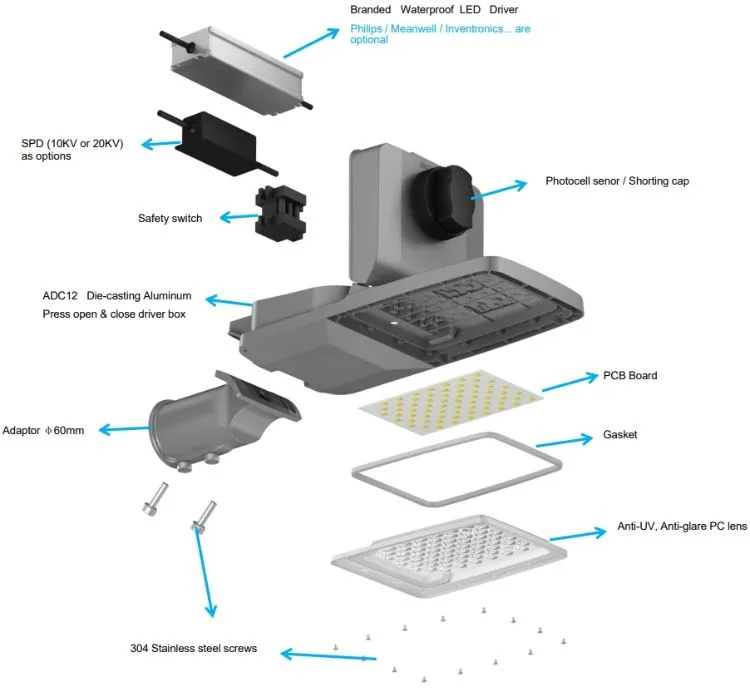

Smart Street Light Detail 4
Product Parameters
SKUELS-ST34
Watts30W-80W / 80W-120W / 150-200W / 200-240W
LED BrandBrigelux / Cree and other high-end brands SMD 3030, 5050 as options
Lmuninous Efficiency180lm/w ±5lm/w
Driver BrandMeanwell / Inventronics / Fahold / SUNCOM / Gauton as options, 1-10V dimmable available
Extra FunctionNEMA-7 Pins Socket / Photocell / SPD 10KV as options, smart solution with gateway available
Input Voltage100-277V / 50-60Hz
CCT3000K / 4000K / 5000K / 5700K / 6000K / 6500K available
Bean AngleType II 70*150° / Type III 150*80° / Type IV / Type V
MaterialDie-casting aluminum housing + PC lens, Tempered glass as option
IP & IK GradeIP67 IK10
LED Lifespan> 100,000 hrs
Warranty5 / 7 / 10 years as options
Key Features
I. LoRaWAN & IoT Remote Control
  • 1Built with LoRaWAN gateway communication for stable long-distance control.
  • 2Support remote dimming, on/off control, status monitoring and fault alarm.
  • 3Centralized management platform for city-wide lighting system.
II. Programmable Lighting
  • 1Fully programmable brightness and working time.
  • 2Smart dimming function to save energy and extend lifespan.
III. High Efficiency Performance
High lumen output LED chips for super bright and uniform lighting with 180lm/w efficiency. Wide voltage input ensures stable operation in various environments.
IV. IP67 Waterproof & Durability
  • ✓IP67 waterproof and dustproof rating.
  • ✓Anti-corrosion, anti-aging, and strong wind resistance.
Light Distribution & Technical Charts

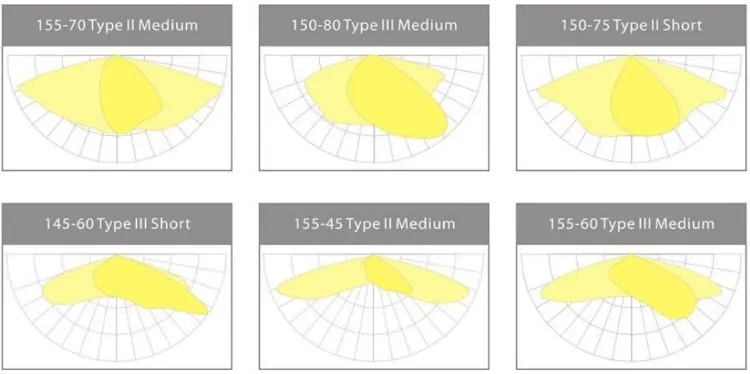

Light Distribution Curve
Technical Drawing 1

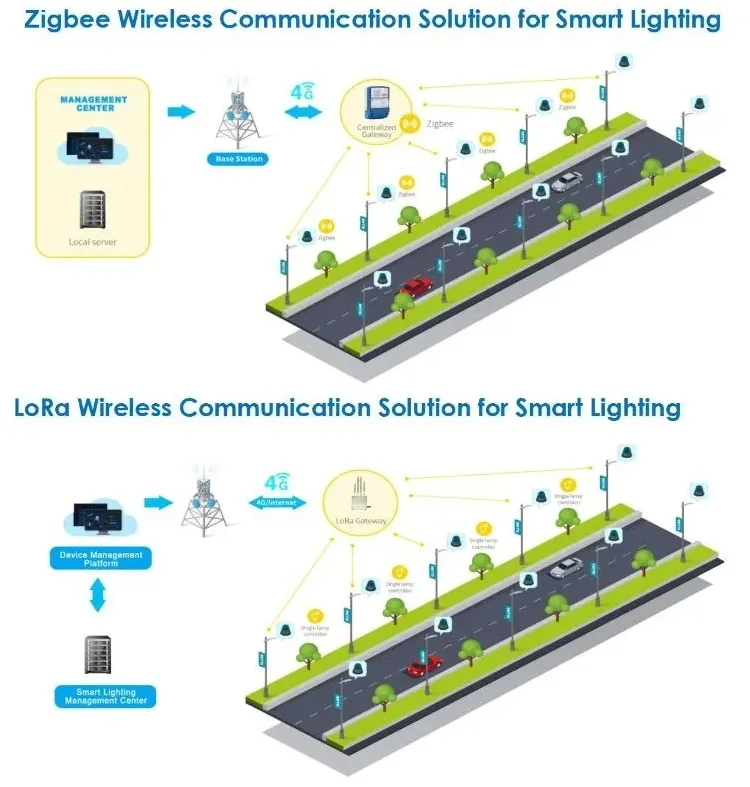

Technical Drawing 2

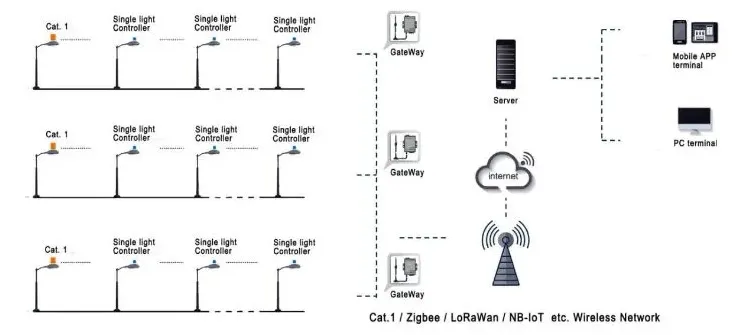

Sensor Specification
Application Scenarios

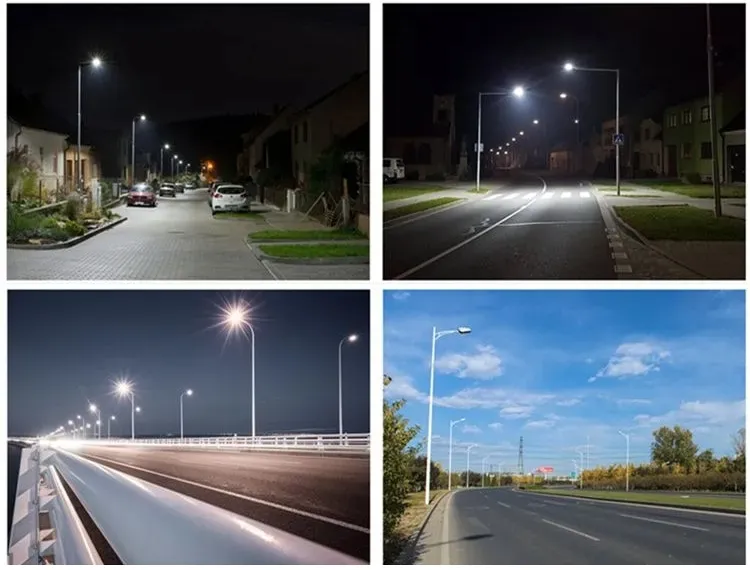

Application 1

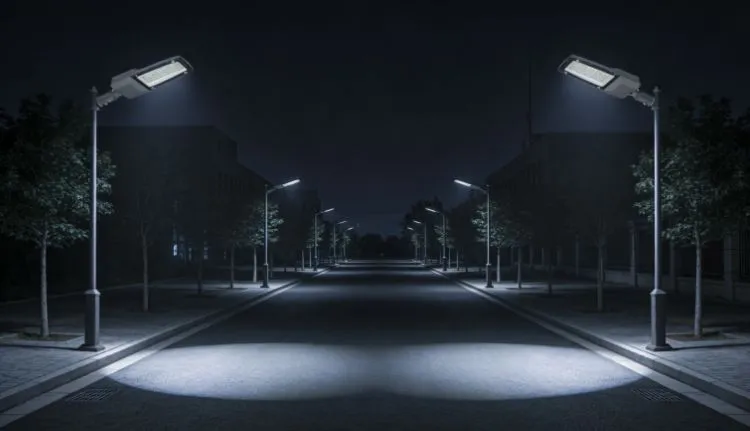

Application 2
  • →Municipal road lighting upgrade & reconstruction
  • →Urban main roads, secondary roads, and branch roads
  • →Highways, squares, stations, docks, and industrial parks
  • →Smart city construction and public lighting projects

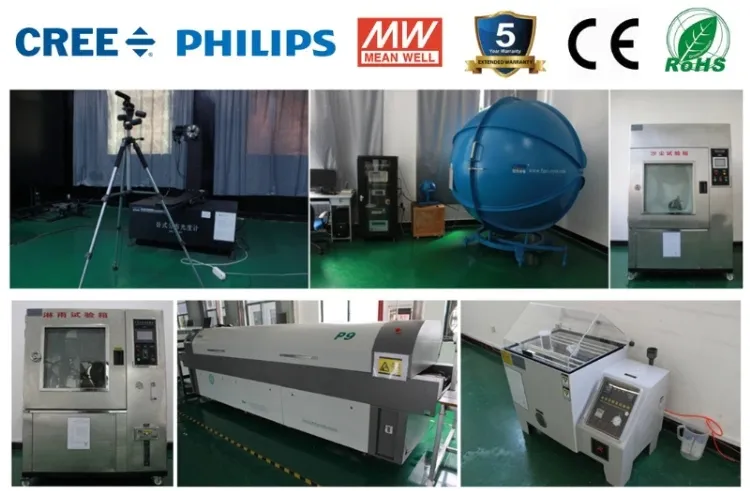

Production & Quality Control

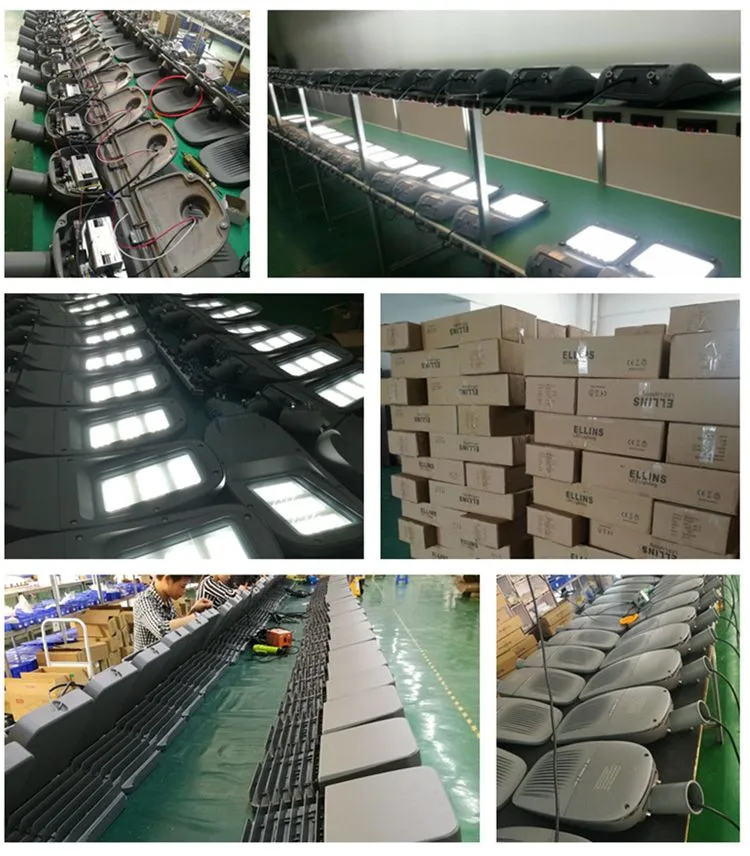

Production Process

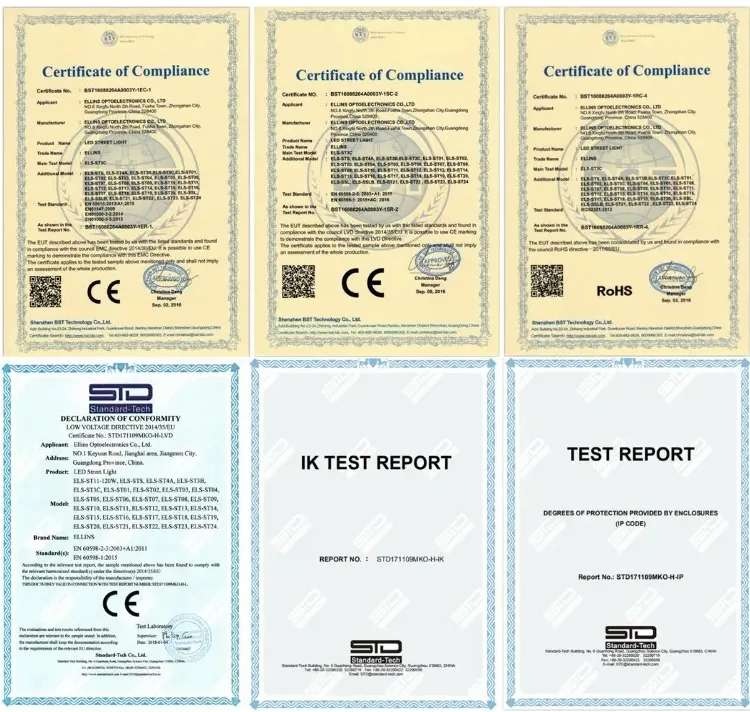

Certifications
Professional Smart Lighting Solution
We offer mature LoRaWAN IoT solutions with stable performance. Our products are customizable across various power outputs (30W to 300W) to support overseas distributors and contractors in municipal engineering and urban upgrade programs.
Smart System Overview
Frequently Asked Questions
Q1: What communication technology is used for remote control?
A: The system utilizes LoRaWAN gateway technology, which provides stable, long-distance communication for city-wide lighting management.
Q2: Can the lighting schedule be customized?
A: Yes, the lights are fully programmable for both brightness levels and working times to maximize energy savings.
Q3: What is the waterproof and durability rating?
A: The street lights carry an IP67 waterproof rating and IK10 impact resistance, making them suitable for harsh outdoor environments.
Q4: What is the typical lifespan of the LED components?
A: Our high-end LED chips are rated for a lifespan exceeding 100,000 hours with high luminous efficiency of 180lm/w.
Q5: What warranty options are available for municipal projects?
A: We offer flexible warranty periods of 5, 7, or 10 years based on specific project requirements and component selections.
Q6: Are different light distributions available for various road types?
A: Yes, we provide Type II, Type III, Type IV, and Type V beam angles to accommodate everything from narrow branch roads to wide highways.
