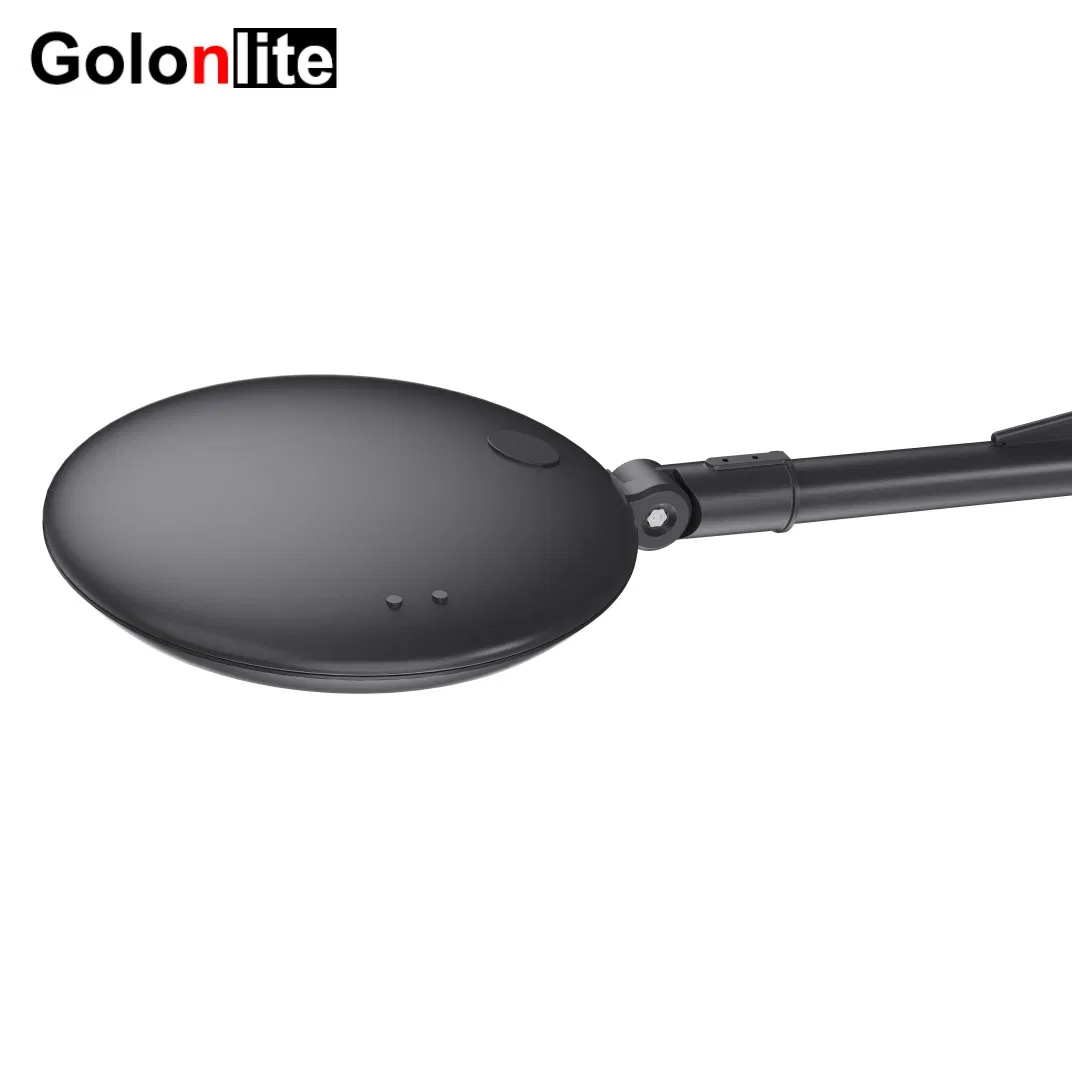

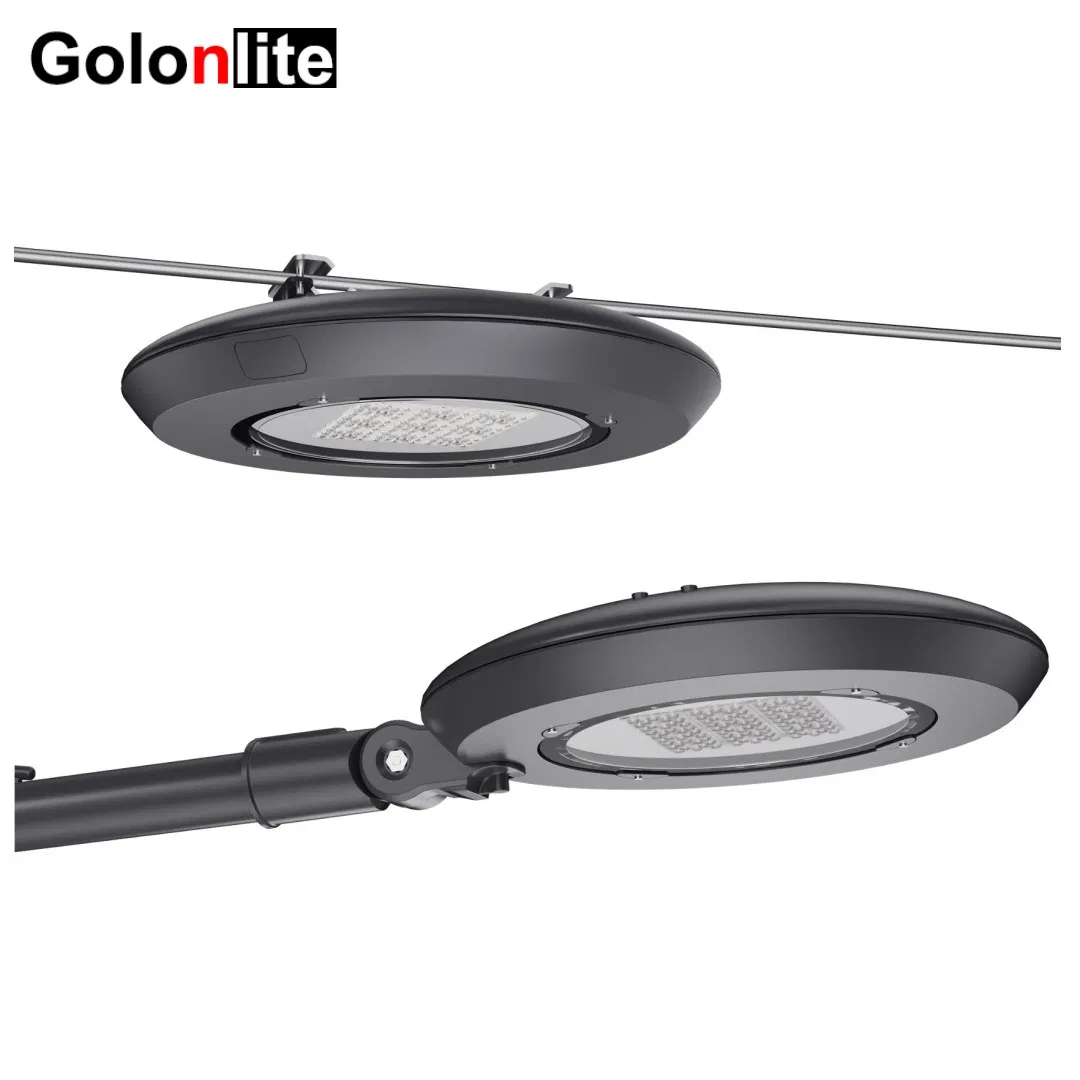

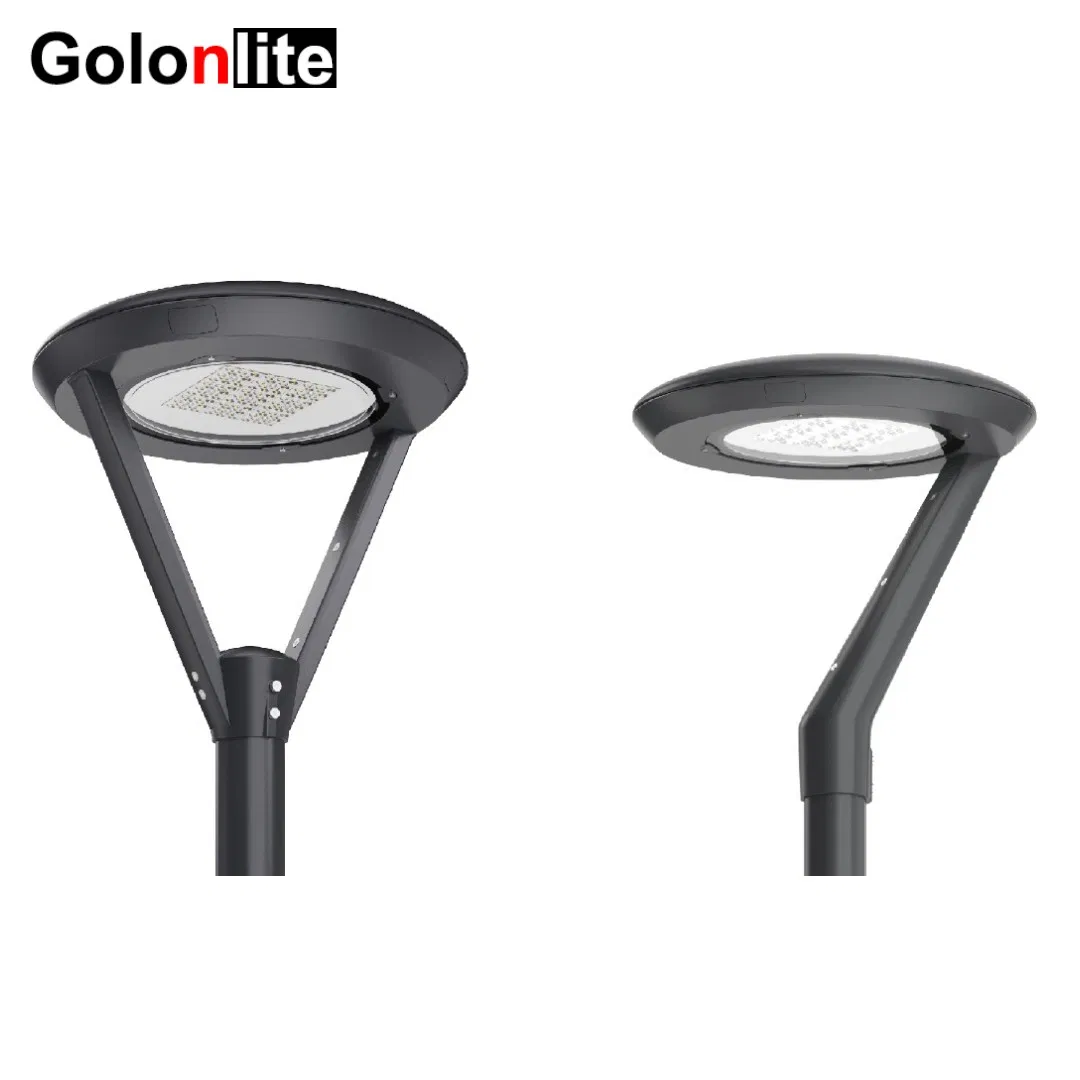

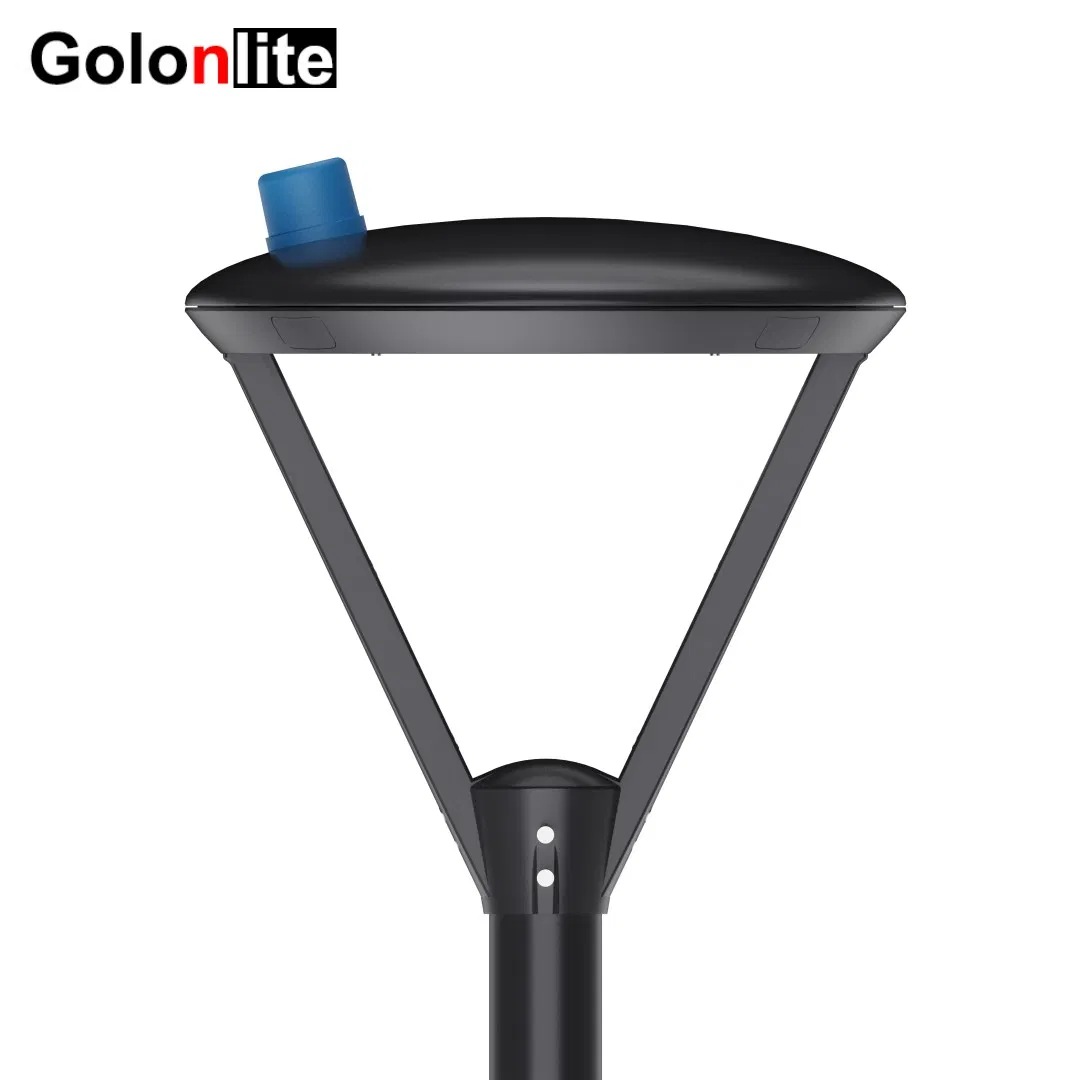

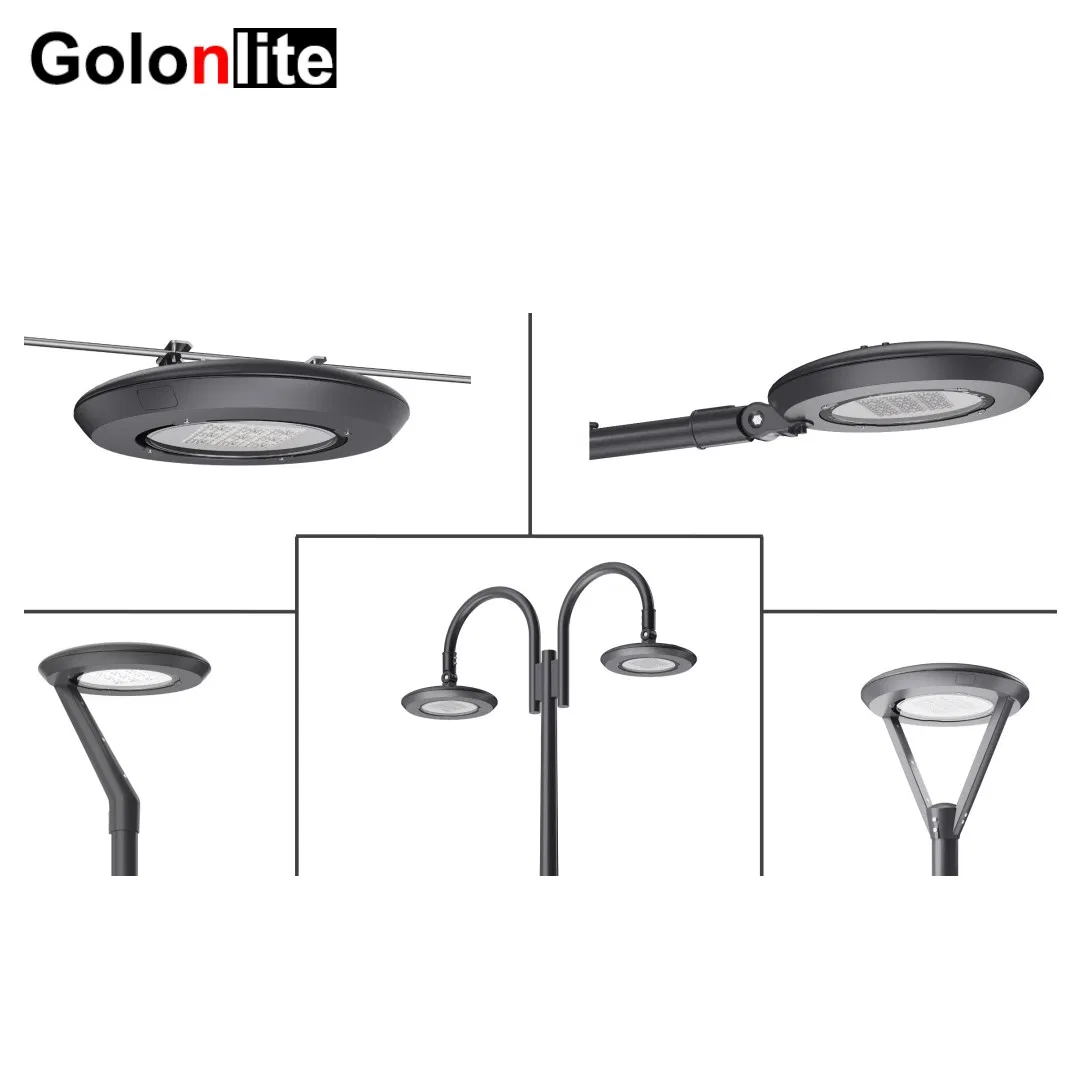

170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
1 / 5
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting
170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting

170lm/W 50W 90W 120W 150W LED Street Light with Tool Free Opening Public Area LED Smart Urban Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊
Basic Information
Material
Die Casting Aluminum + PC Lens + Tempered Glass
Power Range
30W to 200W Options
IP Rating
IP66 / IK08
Input Voltage
100-277VAC 50/60Hz
LED Chips
SMD3030 / SMD5050
Warranty
5/7 Years
Certification
CE, EMC, LVD, RoHS
SPD
6KV / 10KV / 20KV
💡
Product Overview

170lm/W - 180lm/W High Efficiency Tool-Free Opening LED Street Light

Technical Specifications
Luminous Efficiency150Lm/W - 180Lm/W
CCT(K)1700K - 6500K Options
CRI> Ra80/70
Power SupplyMeanwell / Inventronics / Sosen / Moso Driver
Lifespan> 50,000 Hours
Beam AngleT2 / T3 / T4
Smart Control3/5/7 pins NEMA / Photocell / LoRaWan / Zigbee
⭐
Key Features
  • Die casting aluminum housing with Optical PC lens and tempered glass.
  • Super bright efficiency up to 170Lm/W for maximum energy saving.
  • Tool-free opening design for easy maintenance and installation.
  • Multiple optical lens options: T2M, T3M, T4M, P50.
  • Robust surge protection (SPD) up to 20KV.
  • IP66 waterproof and IK08 impact resistance.
  • Free Dialux lighting simulation available for projects.
🖼️
Product Showcase

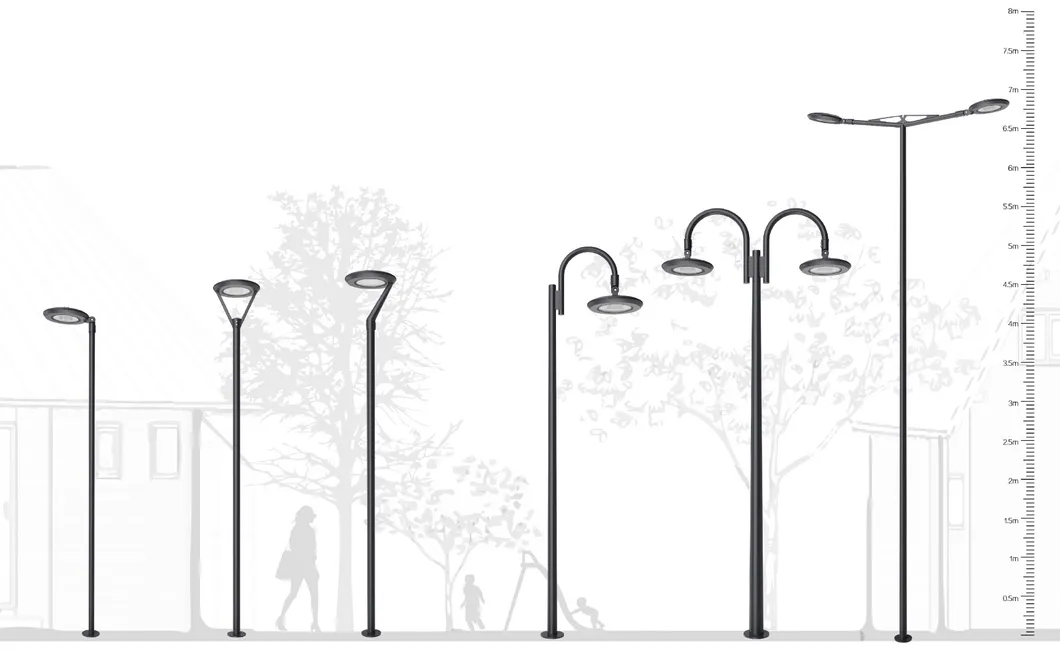

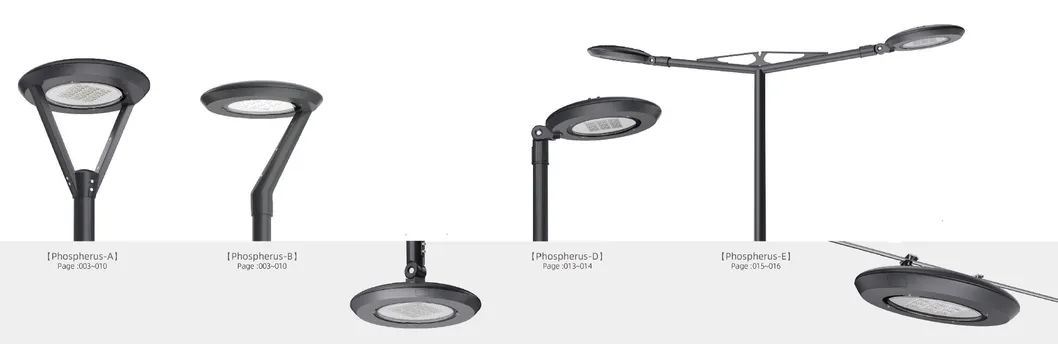

LED Street Light Overview Feature Banner

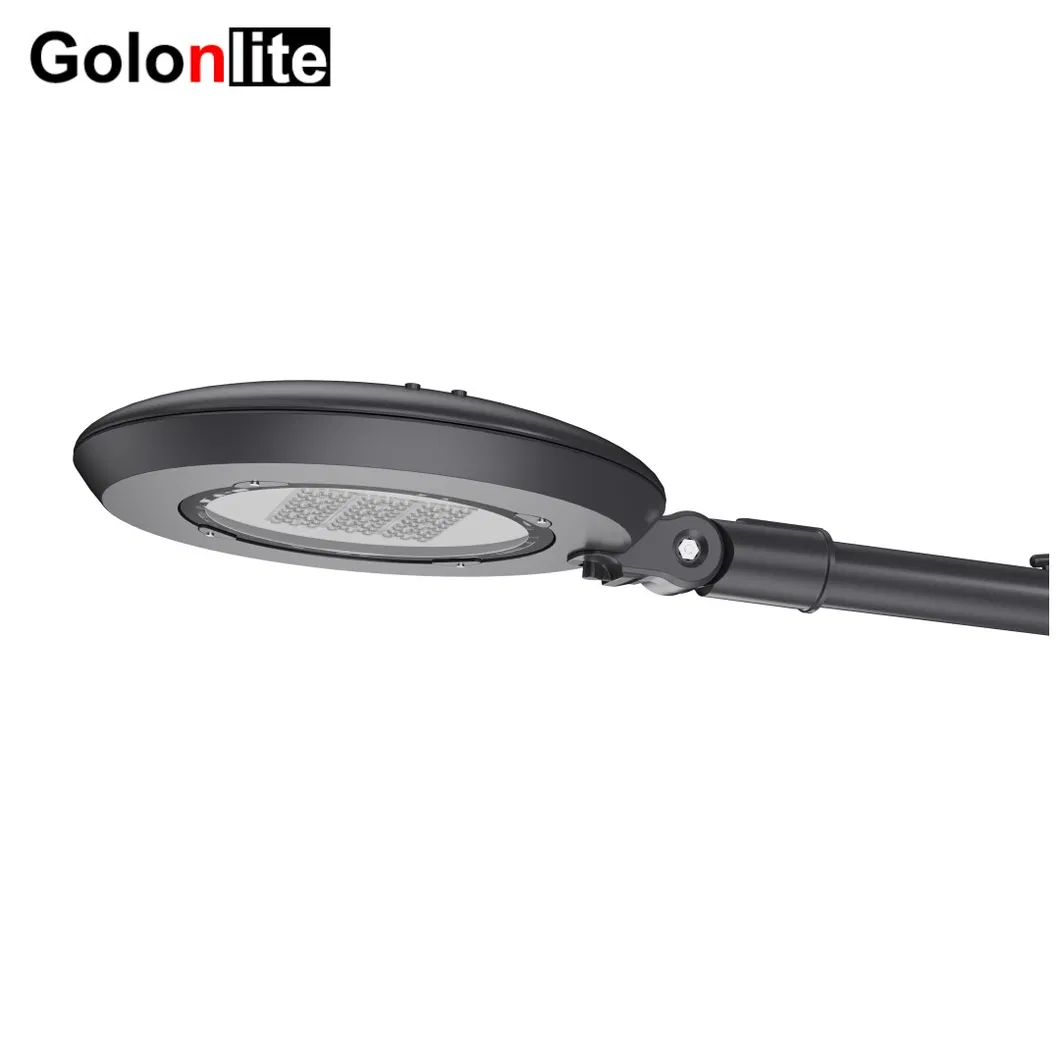

Details 1
Details 2

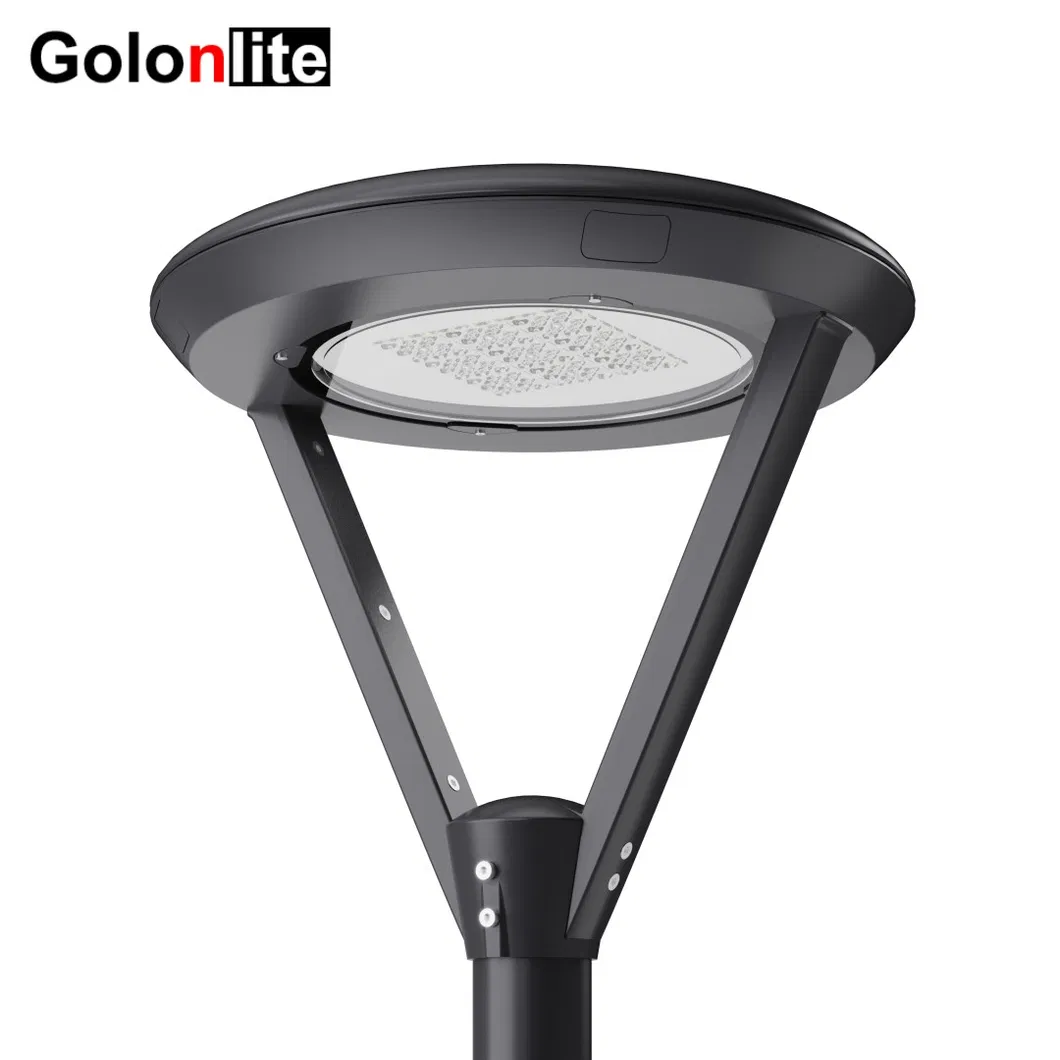

Details 3

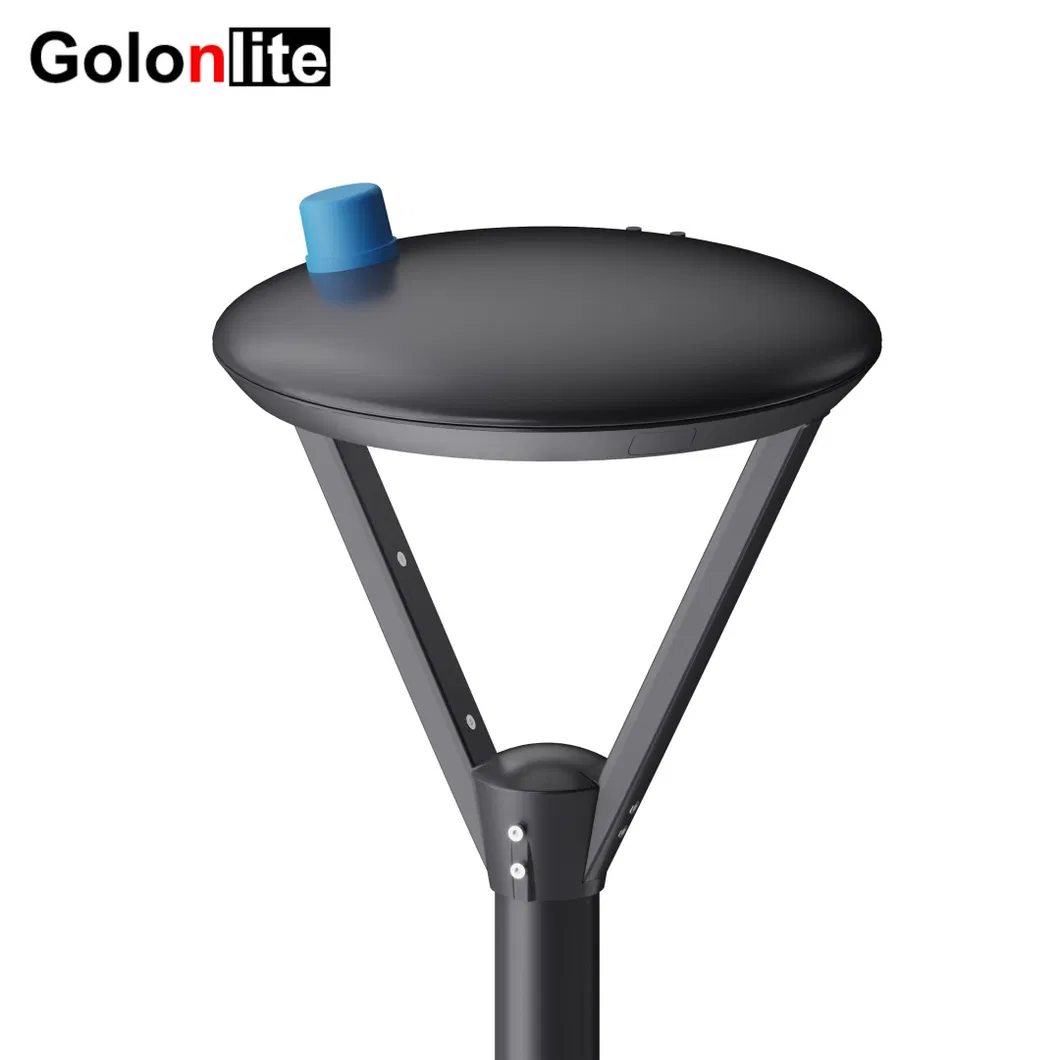

Details 4

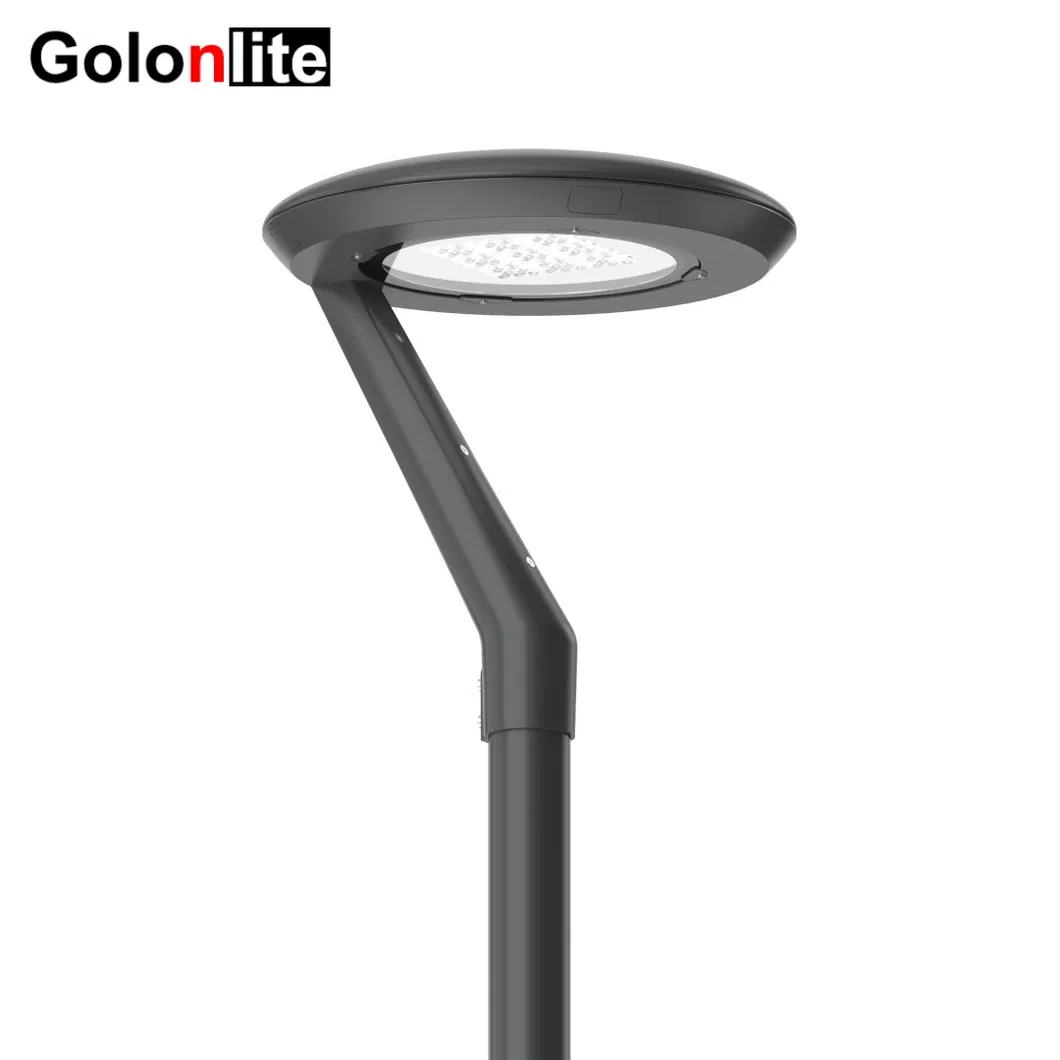

Details 5

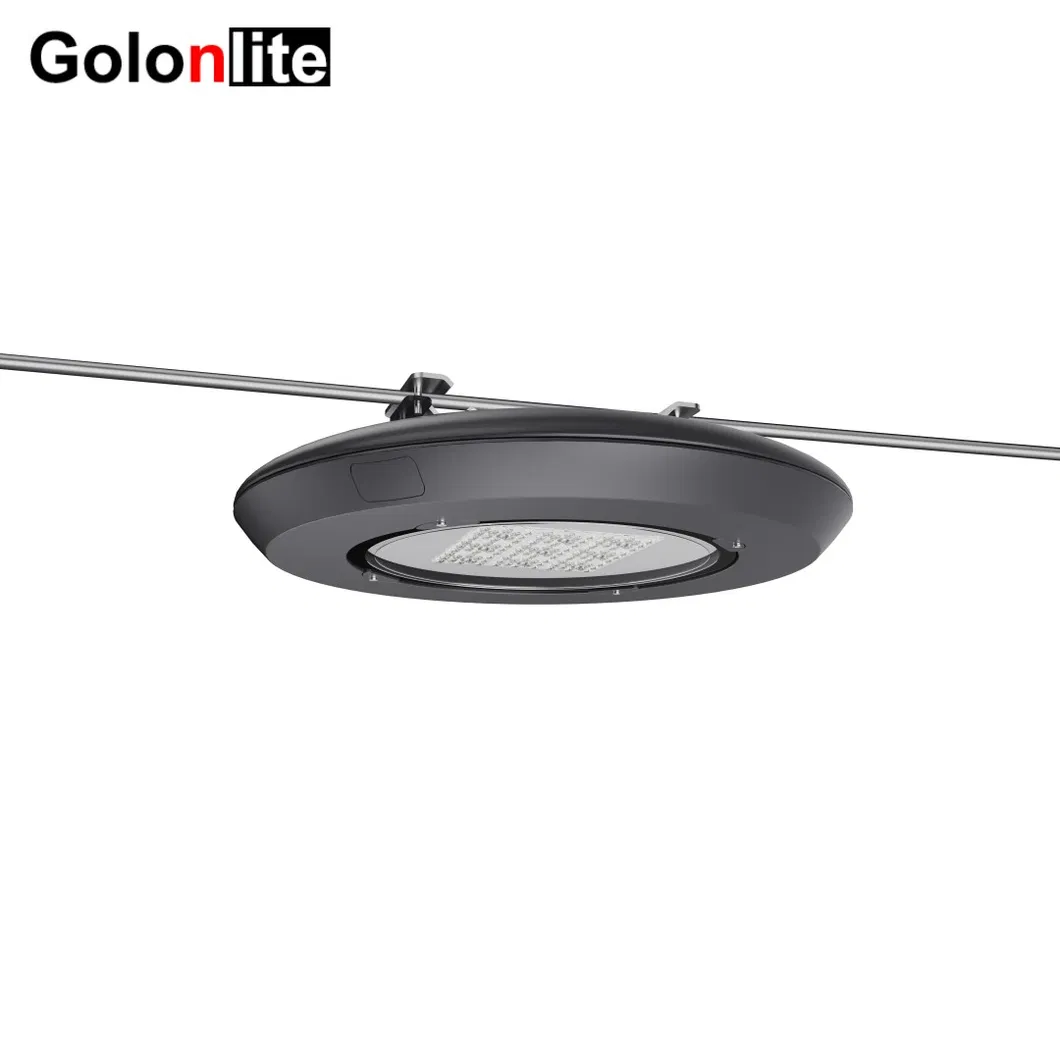

Details 6

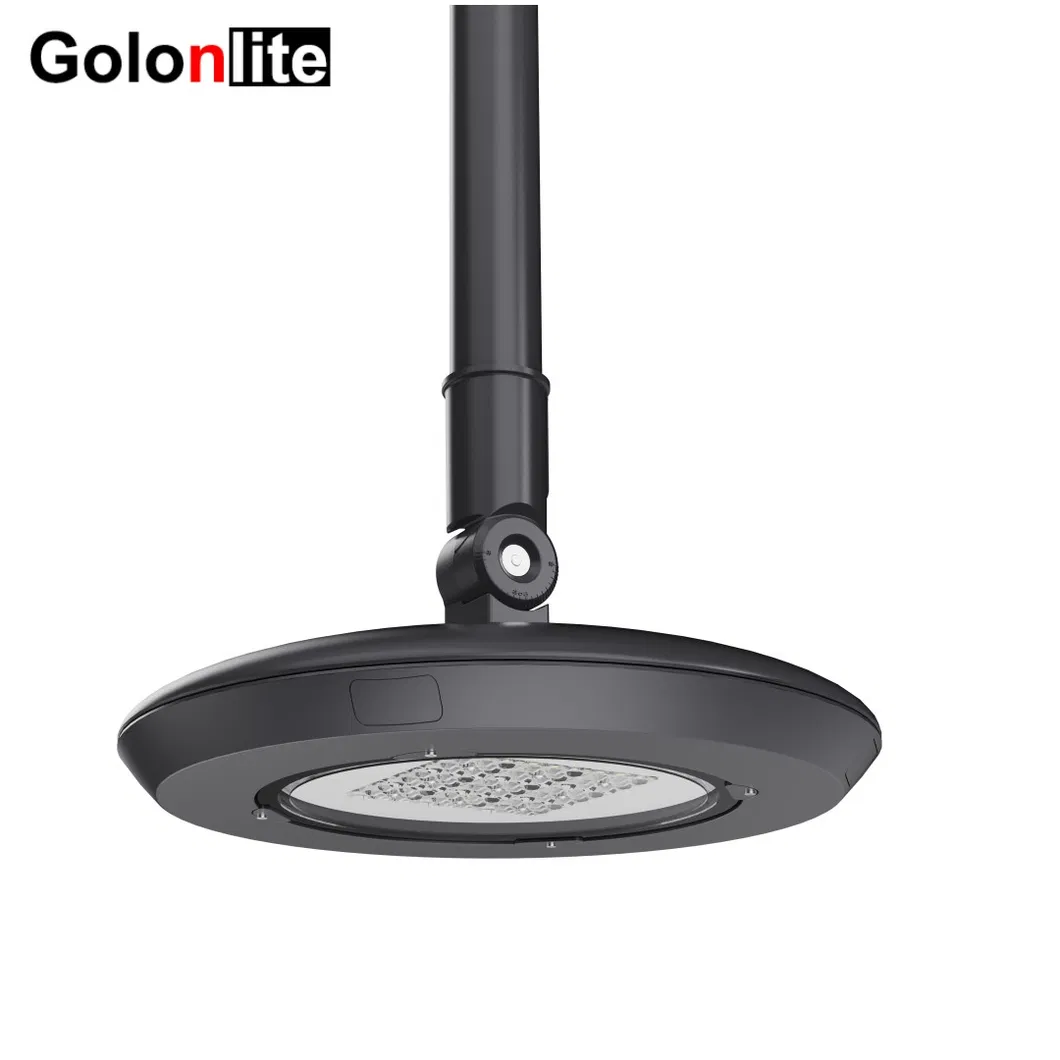

Details 7

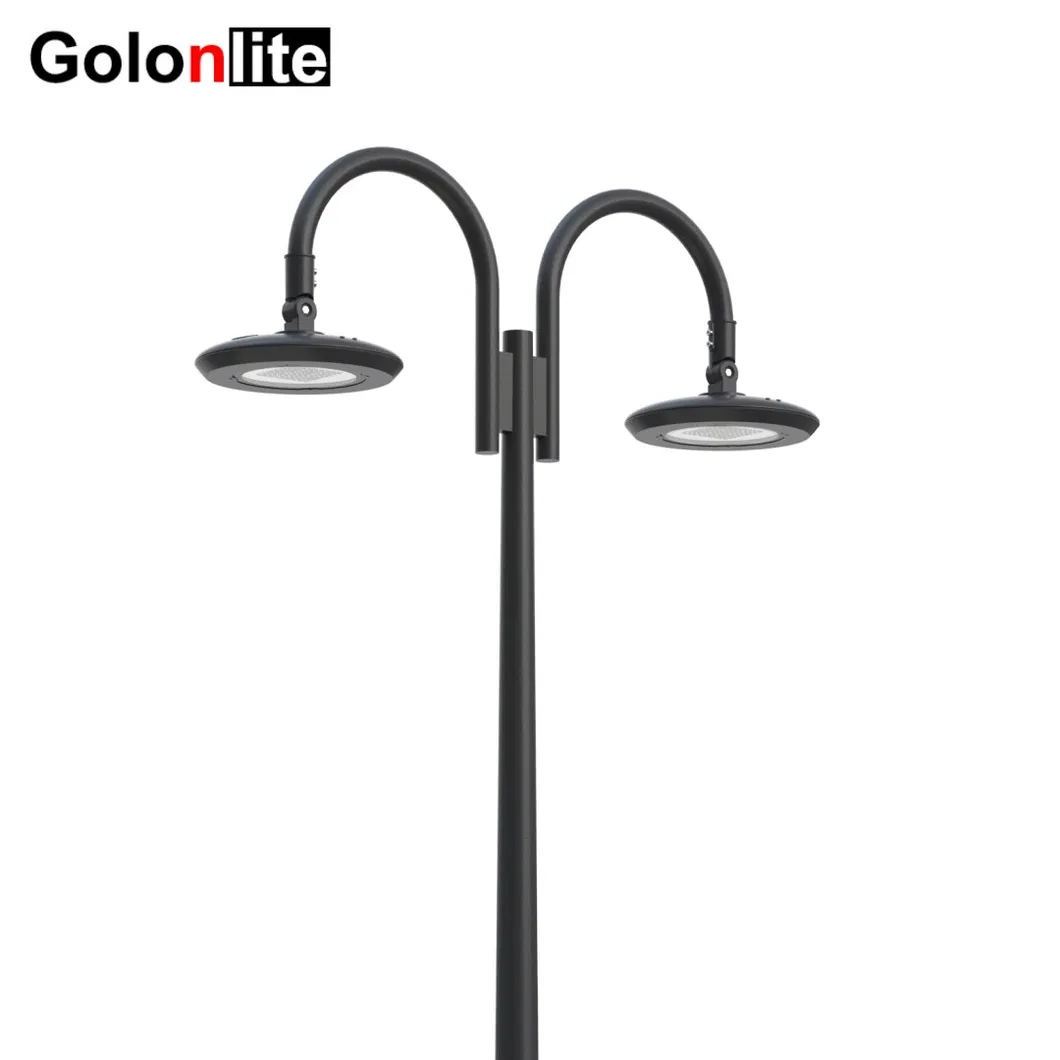

Details 8

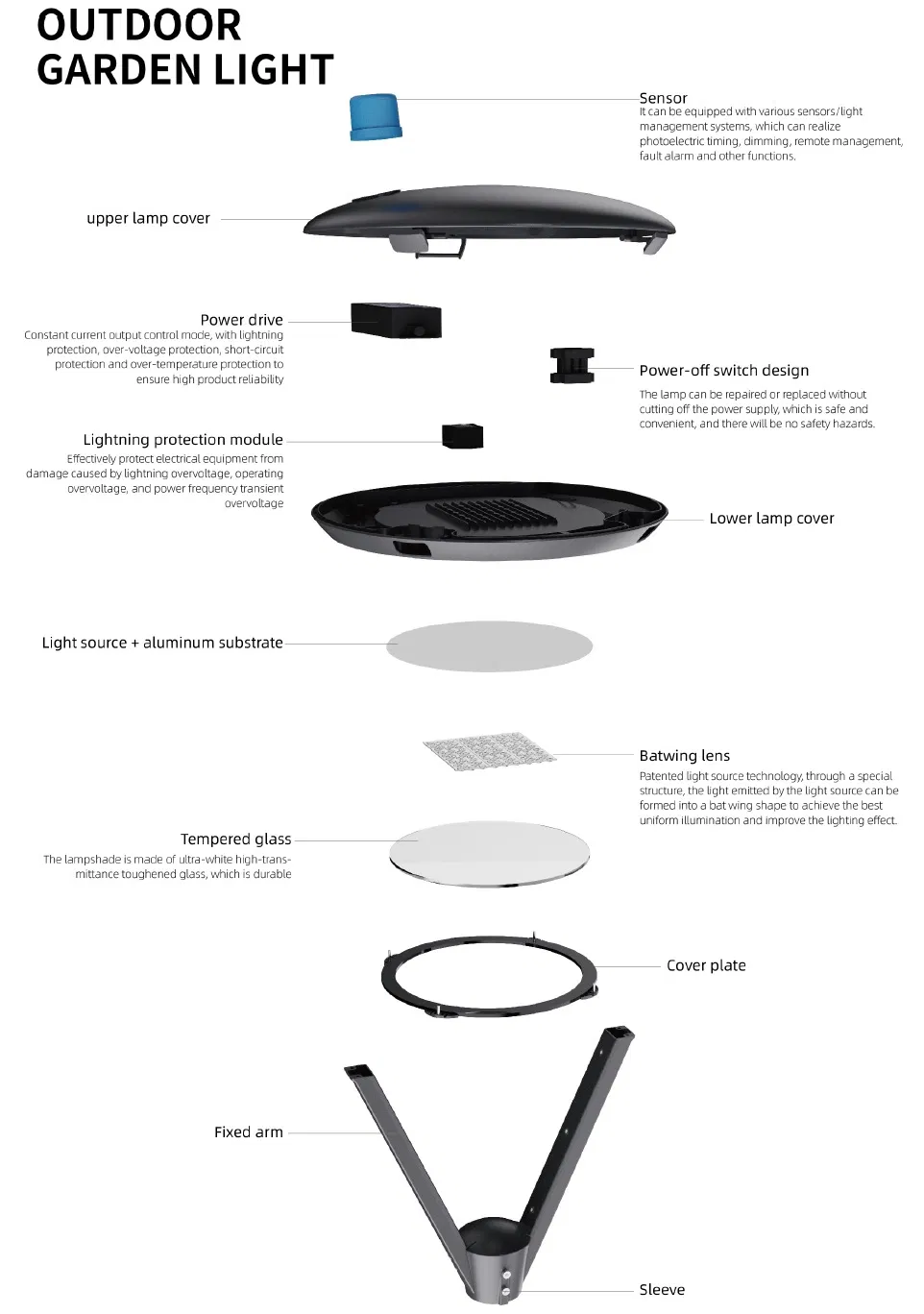

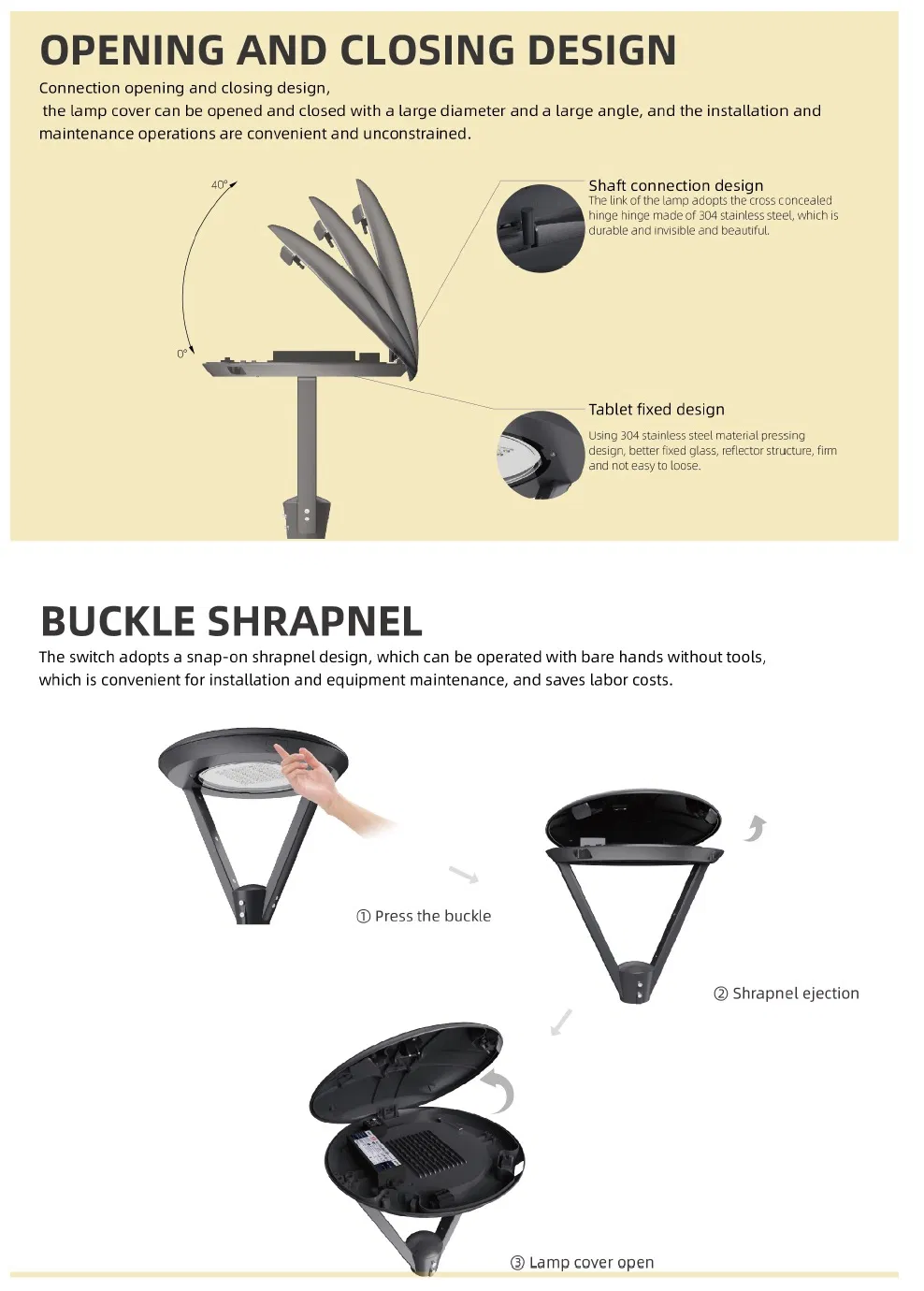

Technical Drawing Installation Guide
📱

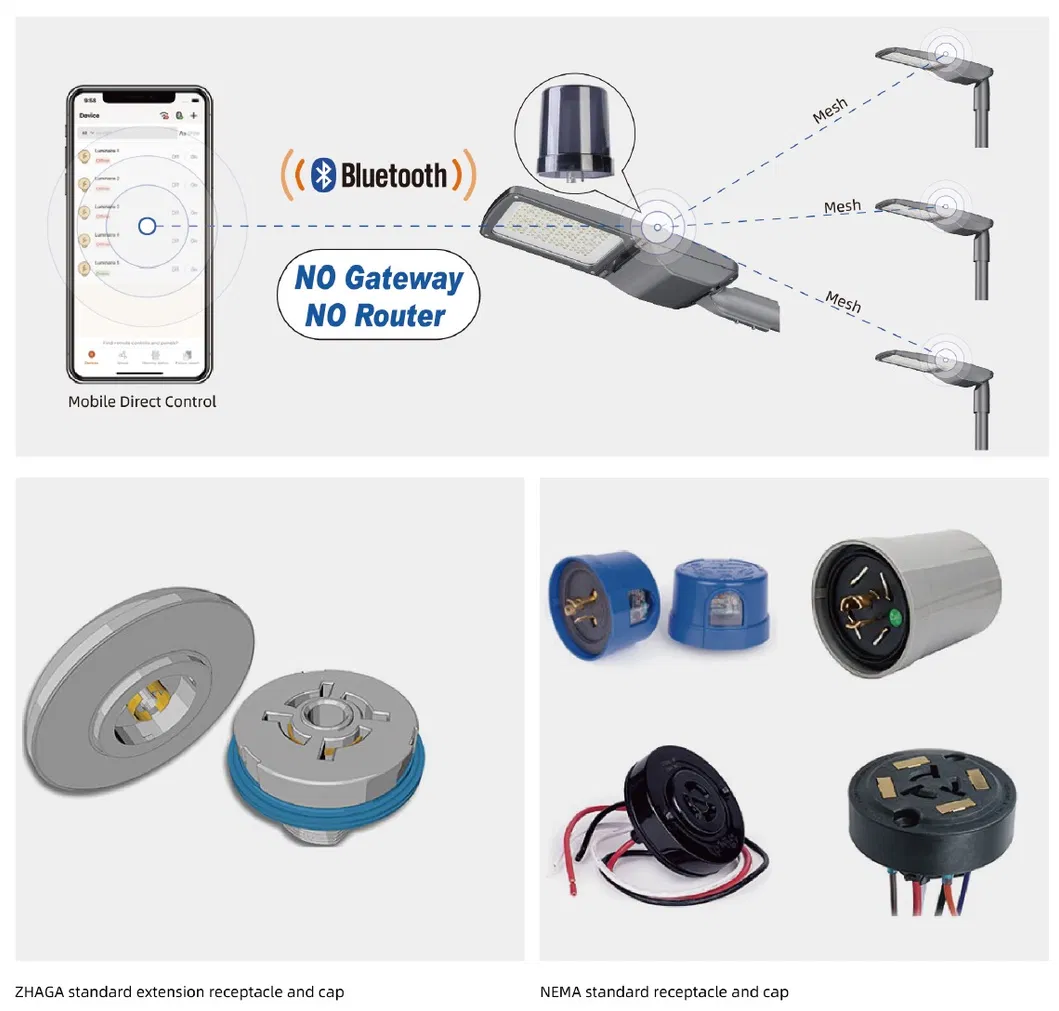

Smart Control System

System Capabilities:

  • Remote switch on/off and dimming.
  • Group controlling and status monitoring.
  • Real-time electricity consumption reports.
  • Fault alarm and interval status reporting.
Smart Control
🛣️
Applications

Ideal for urban roads, highways, industrial areas, residential zones, sidewalks, parking lots, schools, gardens, and parks.

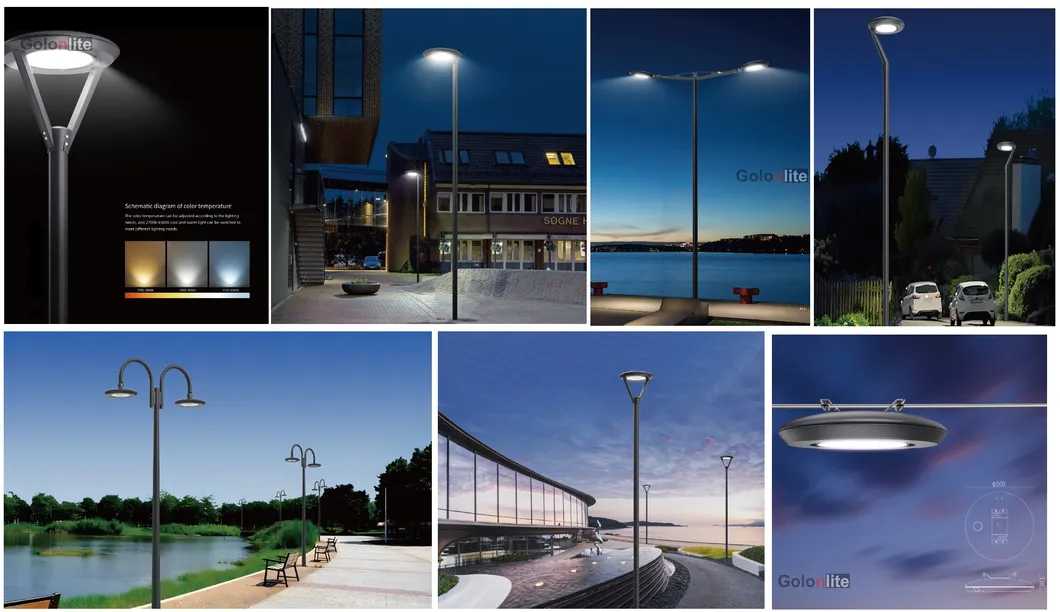

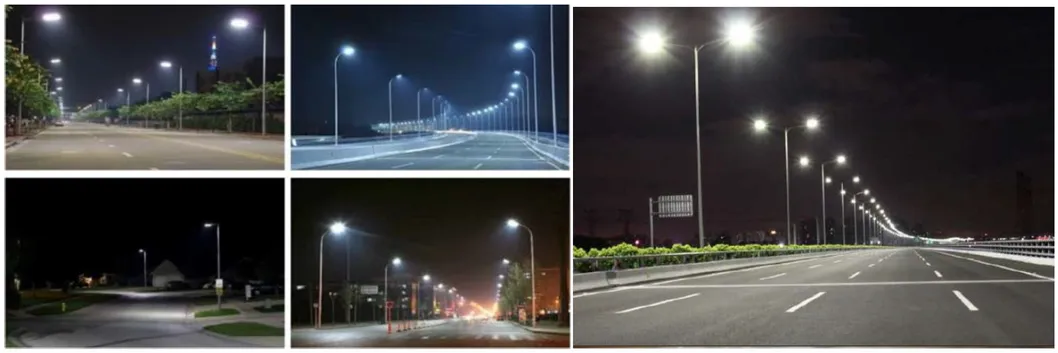

Road Application Area Application
❓
Frequently Asked Questions
What is the maximum luminous efficiency?
The lighting fixtures offer a high lumen efficiency range between 170Lm/W and 180Lm/W, providing superior energy savings.
What kind of maintenance does this street light require?
The product features a tool-free opening design, which allows for quick access to internal components, making maintenance extremely easy and cost-effective.
Does it support smart city integration?
Yes, it supports various smart control options including LoRaWAN, Zigbee, and NEMA sockets (3/5/7 pins) for photocell sensors and centralized management.
Is the light protected against weather and surges?
The light is rated IP66 for waterproofing and IK08 for impact resistance. It also includes Surge Protection Devices (SPD) available in 6KV, 10KV, or 20KV options.
What is the standard warranty provided?
We provide a standard warranty of 5 to 7 years depending on the specific configuration and project requirements.
Can I get a lighting simulation before purchasing?
Yes, we offer free Dialux lighting simulations and IES files to help you design the perfect lighting solution for your specific road or area.
