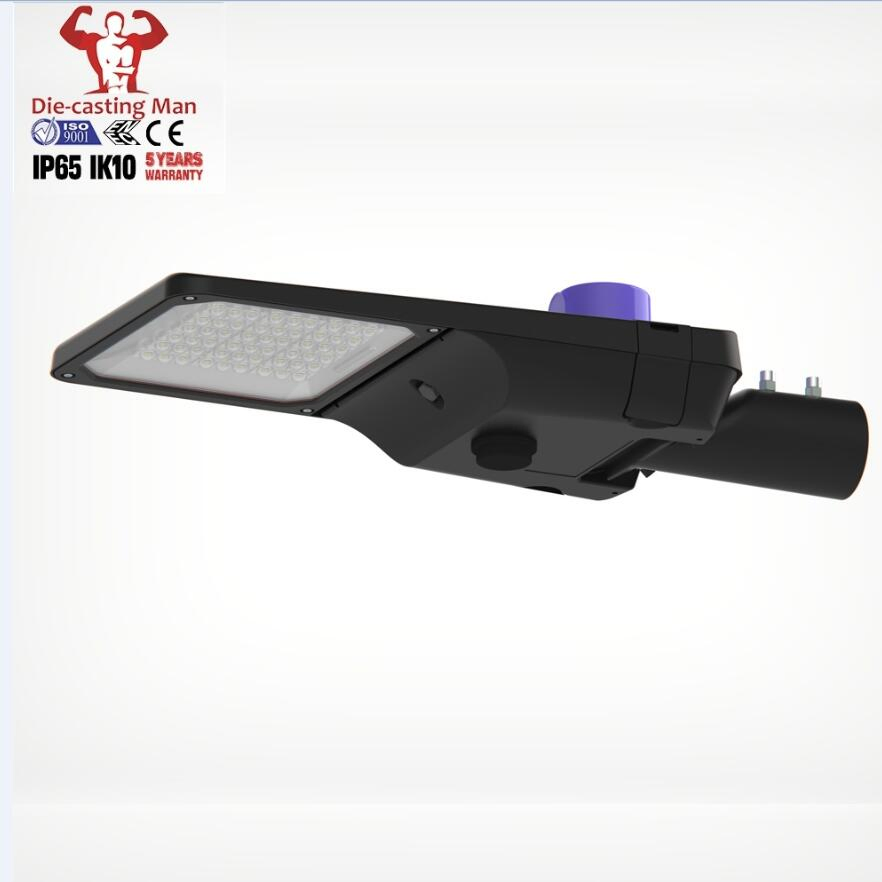

5 Year Warranty Smart Zigbee/Lora/IoT LED Garden Street Lamp Road Street Lighting

Customization: Available
Light Source: LED Light
Color Temperature(CCT): Warm White

Product Description

i

Basic Information

Model NO.
YASL-29
Material
Die Casting Aluminum
Lamp Power
120W (Range 30-240W)
Power Supply
AC 90-305V
Average Life
50000h
IP Rating
IP66
Certification
CE, RoHS, ENEC, CB
Installation
Horizontal & Vertical

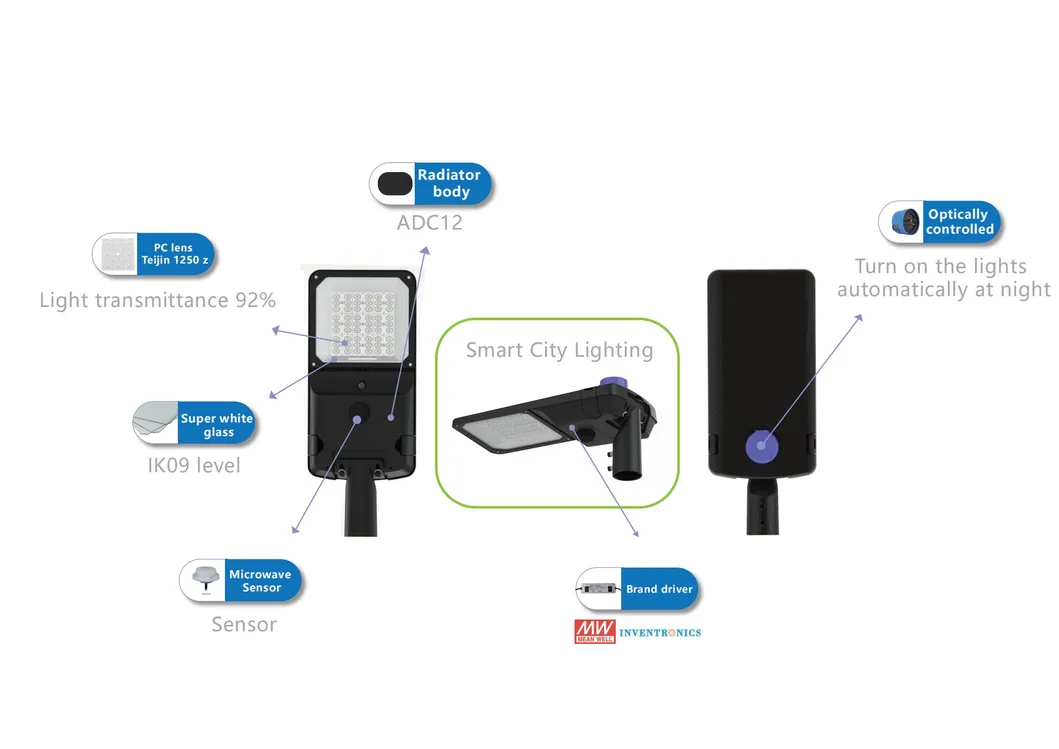

Product Features

The YASL-29 series street lights provide a high-performance lighting solution with a 5-year warranty. These fixtures are designed for durability and versatility in various outdoor applications.

  • Class I or Class II electrical protection

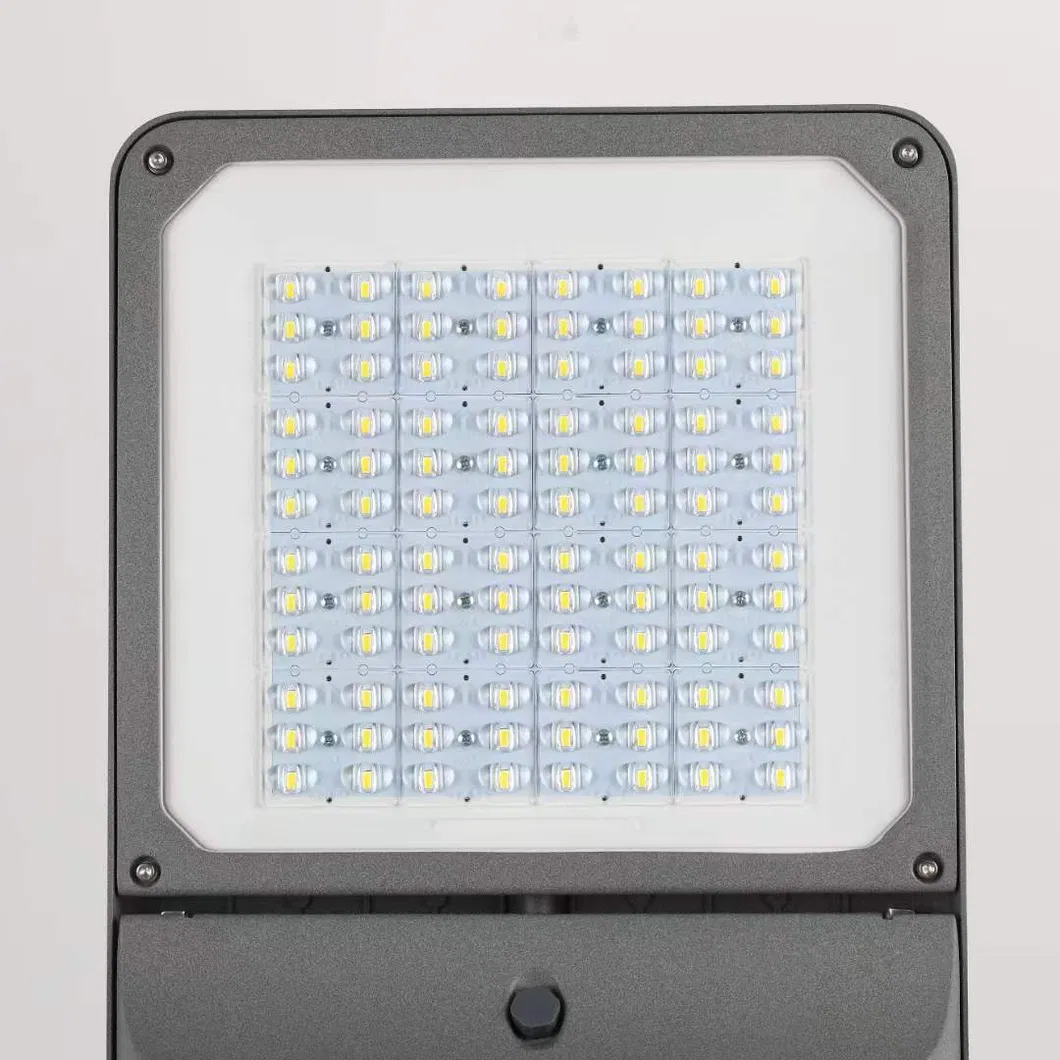

  • High-quality SMD 3030/5050 LEDs with Ra > 70
  • IP66 waterproof and IK09 impact resistance
  • Spigot tilted from -15° to +15° for flexible installation
  • Operating temperature: -40°C to +55°C

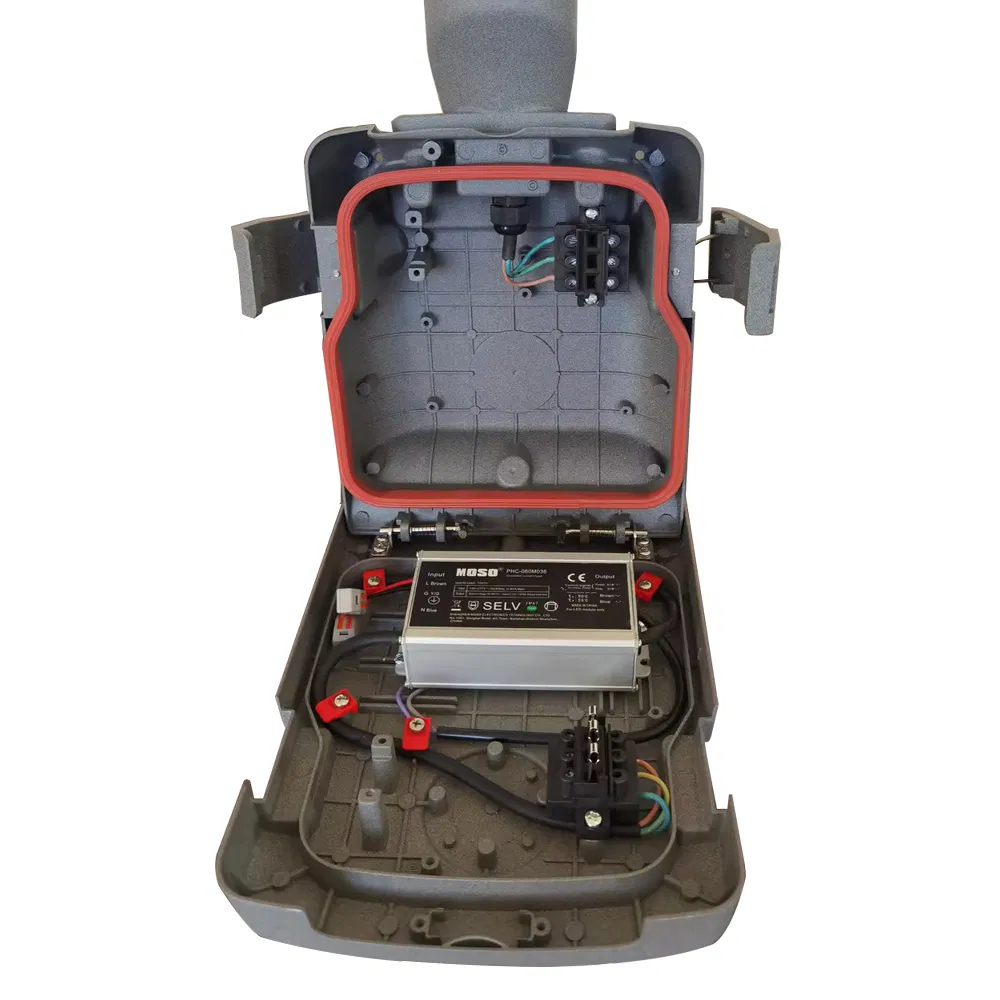

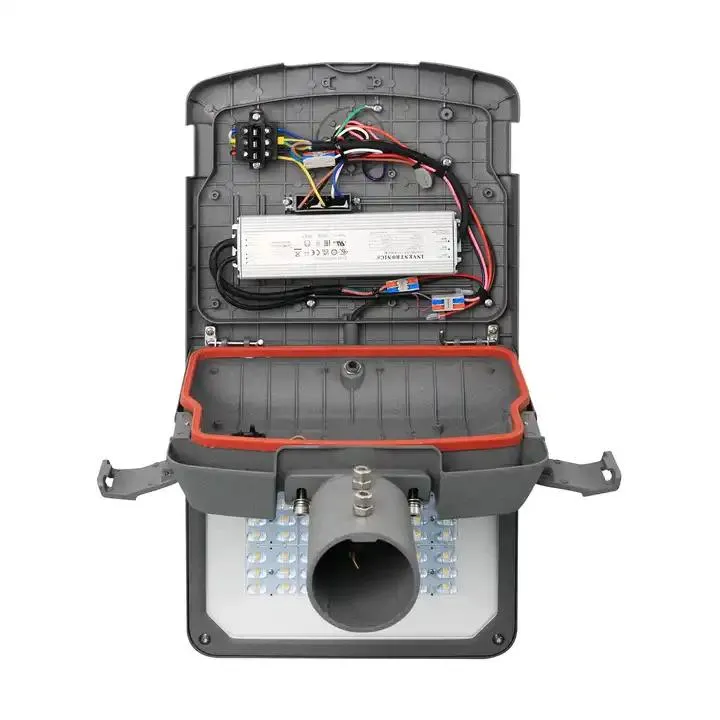

  • Tool-free maintenance with automatic power disconnector upon opening
  • Compatible with Time control, Dali, Photocell, and Microwave sensors

Technical Specifications

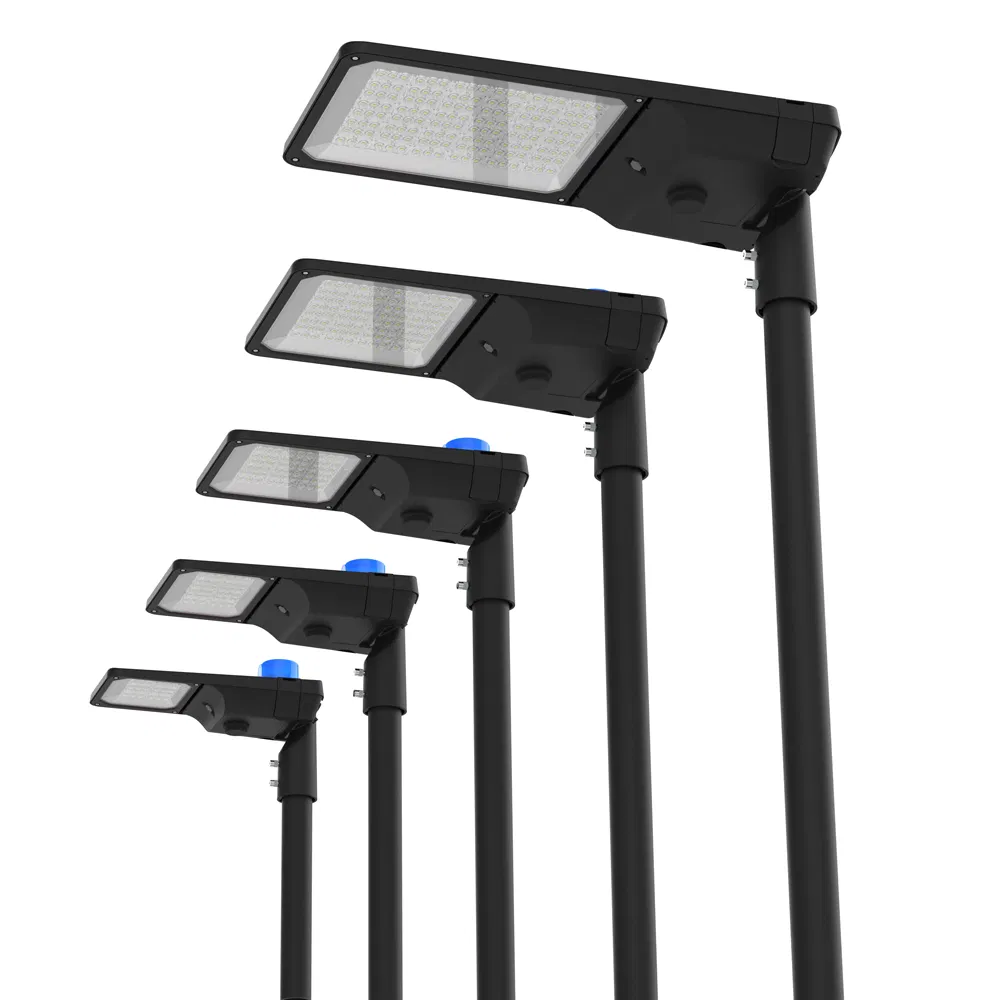

Product Code YASL-29-40 YASL-29-60 YASL-29-100 YASL-29-160 YASL-29-240
Lamp Power 30~60W 50~90W 80~140W 130~200W 200~300W
Installation Height 3-6m 4-8m 6-10m 8-14m 12-14m
Product Size (mm) 576x209x89 593x263x89 646x263x89 709x315x89 812x315x89
Net Weight 3.8kg 4.1kg 4.6kg 7.4kg 9.5kg
Material Housing: ADC12; Cover: Toughened Glass; Screws: 304 Stainless
📷

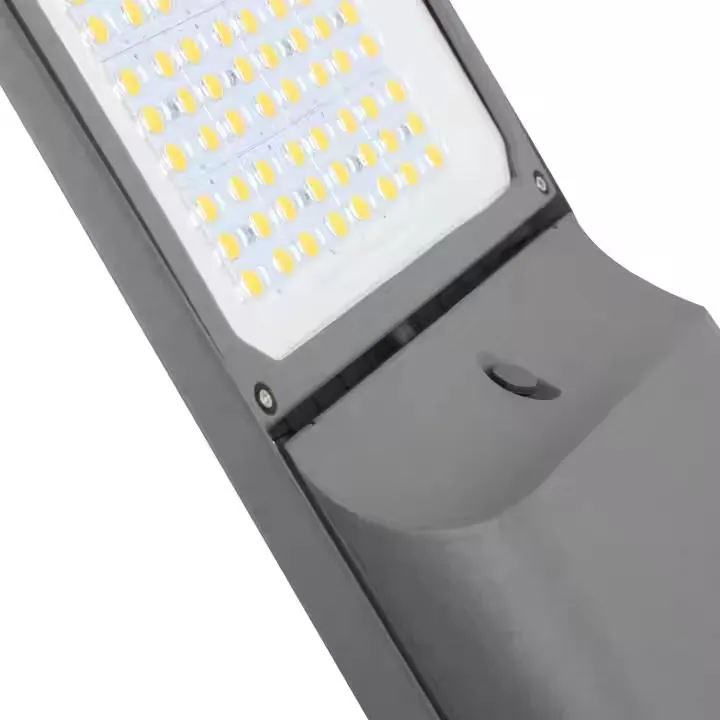

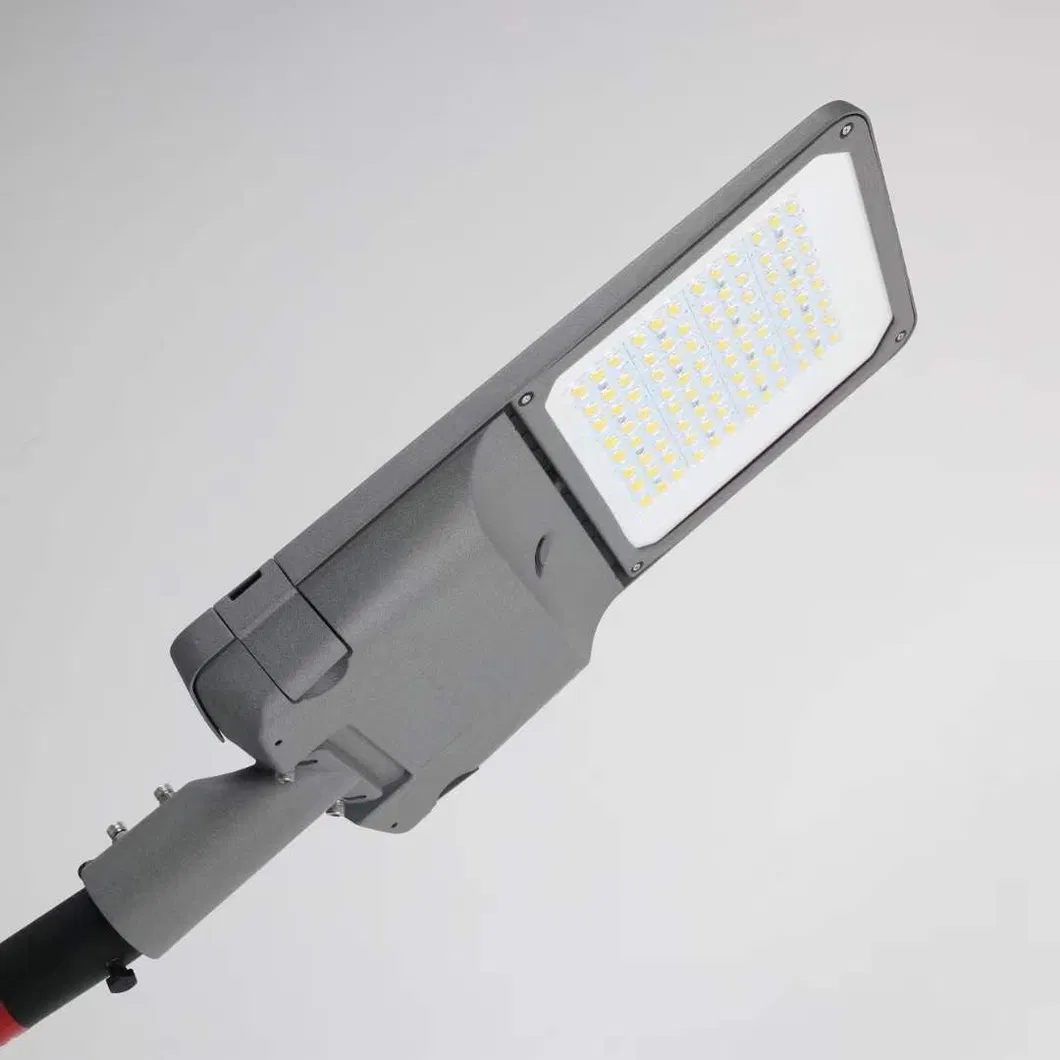

Product Gallery

📋

Manufacturing Excellence

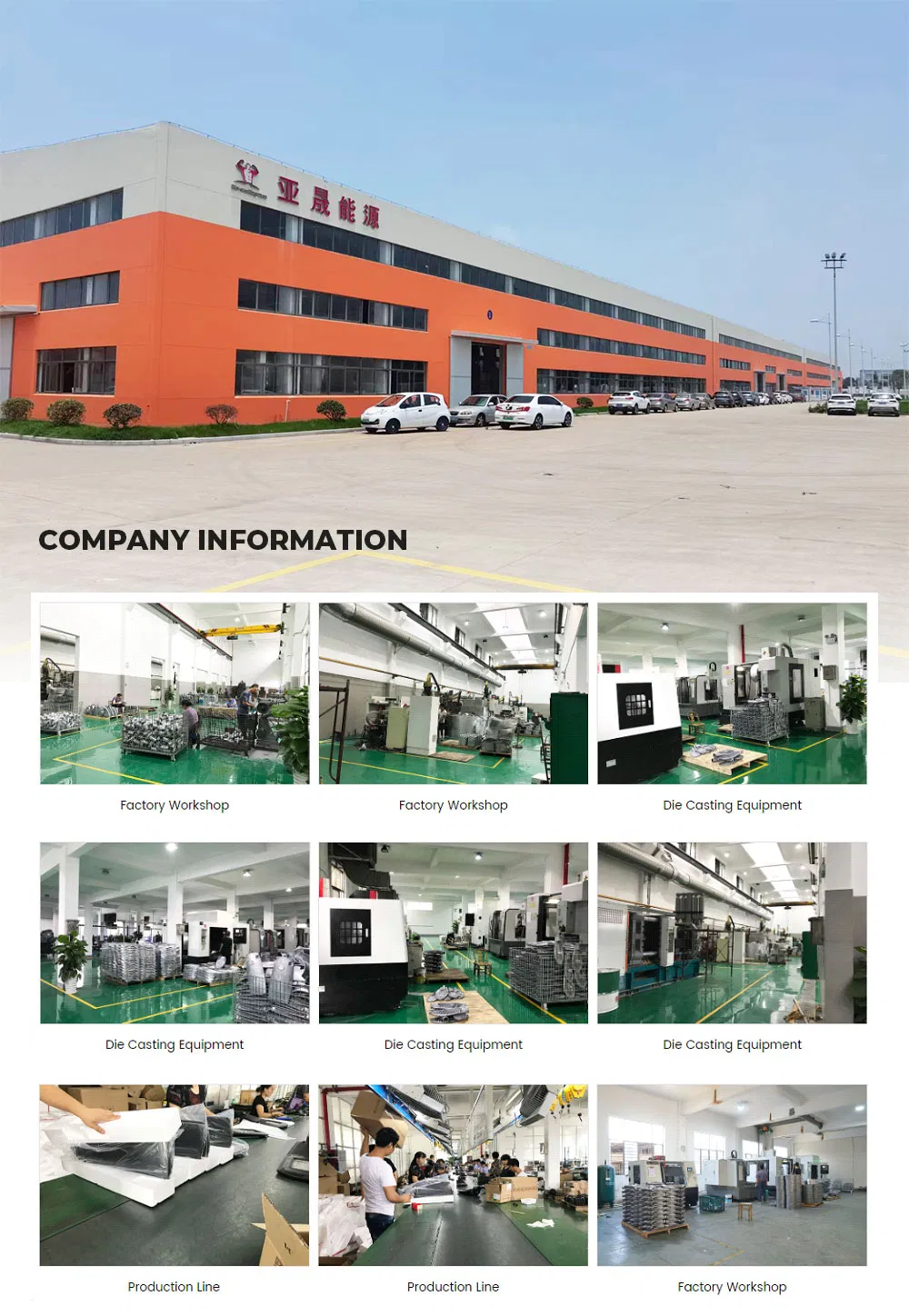

Established in 1996, our facility specializes in the design, development, production, and testing of high-quality lighting products. We offer a comprehensive range of solutions including street lights, high bays, and OEM die-casting services.

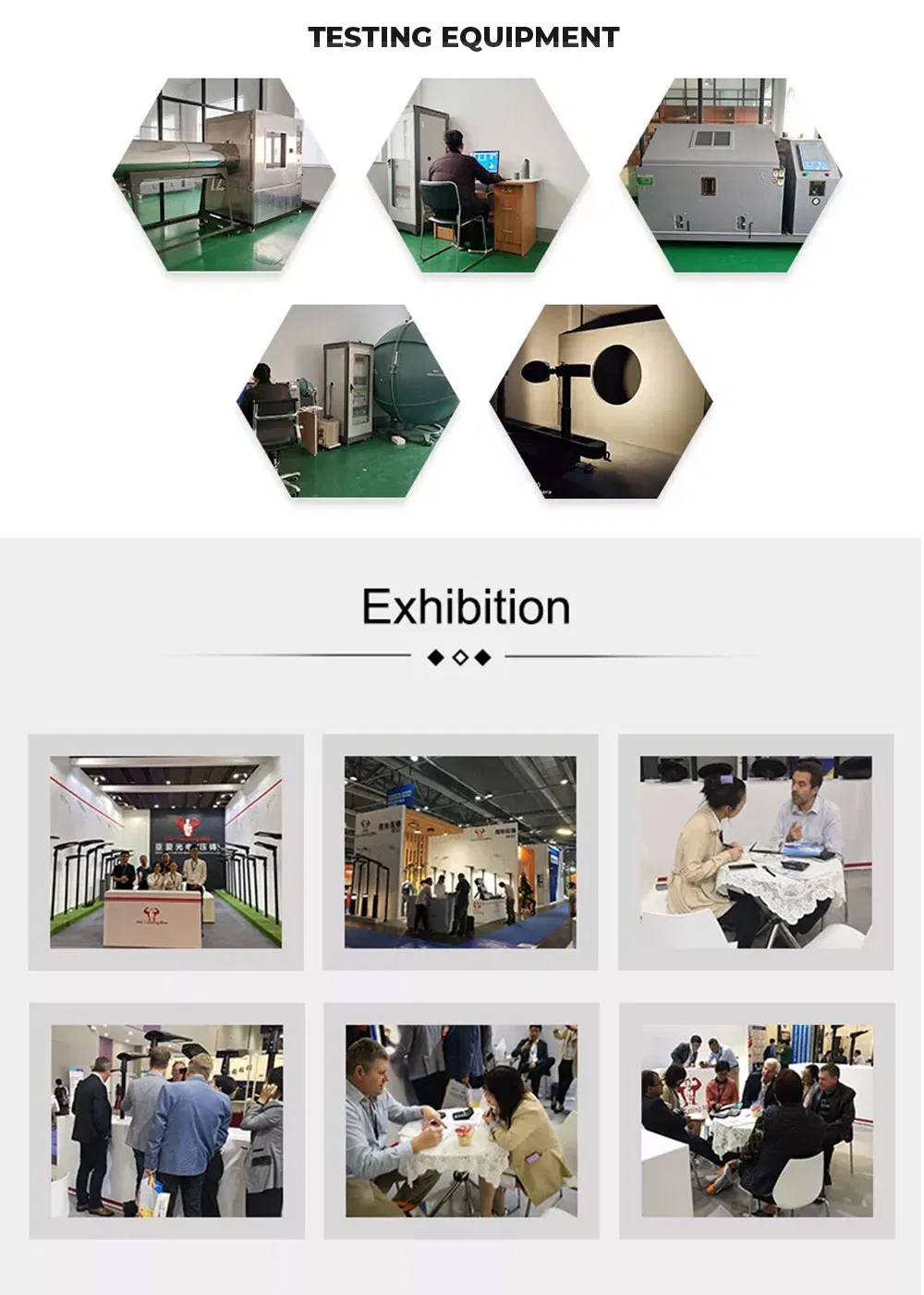

All products are engineered with EU requirements in mind and undergo rigorous performance testing in recognized laboratories to ensure long-term reliability and affordability.

?

Frequently Asked Questions

What is your MOQ requirement?
We accept 1-5 pieces for samples. For mass production, the standard MOQ is 100 pieces, but we can accept smaller quantities for your first order.
What kind of warranty do you offer?
We offer a 5-year guarantee for our products, with a rated lifespan of 50,000 hours.
Can I customize the LED chips and drivers?
Yes, we can use specific LED chip brands or drivers based on your project requirements.
Is it possible to purchase only the empty housing?
Yes, we sell empty die-casting houses for customers who prefer to assemble their own modules.
How do you handle defective goods?
For occasional defects, we provide free replacements with your next order. If the rate exceeds 1%, we provide components like drivers, SPDs, or PCBs for maintenance.
Can I place my company logo on the housing?
Yes. We offer screen printing (no MOQ) or die-casting logo options (MOQ 1000 pieces).
