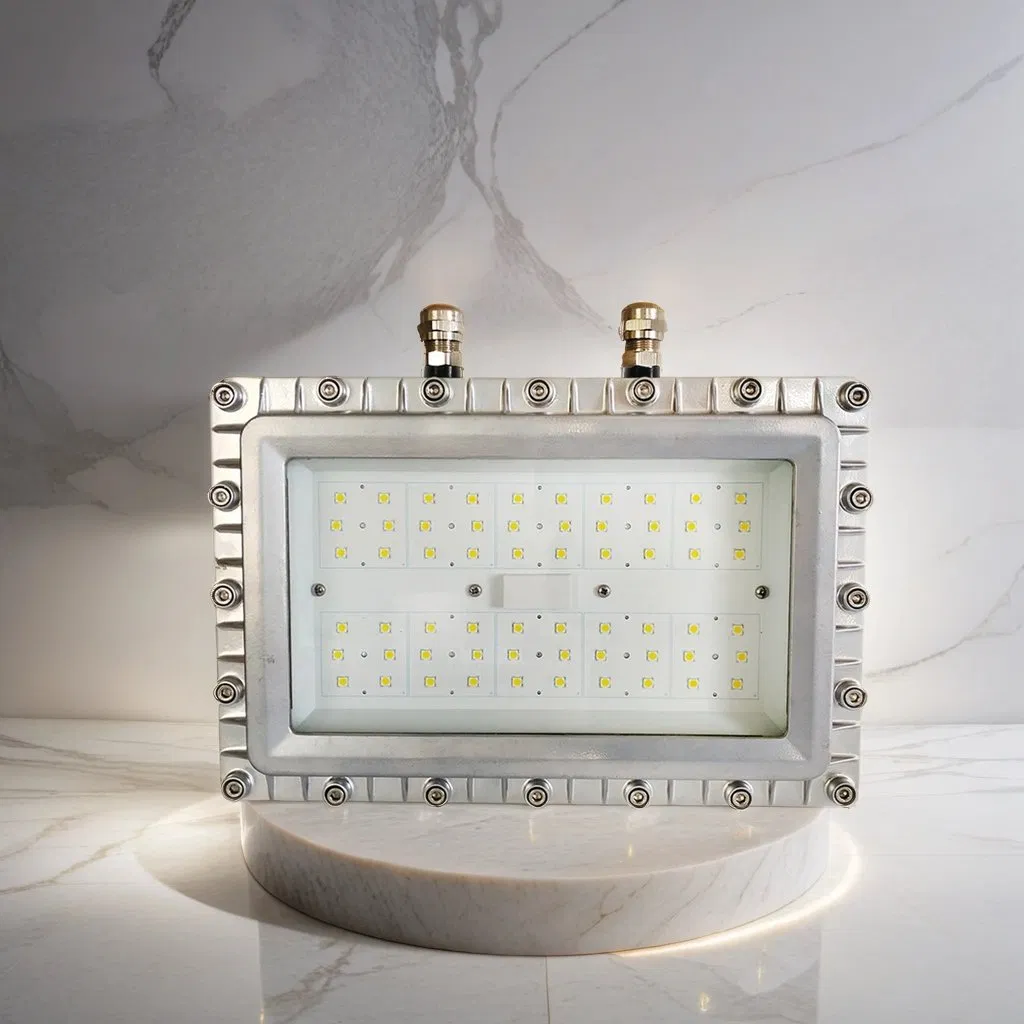

Cappy Light
1 / 5
✓ Application Scope: Zone 1, 2 & Zone 21, 22
✓ Lighting Quality: Instant on crisp white light output
✓ Performance: High efficiency drivers and LEDs provide low cost operation in harsh and heavy industrial applications

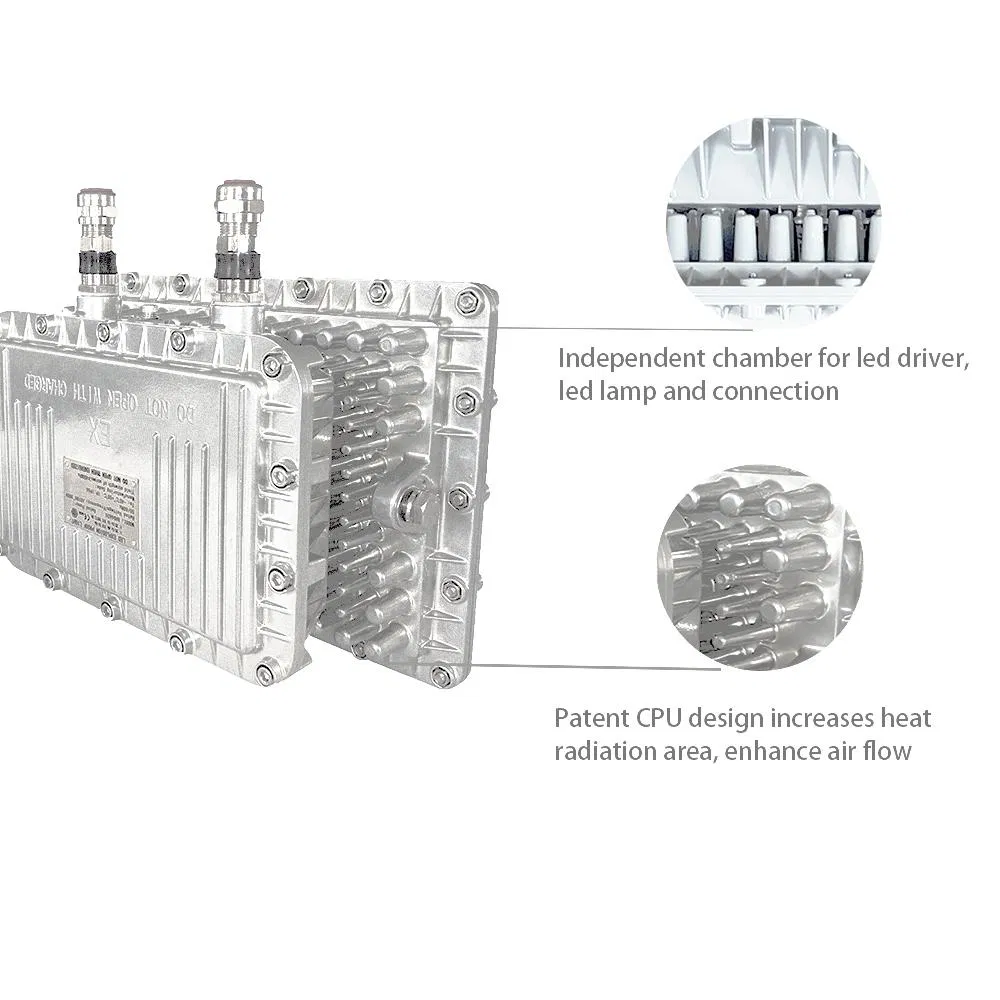

✓ Thermal Design: Isolated LED compartment reduces temperature within driver housing
✓ Beam Flexibility: Multi choice of beam angle for 30°~120°
✓ Approvals: ATEX and IECEx approved for all Zone 1, 2 applications and rated for T6 environments.

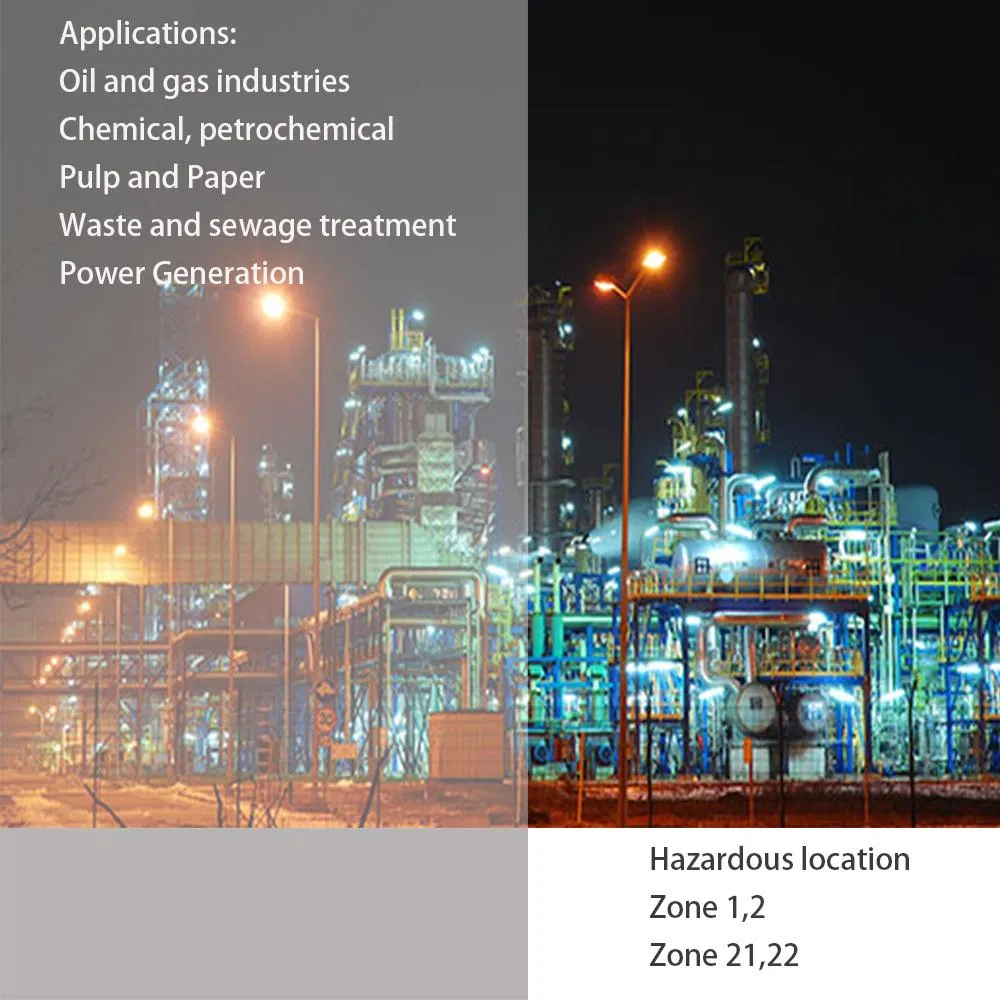

| APPLICATIONS | Hazardous location LED explosion proof lighting fixture; Class I Division 2, Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22. |
| CERTIFICATIONS | ATEX, IECEx certificate issued by TUV, CE, ROHs |

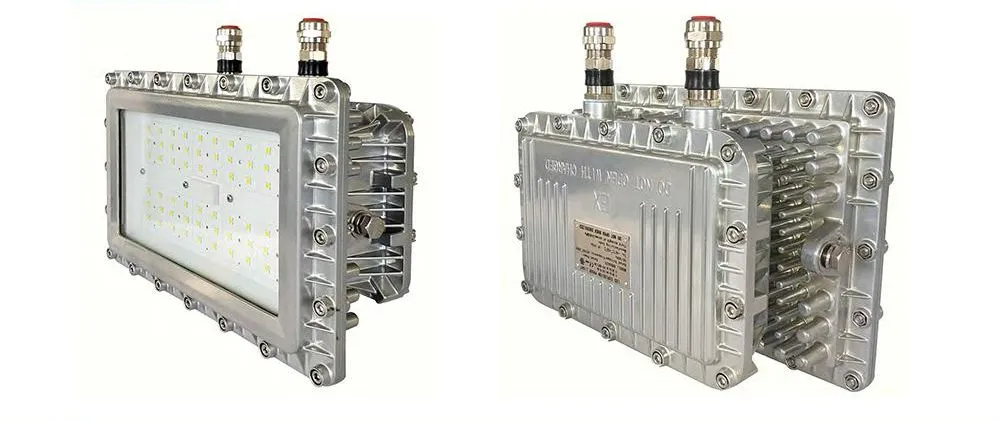

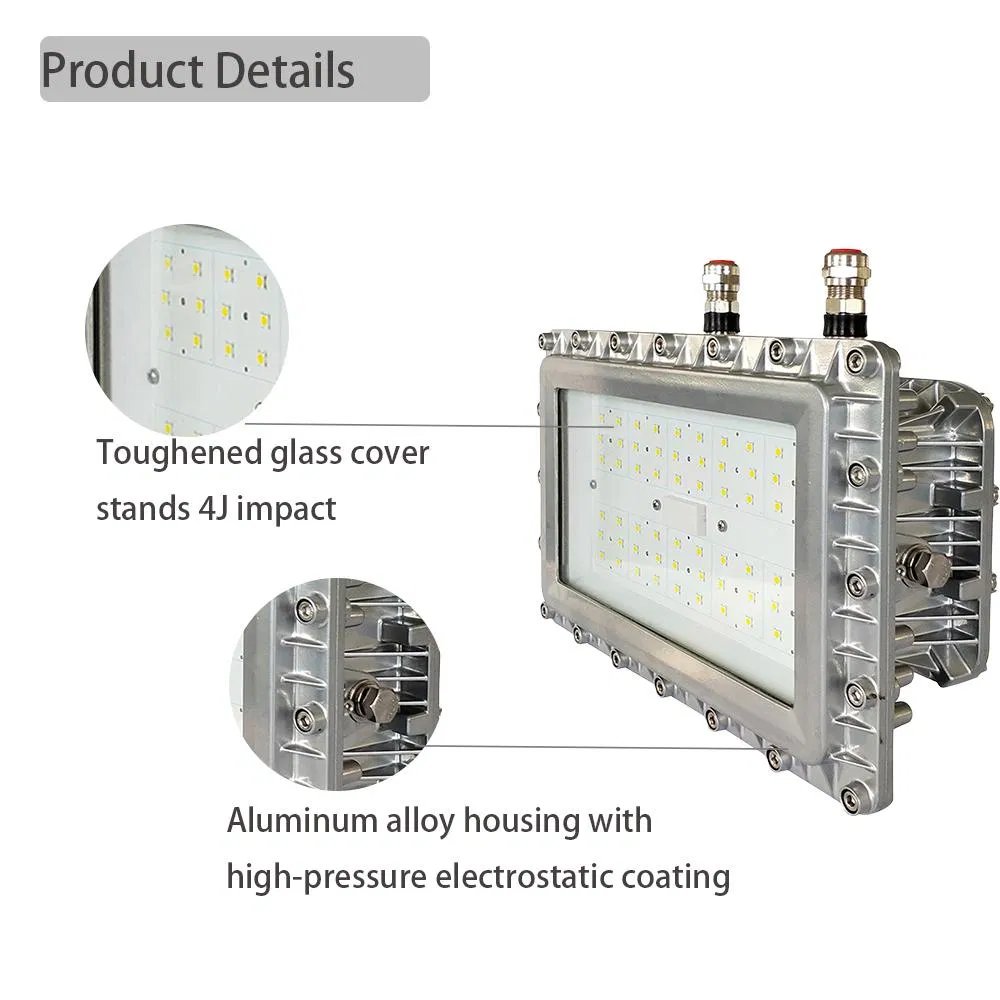

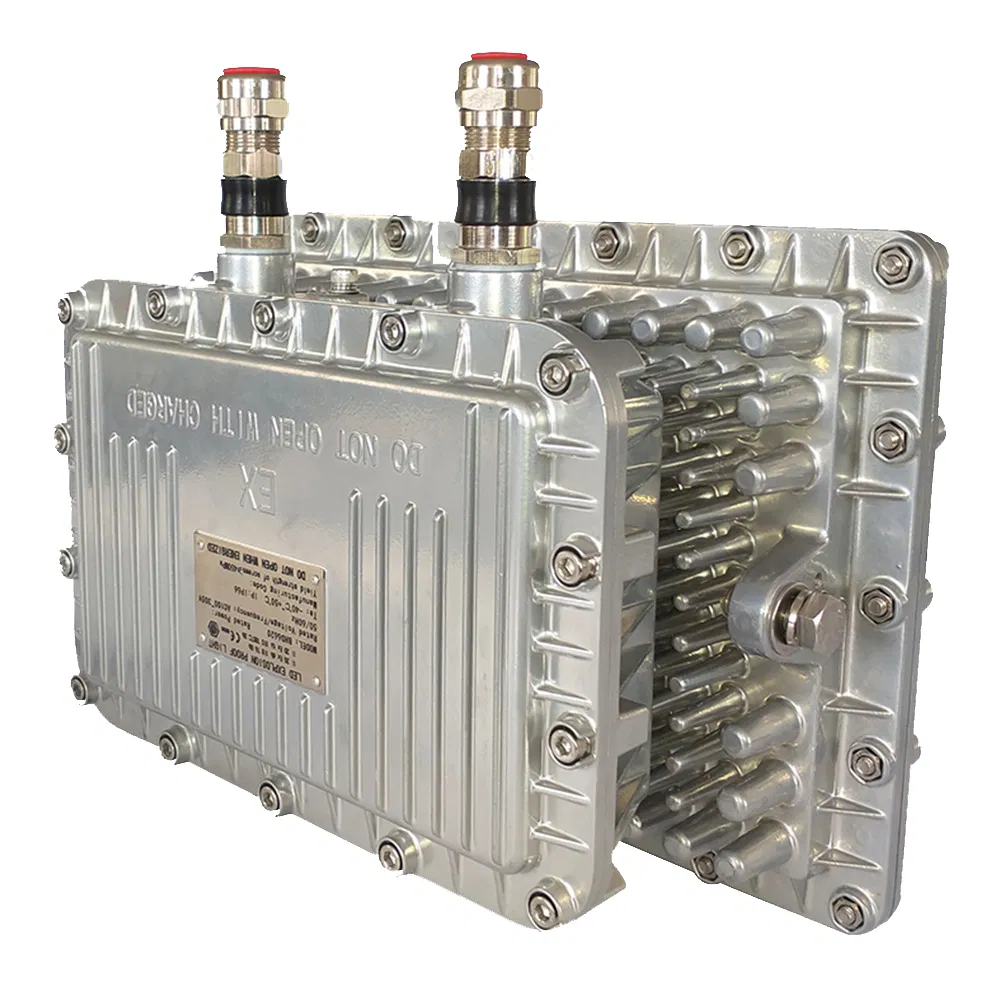

| HOUSING BODY | Aluminum alloy ADC12, WF2 grade with cooling fins |
| LENS | 4mm thick tempered glass & PC reflector 30º 60º 90º 120º; +95% light transmission. |

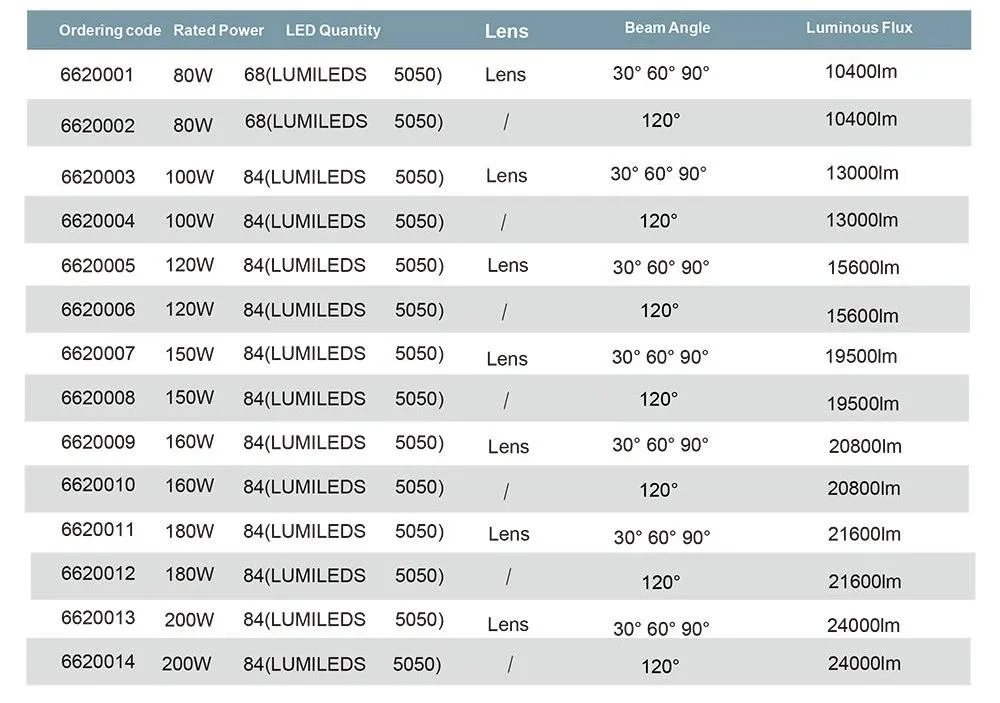

| PERFORMANCE | 12,000 to 24,050+ lumens; Up to 140 lm/w; 80W up to 200W. |

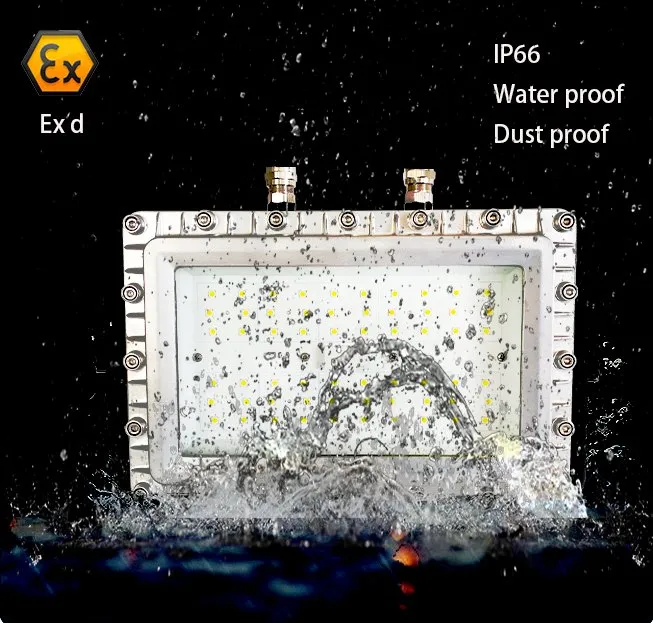

| IP RATING | IP66 & IP67 Rated; Dust tight and water immersion protection. |
| OPERATING TEMP | -40°C to 50°C |
| DIMMING | 1-10V dimming standard, DALI, Triac |
Note: If the user does not follow the above relevant precautions and violates the regulations, resulting in adverse consequences, the user shall be responsible.
