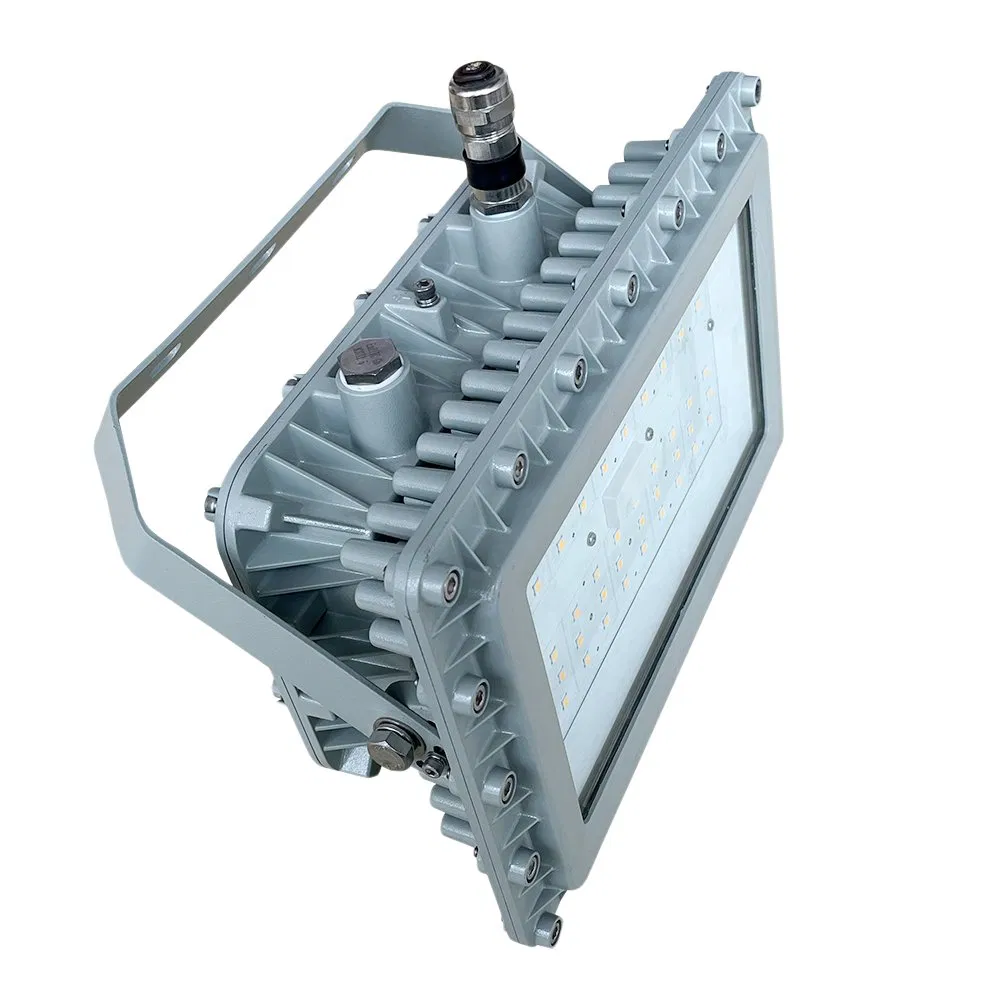

Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
1 / 5
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality
Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality

Explosion-Proof Lights 80W Flood Lamp COB Flood Lighting LED with Good Quality

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
BHD 6620-14
Irradiated Area
≥30m²
Input Voltage
90-305VAC
Power
80W-200W
LED Chips
Osram
Certification
CCC, CE, EMC, LVD, SAA, ATEX, IECEx
Warranty
5 Years
CCT
2700-6500K
Weight
10kg
Application
Zone 1,2 & Zone 21,22
Efficiency
More Than 130lm/W
Package Size
41.00cm * 30.00cm * 22.00cm
Product Description

Atex Anti Explosion Proof Flood Light IP66 Zone 1/2/21/22 Explosion-proof Led Lights

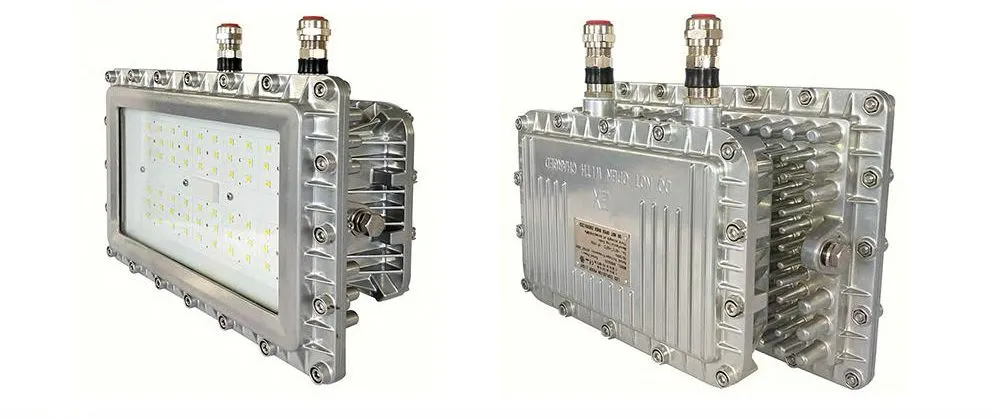

Atex Anti Explosion Proof Flood Light
  • Zone 1, 2, Zone 21, 22
  • Instant on crisp white light output
  • High efficiency drivers and LEDs providing low cost operation in harsh industrial applications
  • Isolated LED compartment reduces temperature within driver housing
  • Multi choice of beam angle for 30°~120°
  • ATEX and IECEx approved for all Zone 1, 2 applications and rated for T6 environments

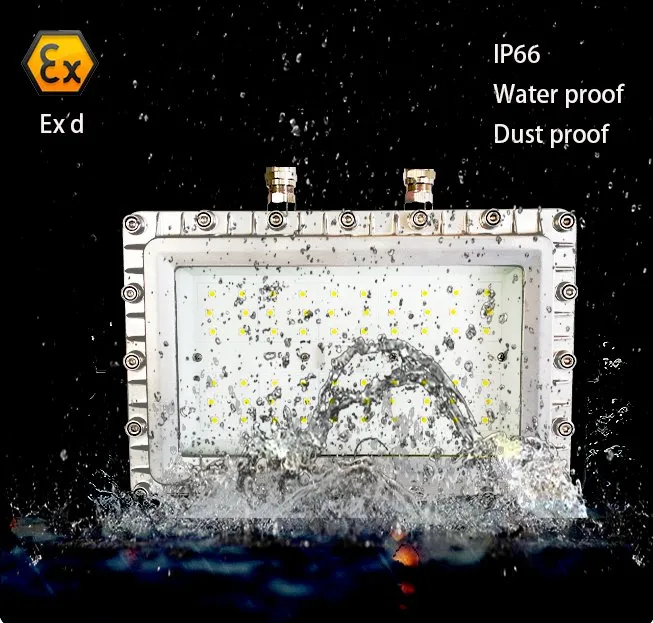

Flood Light View 1

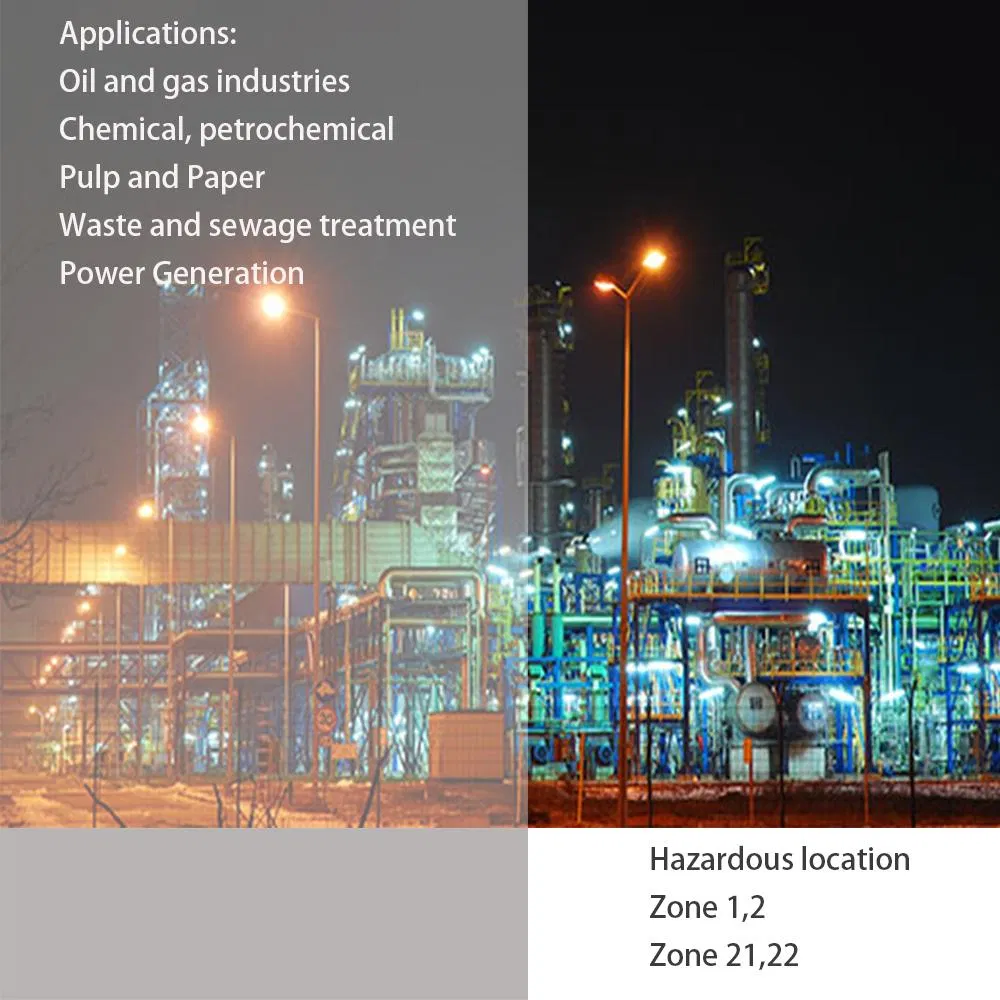

Flood Light View 2
Technical Parameters
APPLICATIONSHazardous location LED explosion proof lighting fixture. Class I Division 2, Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
CERTIFICATIONSATEX, IECEx certificate issued by TUV, CE, ROHs
HOUSING BODYAluminum alloy ADC12, WF2 grade
LENS4mm thick tempered glass & PC reflector 30º 60º 90º 120º, +95% light transmission. Shock and vibrations resistant.
PERFORMANCE12,000 to 24,050+ lumens, Up to 140 lm/w. From 80W up to 200W. L70 (hrs) rated > 65,000.
IP RATINGIP66 & IP67 Dust tight and protected against immersion in water.
MOUNTINGSurface/wall mount standard (adjustable mount bracket included). Pendant kit optional.
TEMPERATURE-40°C to 50°C
DIMMING1-10V, DALI, Triac dimming standard.
Detailed Photos

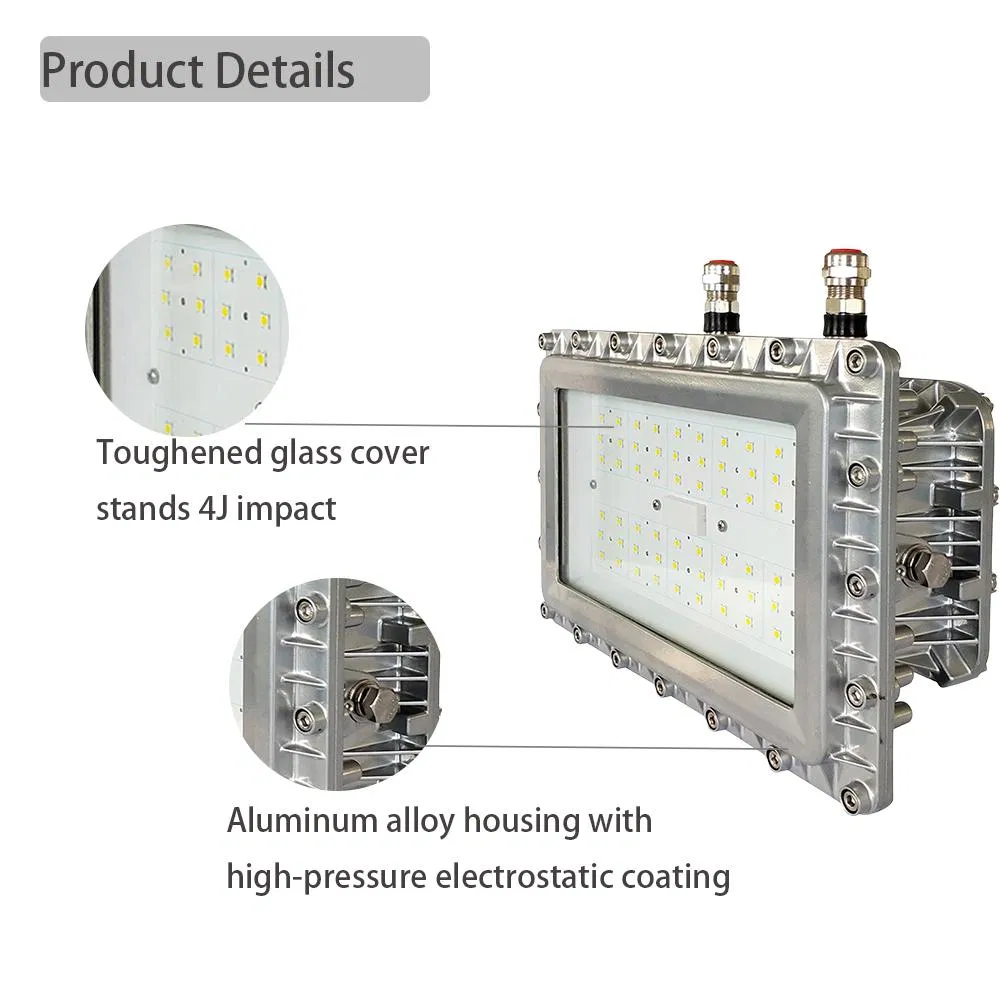

Detail 1

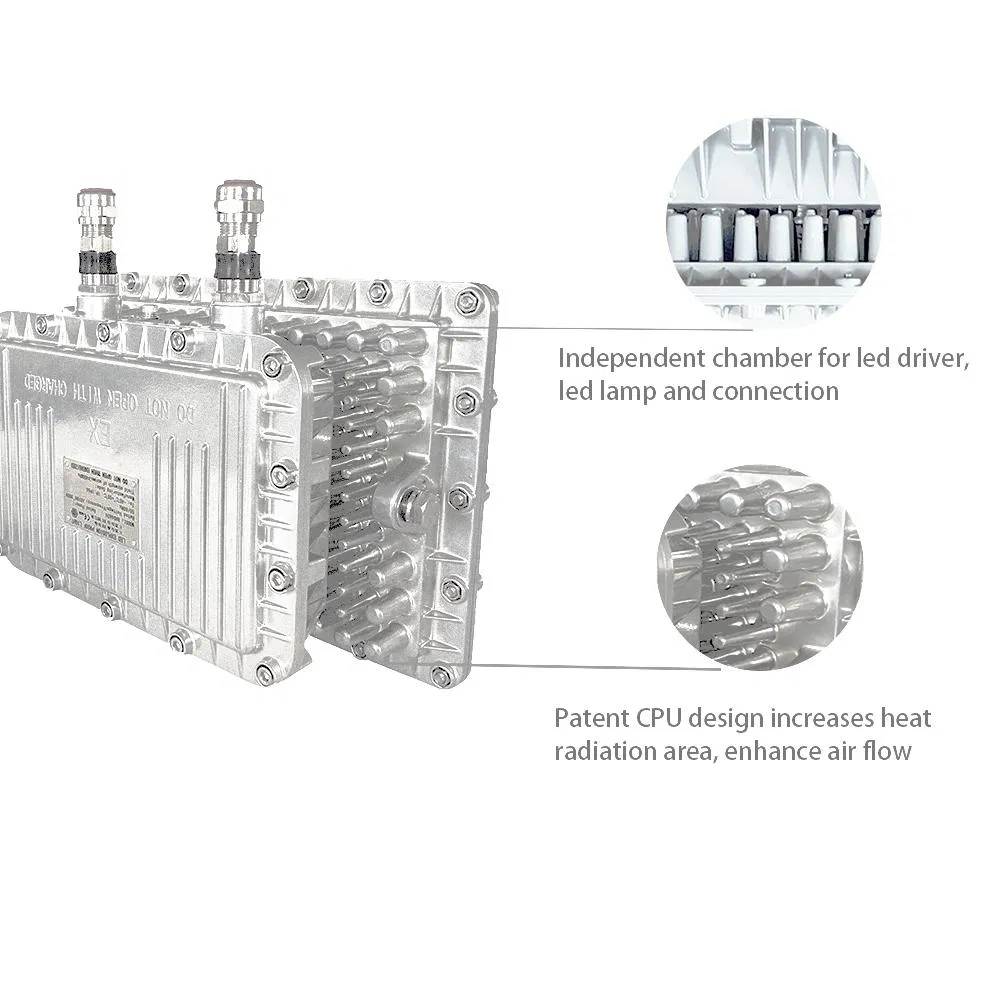

Detail 2
Installation Instructions

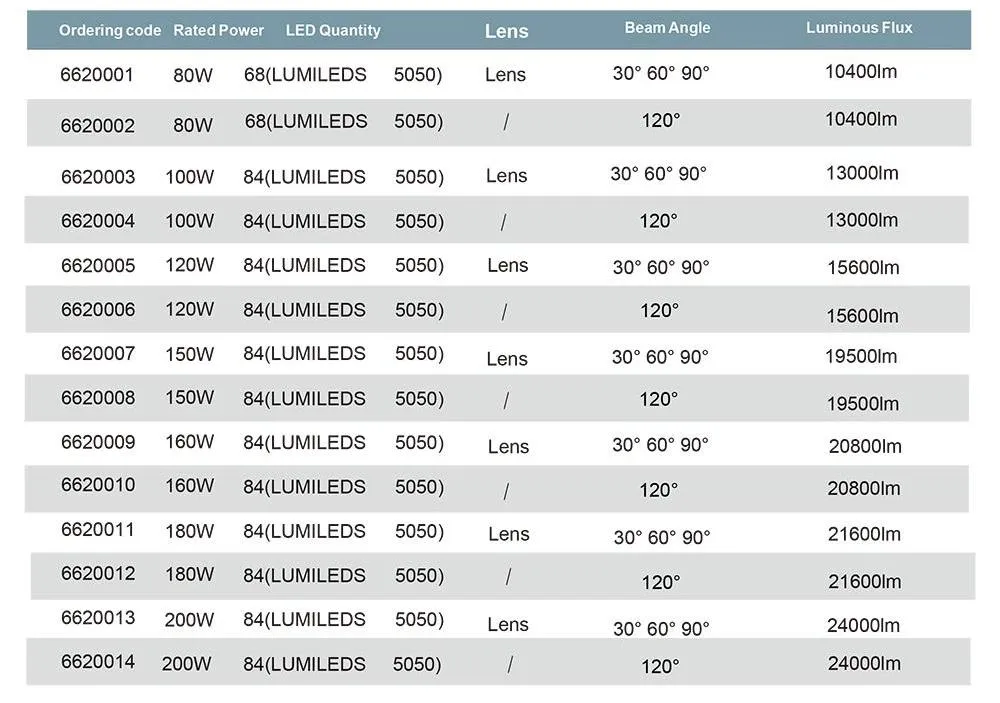

Installation 1

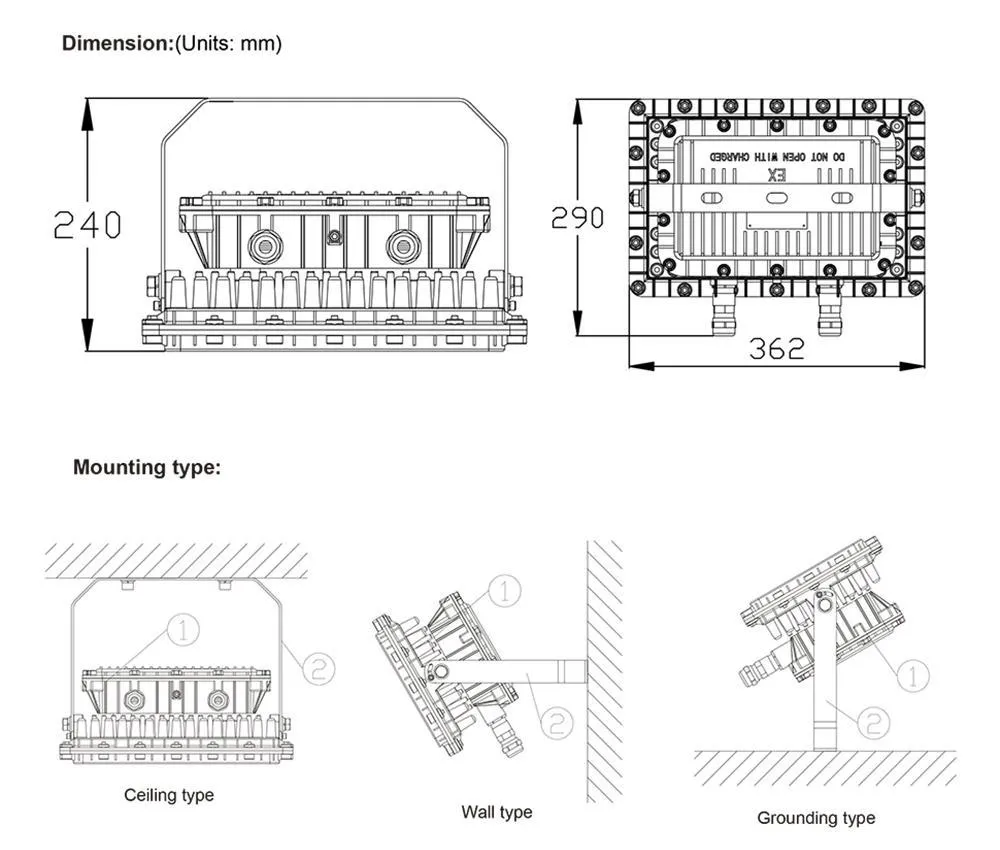

Installation 2

Precautions:

  1. It is strictly forbidden to disassemble with electricity in flammable and explosive places.
  2. Do not damage the explosion-proof surface during installation, and keep it clean. Tighten screws evenly and avoid foreign matter.
  3. Regularly check alarm performance. Repairs must be handled by professionals.

Note: If the user does not follow the above precautions, they shall be responsible for adverse consequences.

Relevant Products
Related Lighting Products
Certifications
ATEX IECEx CE Certification
Frequently Asked Questions
Q1: What is your minimum order quantity (MOQ)?
A1: Our MOQ is 1 pc.
Q2: Are you a trading company or a factory?
A2: We are a factory with a dedicated LED lighting engineering R&D center, providing services from design to production.
Q3: What are your main product lines?
A3: Our business includes explosion-proof industrial lighting, nuclear power lighting, municipal lighting, tunnel lighting, and intelligent lighting control systems for hazardous industries like chemical, petroleum, and mining.
Q4: How can I receive a quotation?
A4: We can provide a product list. For an exact price, please specify the quantity, power, and required luminous flux.
Q5: What certifications do your products hold?
A5: We have CE, ROHS, ATEX, IECEx, and PCEC certificates available for our products.
Q6: Do you offer OEM or ODM services?
A6: Yes, we provide both OEM and ODM services to meet specific client requirements.
