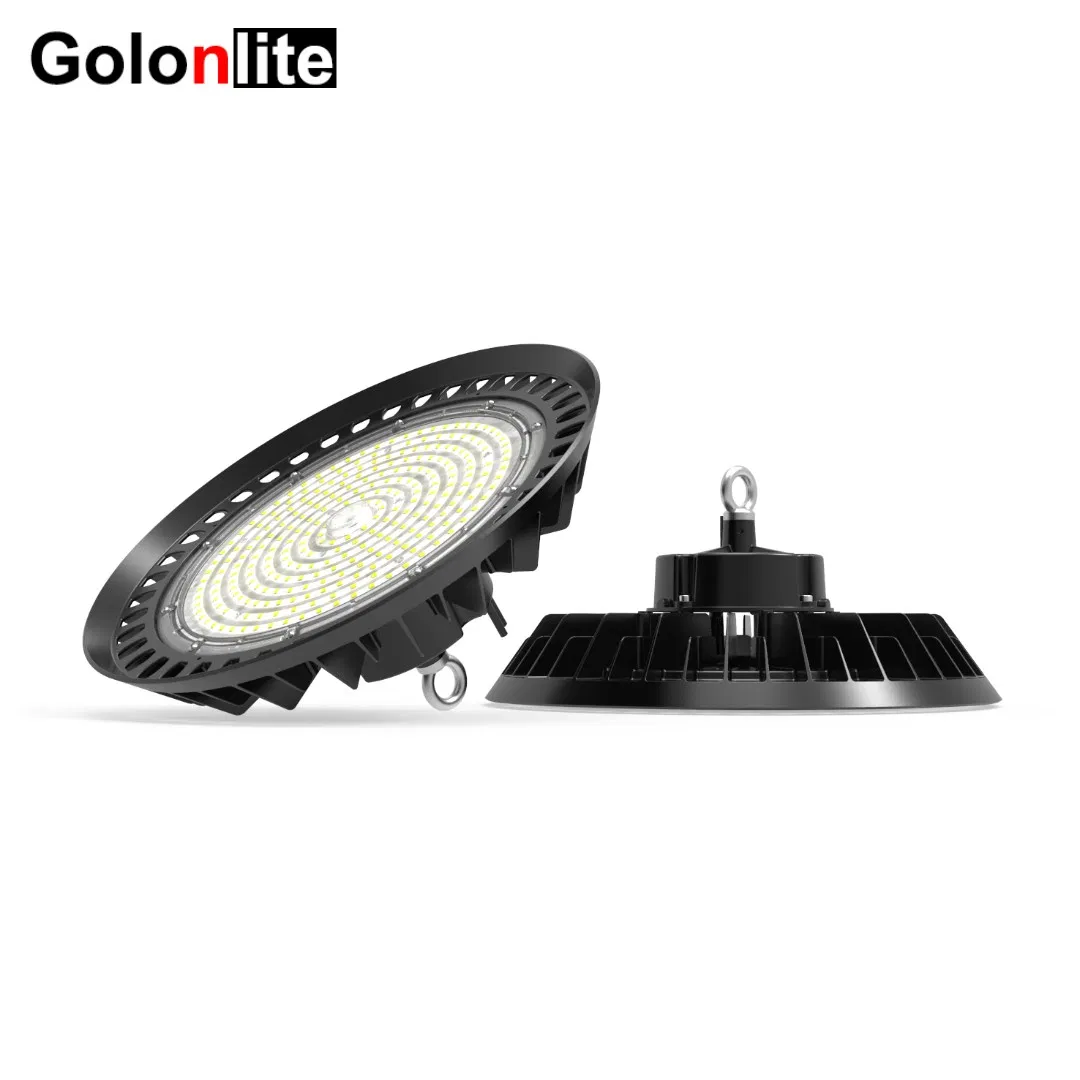

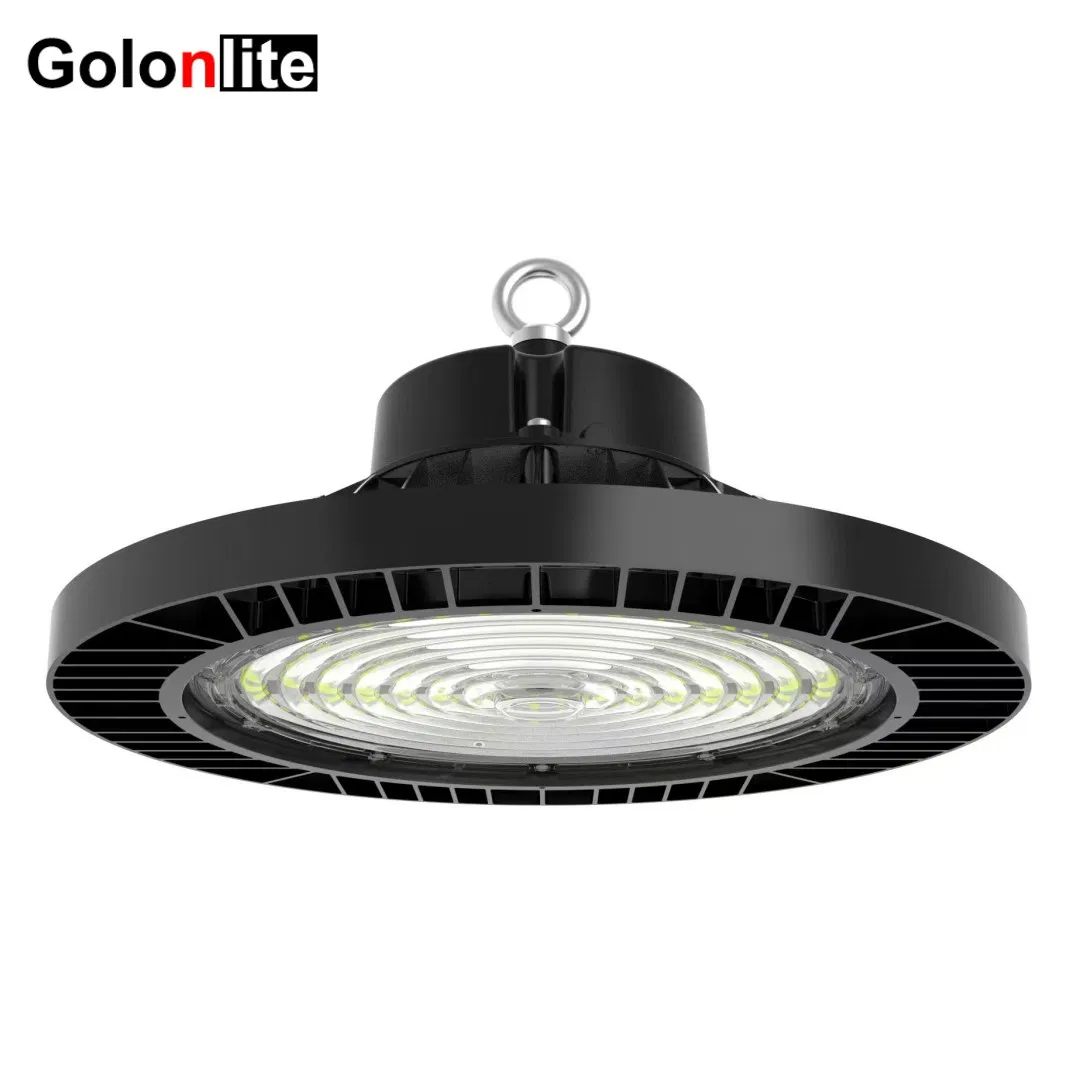

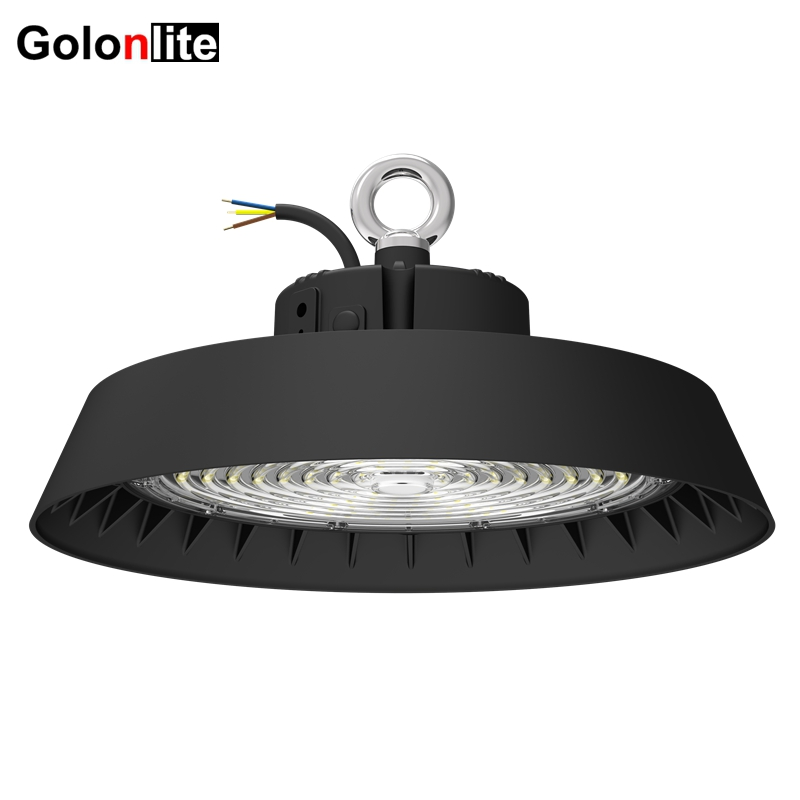

190lm/W Sensor Dimmable Store Gym showroom Factory Workshop Warehouse LED Industrial Lighting Low Bay Lamp 300W 240W 100W 150W 200W UFO LED High Bay Light fixture
✓
Technical Specifications
| Product description |

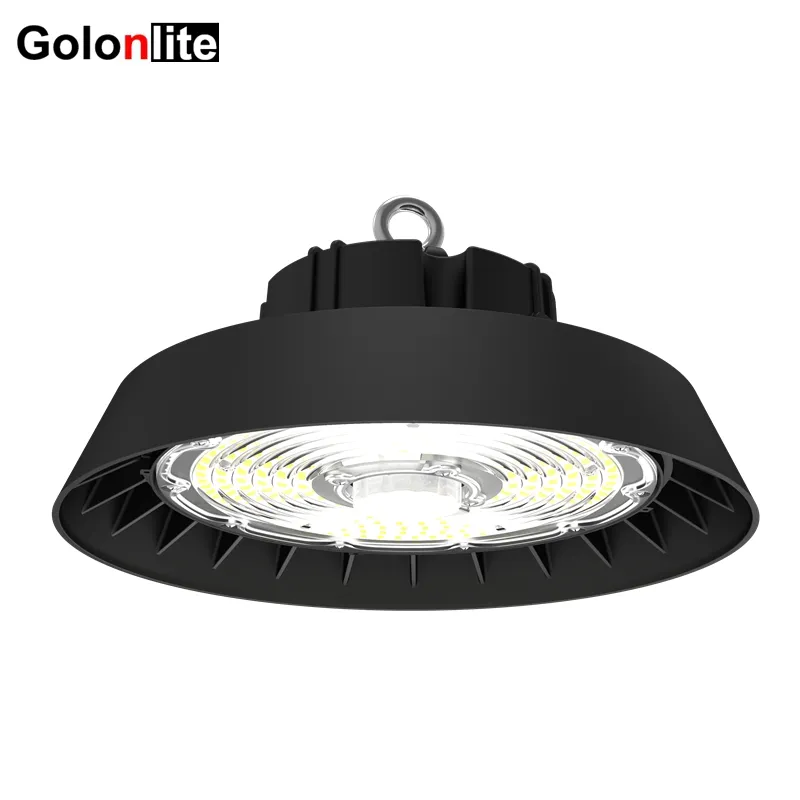

High brightness UFO LED high bay light |
| Power |
240W / 200W / 150W / 100W / 60W |
| LED Type |
SMD2835 |
| Luminous Efficiency |
150Lm/W; 170Lm/W; 190Lm/W; 210Lm/W |
| CCT(K) |
3000K / 4000K / 5000K / 5700K / 6500K (CCT Changeable) |
| CRI |
Ra90 / Ra80 / Ra70 |
| Power Supply |
Philips Sosen Lifud Meanwell Driver |
| Surge Protection |
6KV-Line / 6KV-Line-Earth |
| Power Efficiency |
>93% |
| Input Voltage |
100-277VAC; 347VAC 480VAC 50/60Hz |
| Dimming function |
1-10V, DALI2 |

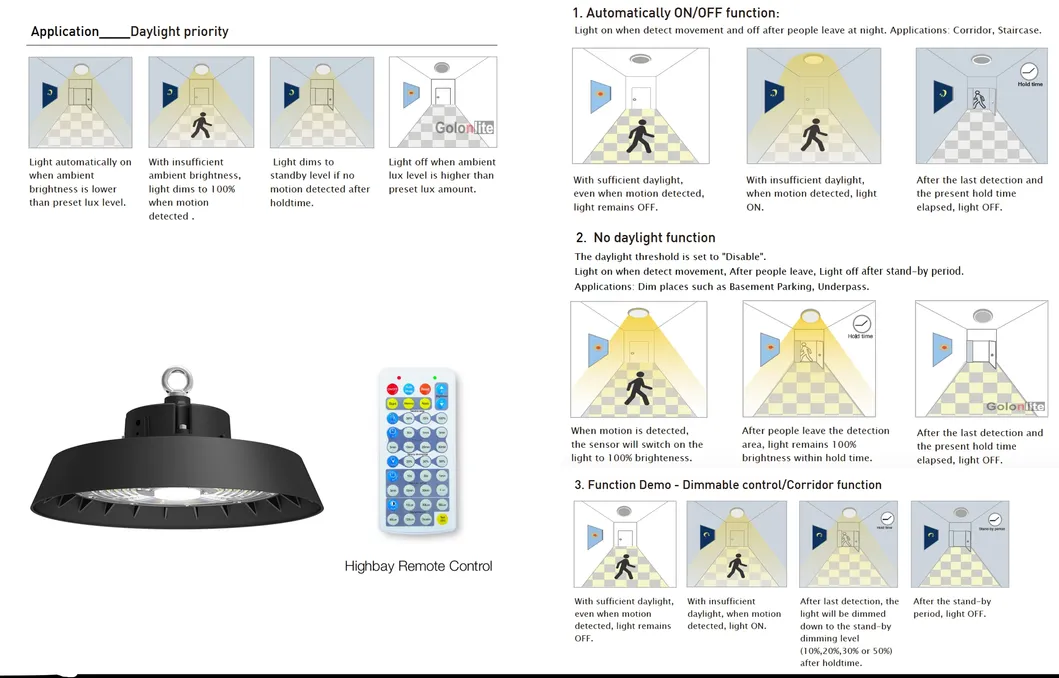

| Sensor Control |

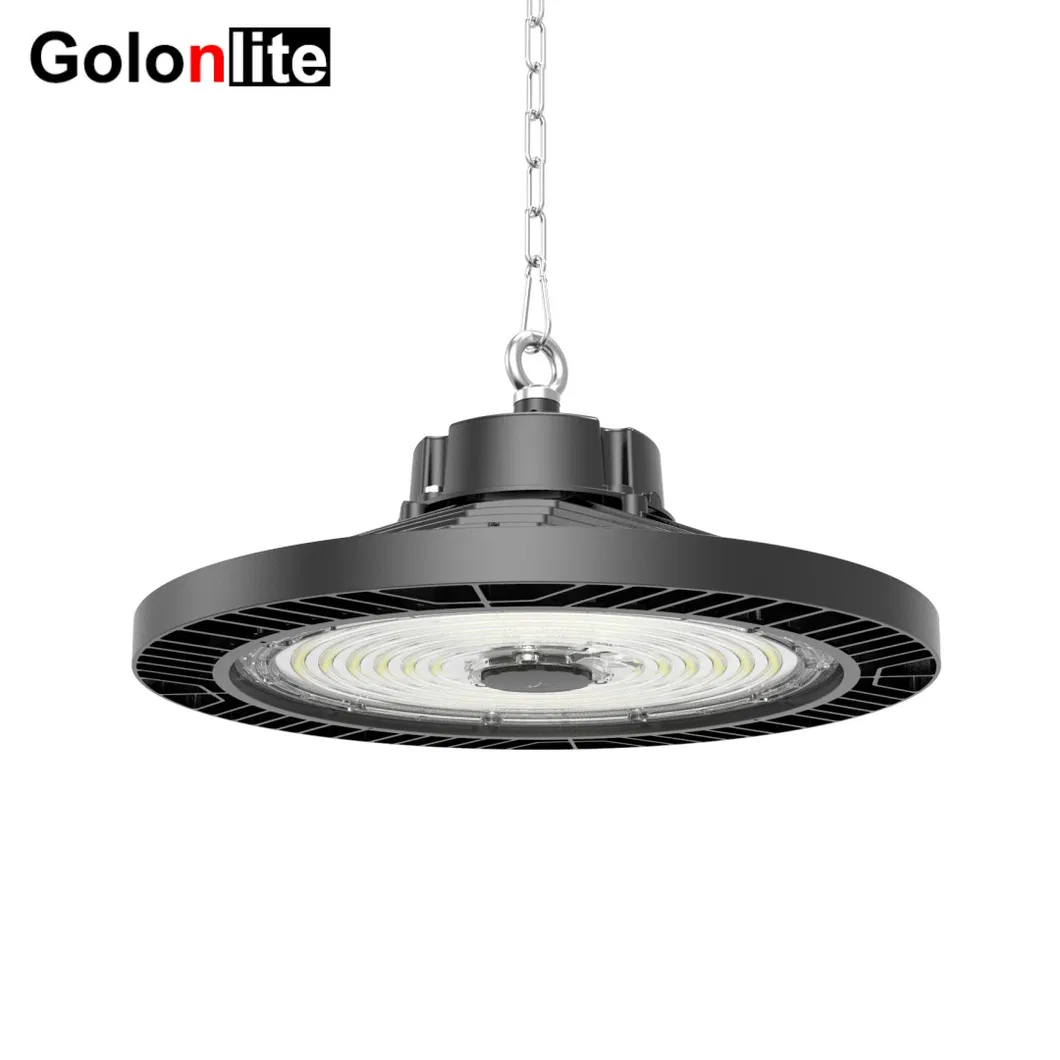

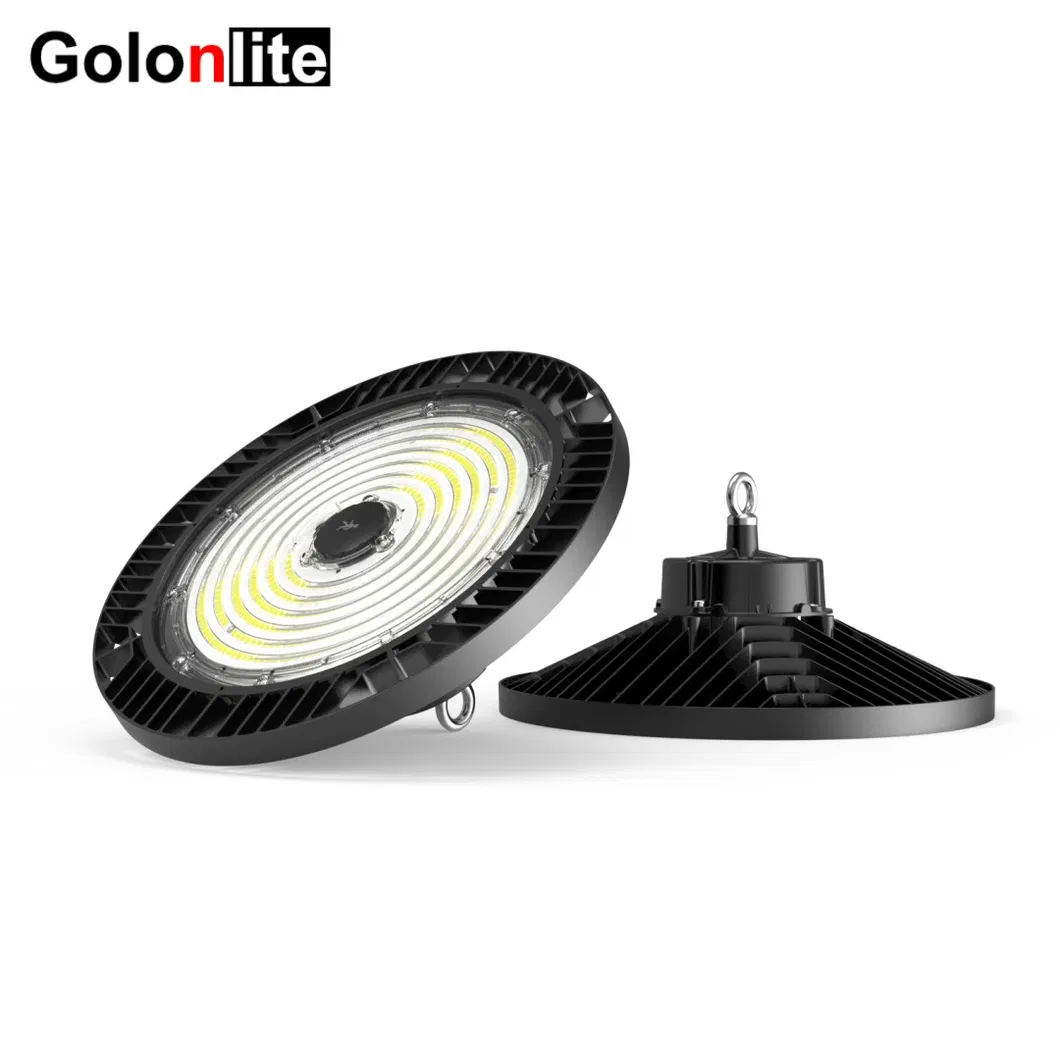

Microwave / Daylight sensor |

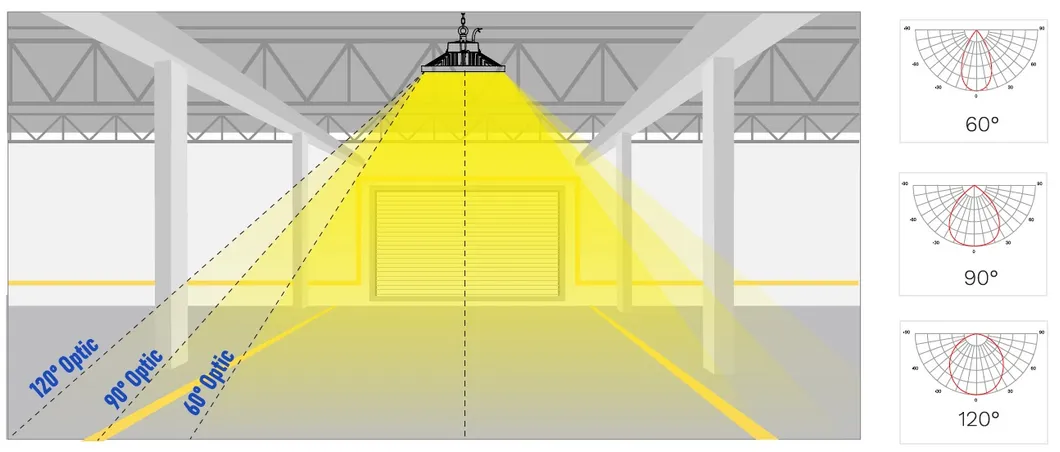

| Beam Angle |
60° / 90° / 120° |
| Materials |

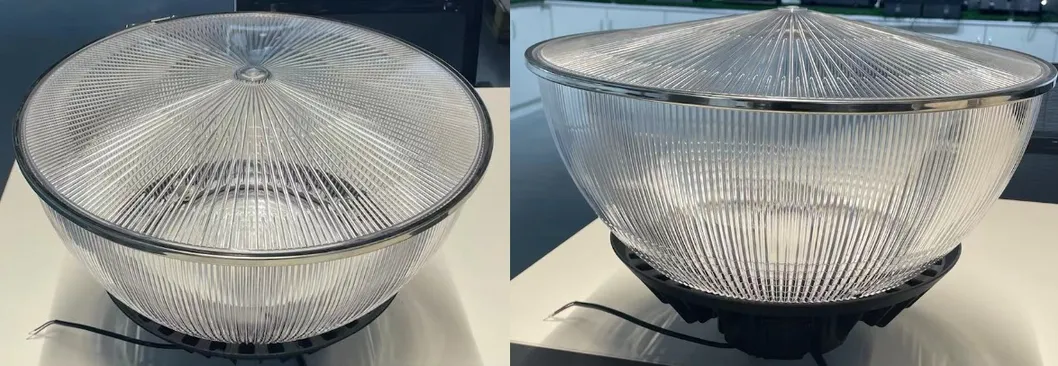

Die Casting Aluminum housing + PC lens + (aluminum/prismatic diffuser) |
| IP / IK Grade |
IP65 waterproof / IK09 |
| Lifetime |
L70B10>100,000h; L80B10>50,000h |
| Warranty |
5 years warranty |
★

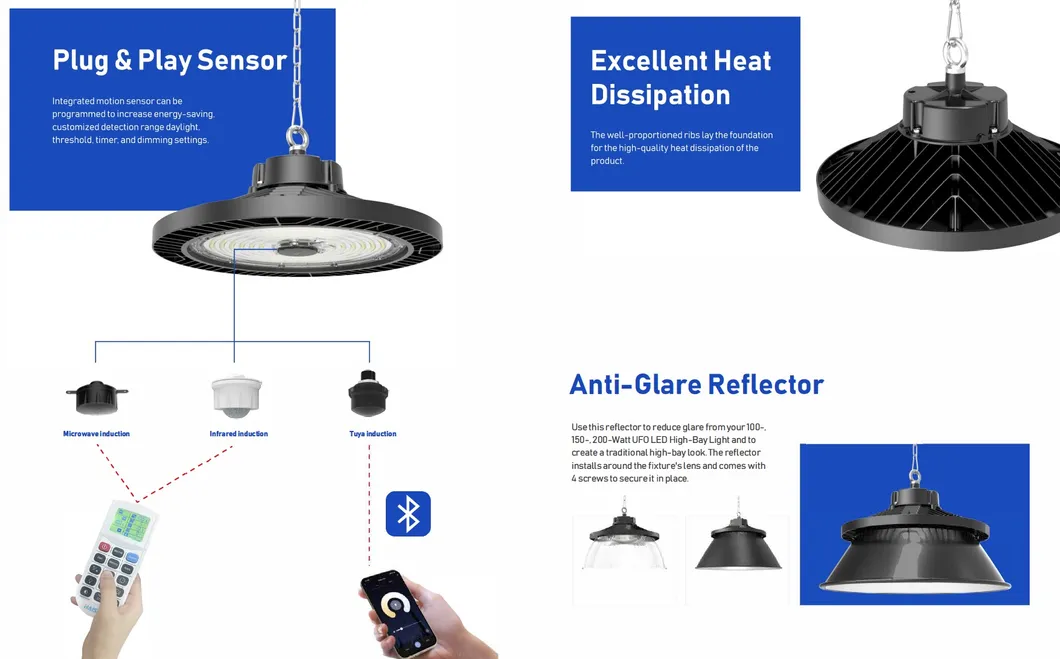

High Power Product Features
⚡

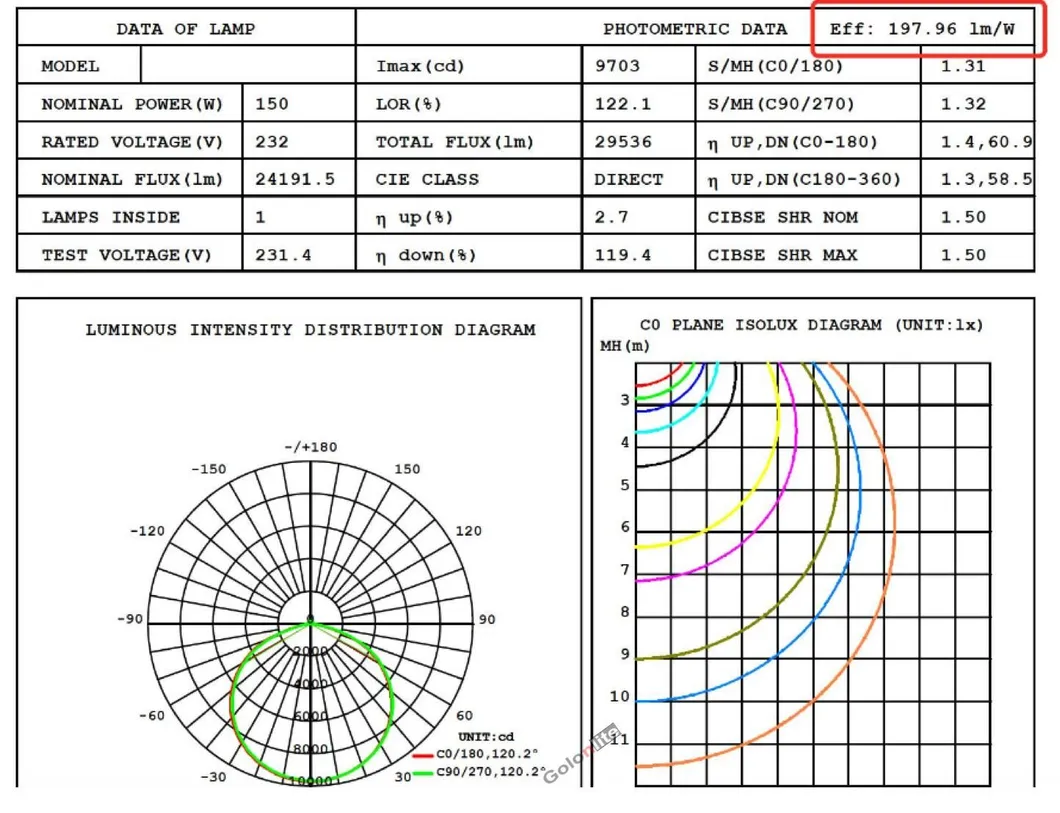

Tested High Efficiency (Up to 210Lm/W)
⛨

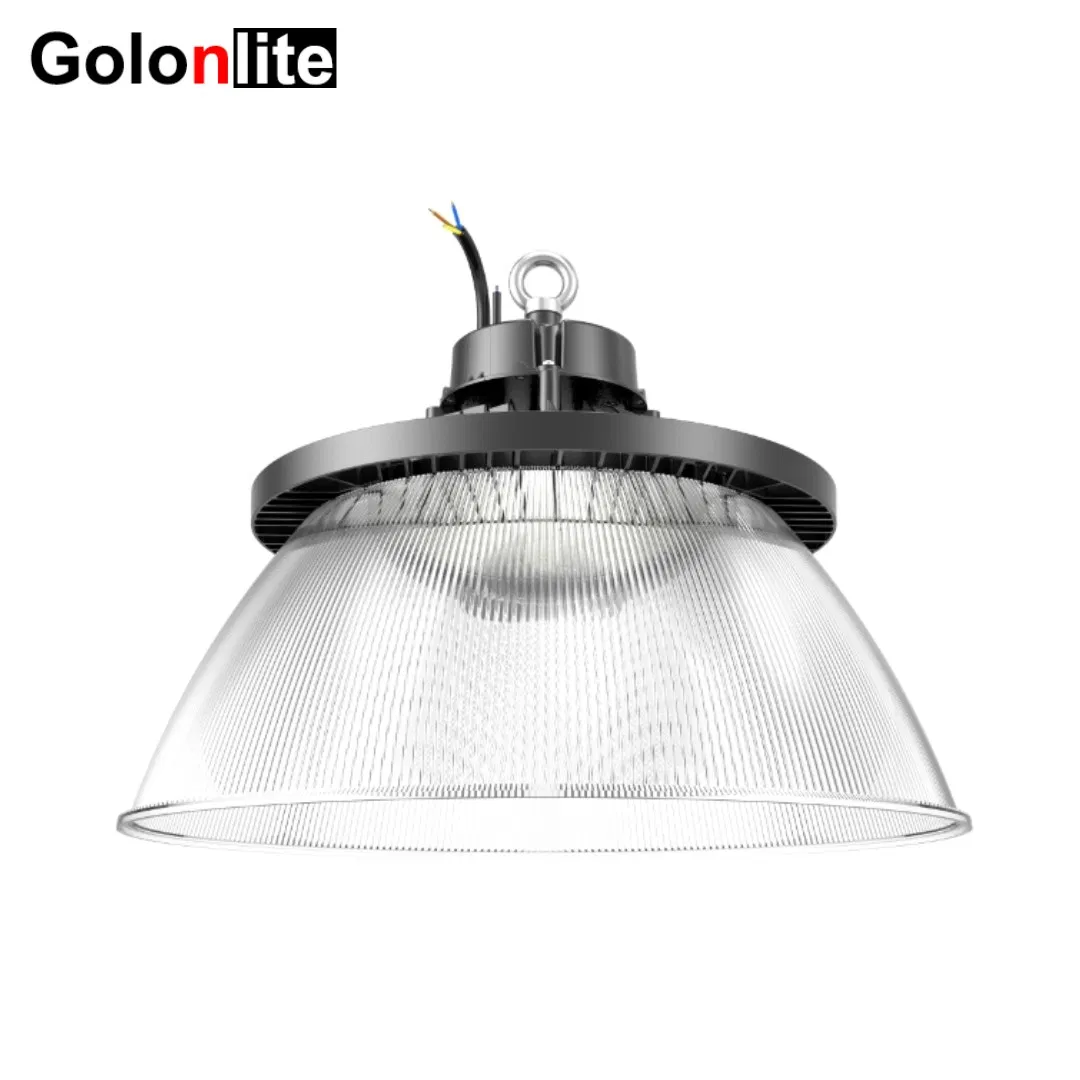

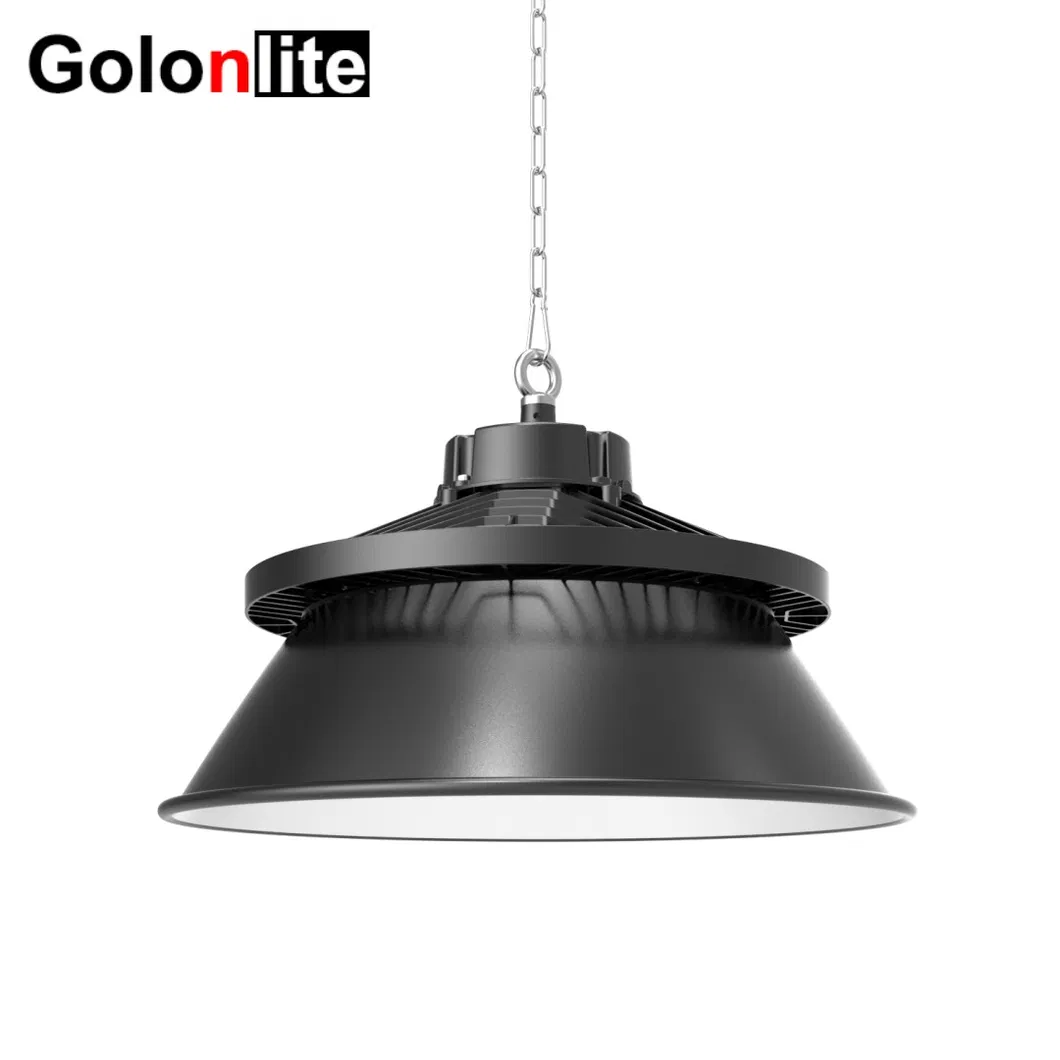

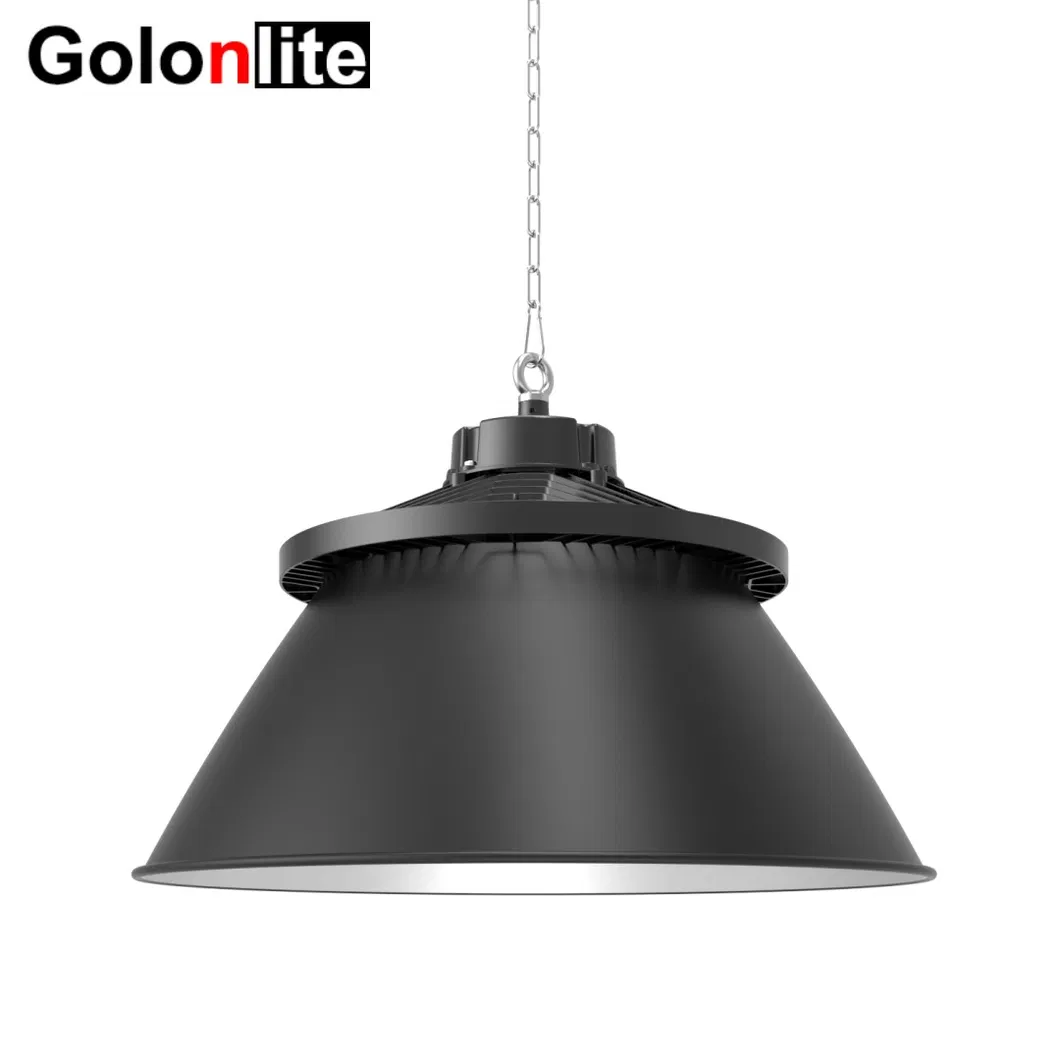

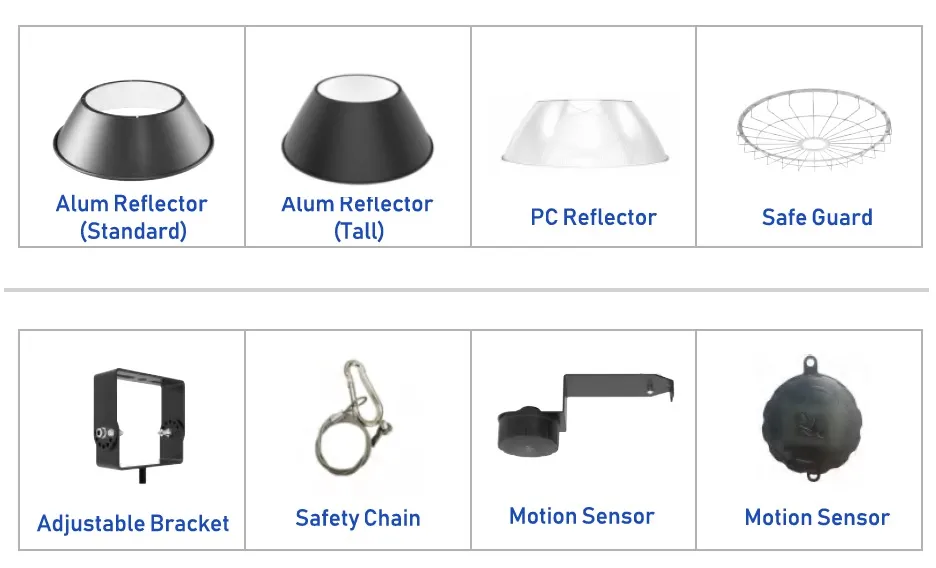

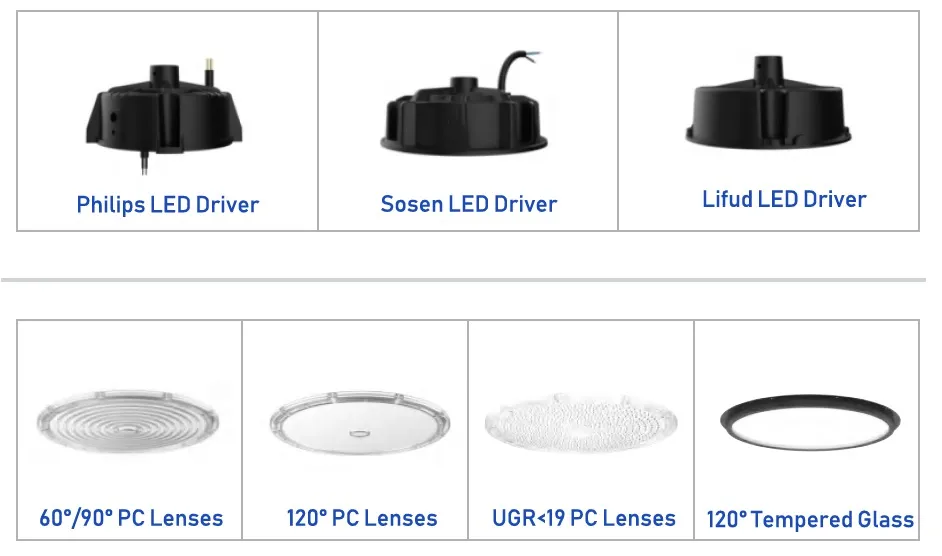

Accessories & Diffuser Options
📏

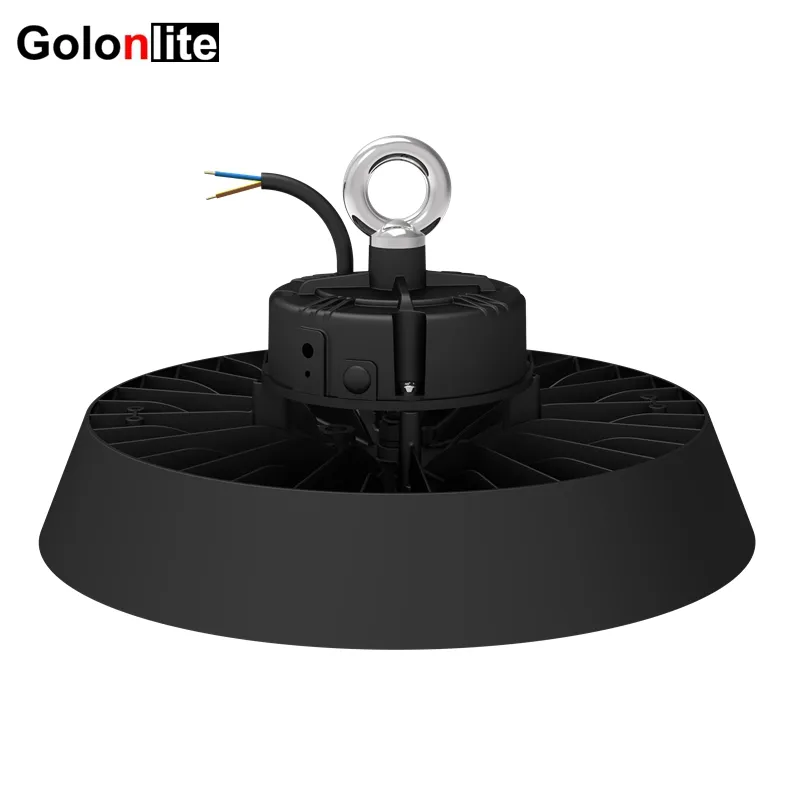

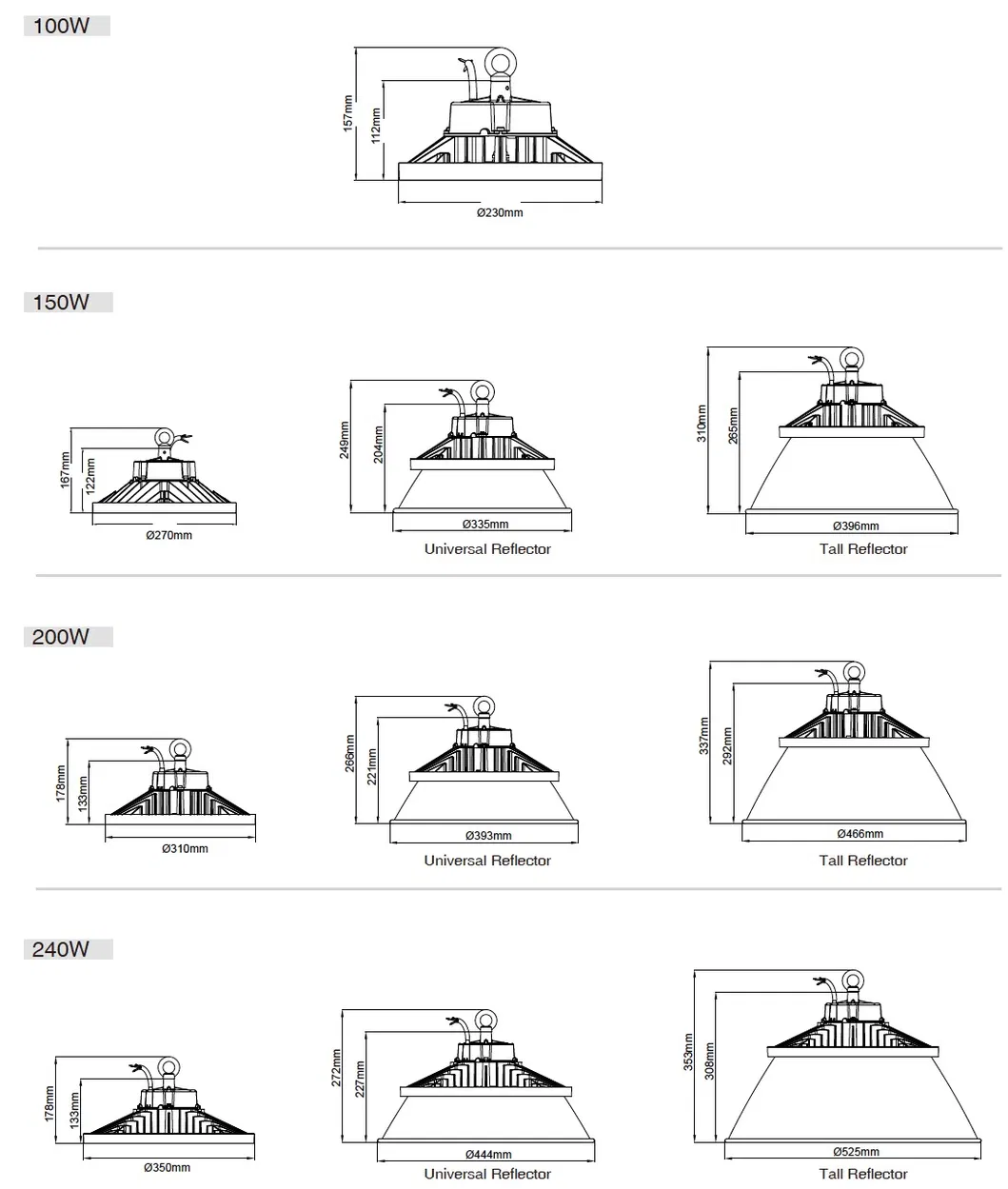

Dimensions & Durability

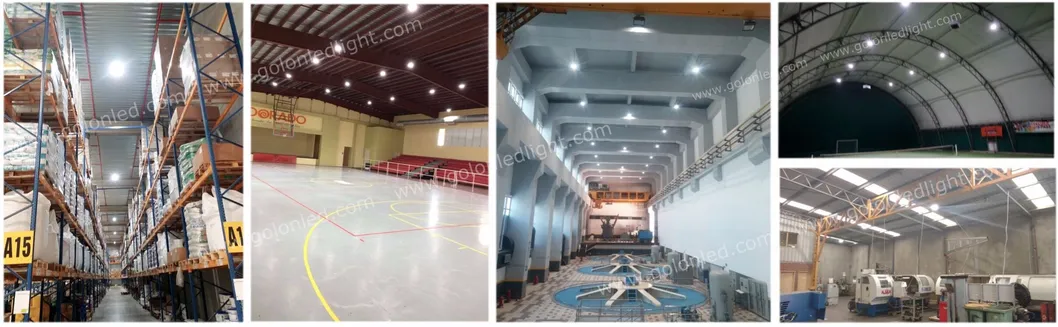

Widely used in shopping mall, exhibition hall, parking lot, playground, gymnasium, billboards, park, sculpture, national green lighting project, building facade and public corridor, stair corridor and other indoor and outdoor lighting.
Fast Response: All inquiries replied within 24 hours.
OEM/ODM: Welcomed unique design and custom models.
Free Lighting Design: Dialux lighting study & IES files provided.
Long-term Warranty: 5 years warranty on products.
?
Frequently Asked Questions
What is the highest efficiency available for these lights?
Our UFO LED High Bay lights are IES tested to reach high efficiencies of up to 210Lm/W, though standard options include 150Lm/W, 170Lm/W, and 190Lm/W.
Are these fixtures suitable for wet environments?
Yes, the lights are IP65 waterproof and IK09 impact rated, making them suitable for both indoor and outdoor industrial applications.
What dimming and sensor options do you offer?
We provide 1-10V and DALI2 dimming functions, along with microwave motion sensors and daylight sensors for maximum energy savings.

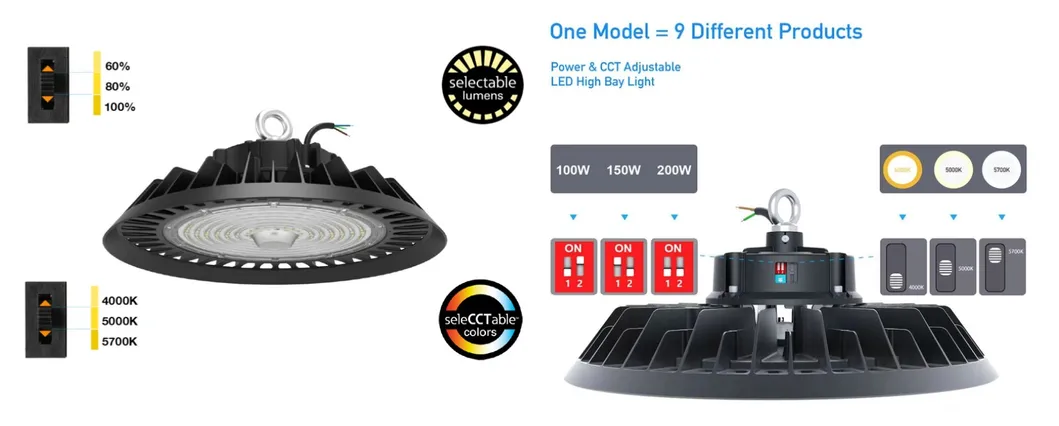

Can the color temperature (CCT) be adjusted?
Yes, we offer CCT changeable options ranging from 3000K to 6500K to suit different environment requirements.
Do you provide lighting layout assistance?
Absolutely. we offer free lighting design services using Dialux and can provide IES files for your own simulation.

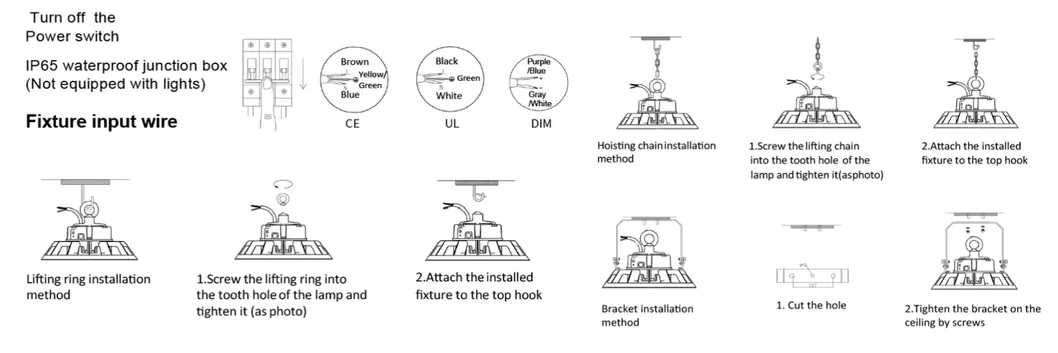

What kind of mounting options are supported?
The standard design supports eye-bolt hanging, and we also offer adjustable bracket mounting as an accessory.
