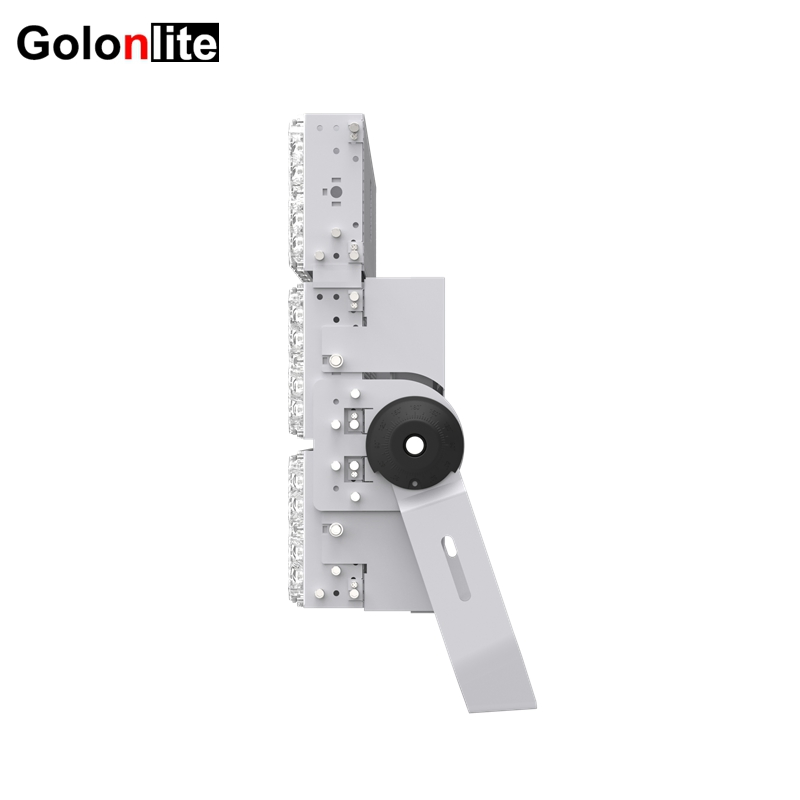

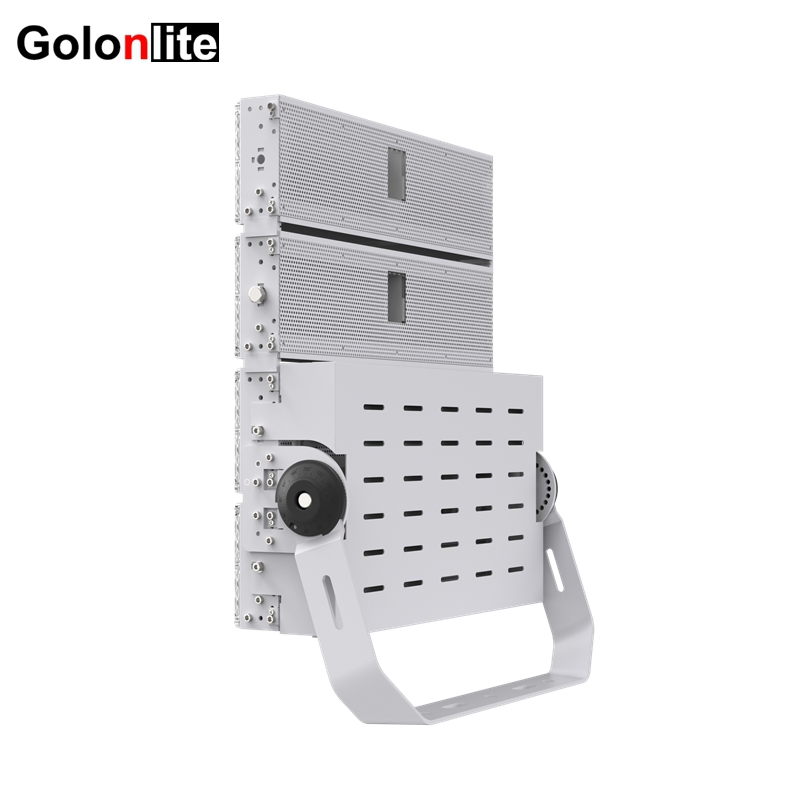

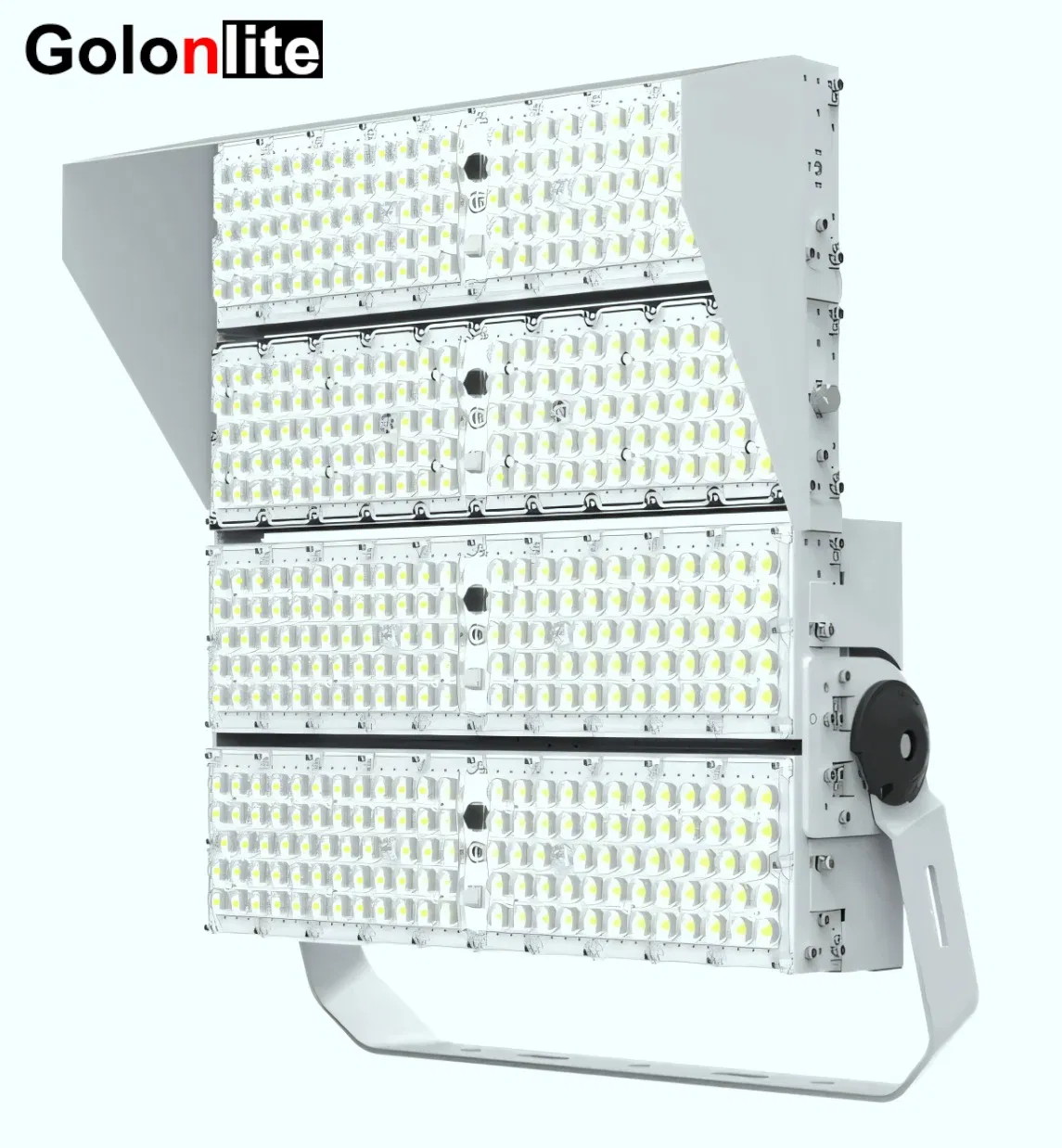

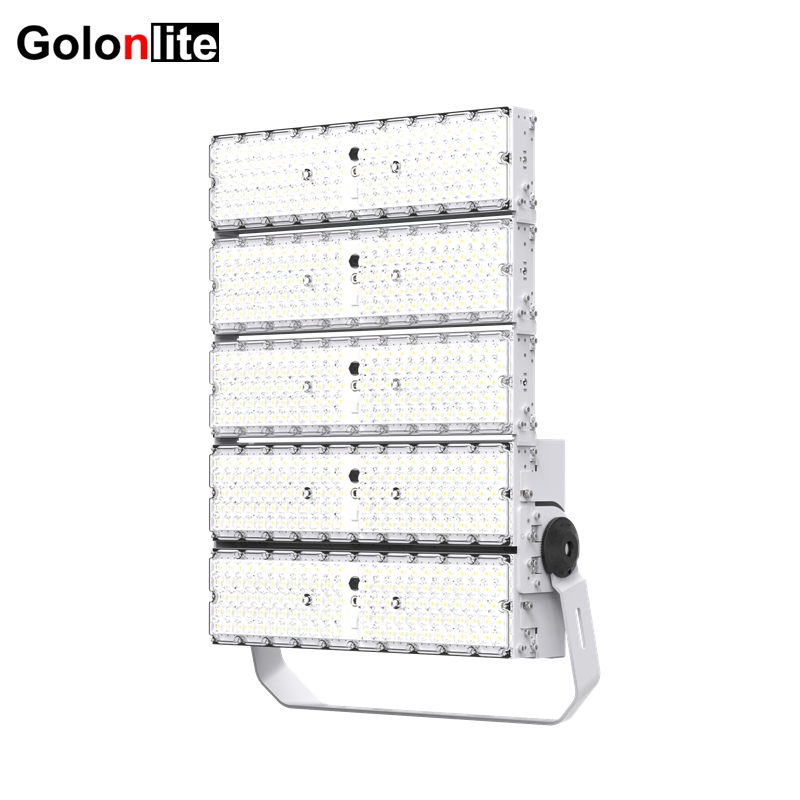

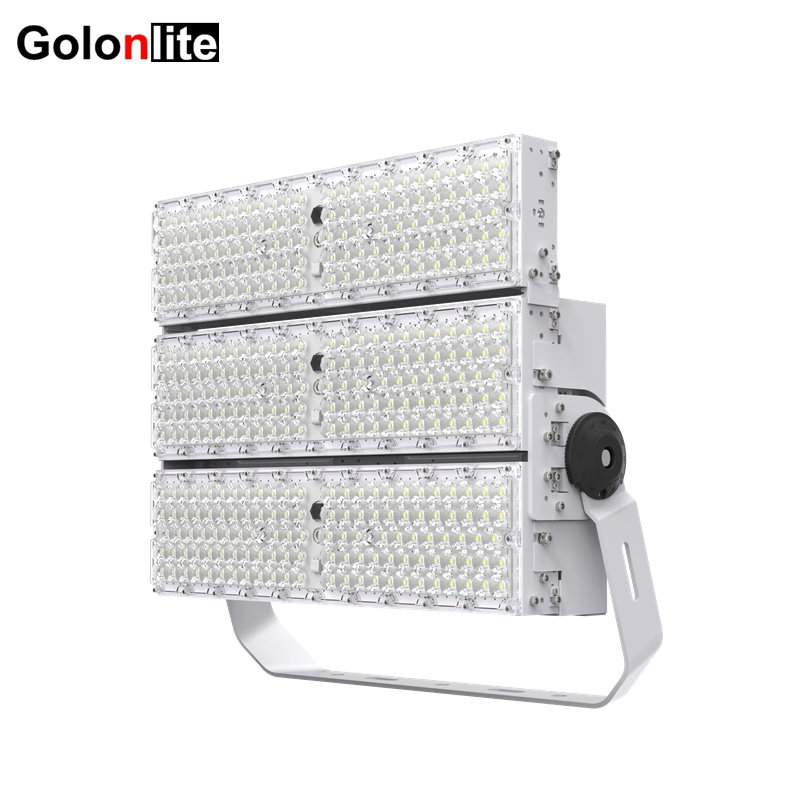

High Power LED Stadium Flood Light (1500W-240W)

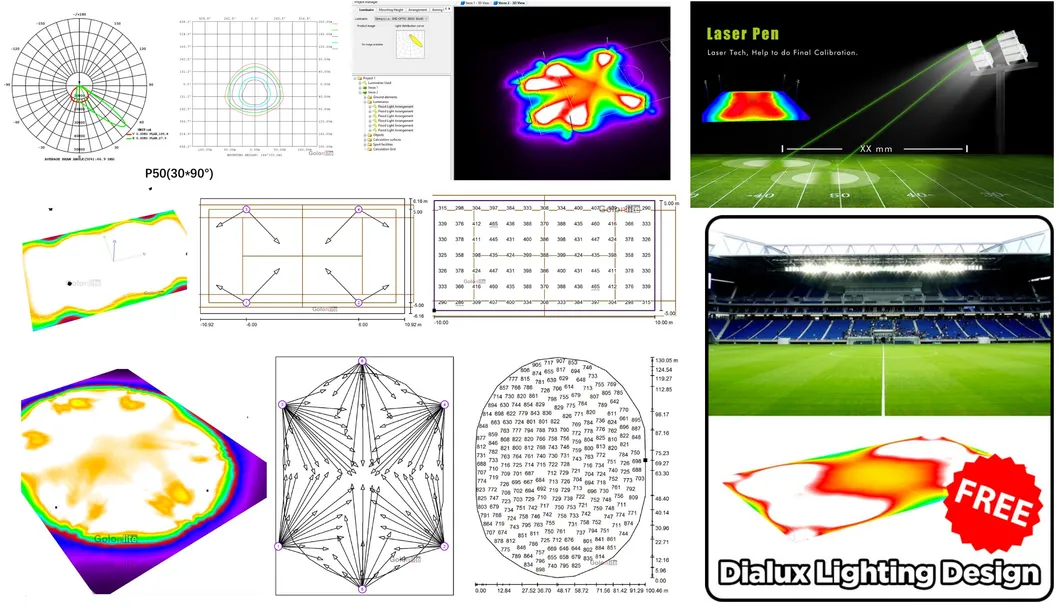

Replace 2000W Halogen Lamp with IP66 rated LED arena reflectors. Available in 1500W, 1200W, 1000W, and other variants. High efficiency up to 170Lm/W-190Lm/W for professional sports, soccer, and football field lighting. Dialux lighting study is available.
| Parameter | Details | |
|---|---|---|
| Light Details | LED Type | SMD5050 |
| Luminous Efficiency | 160Lm/W; 170Lm/W; 190Lm/W | |
| CCT (K) | 2700K - 6500K | |
| CRI | > Ra70 / Ra80 | |
| Power Supply | Meanwell / Sosen / Inventronics Driver | |
| Lifespan | > 50,000 Hours | |
| Electricity | Input Voltage | 100-277VAC / 347V / 480V 50/60Hz |
| Dimming | 0-10V, PWM, Resistance, DALI dimmable | |
| Power Factor | > PF0.95 | |

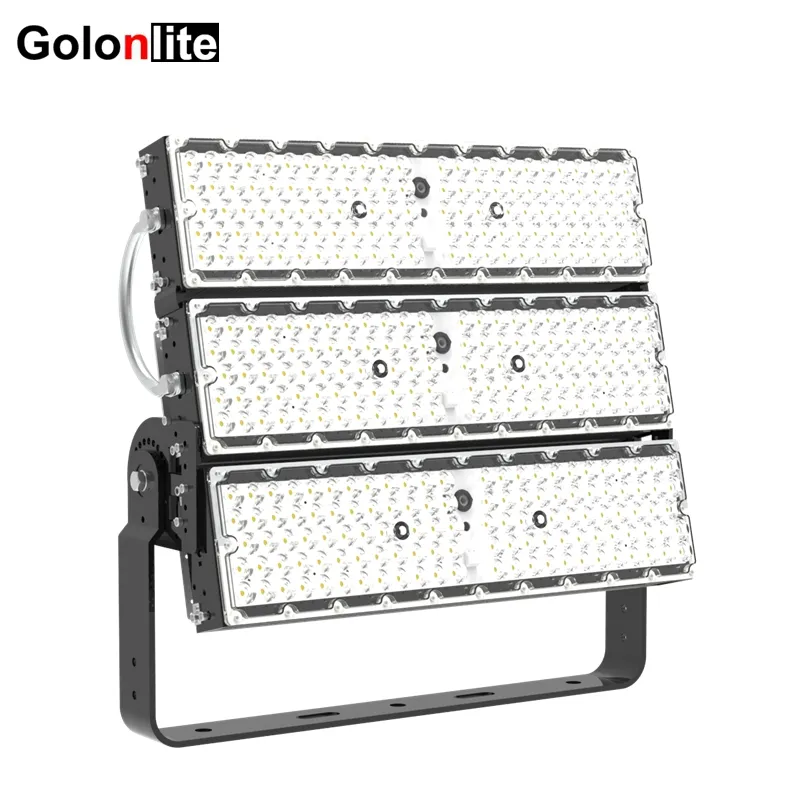

| Beam Angle | 10°/20°/40°/60°/90°/120°/P50 | |
| Structure | Materials | Fin Aluminum housing + optical lens |

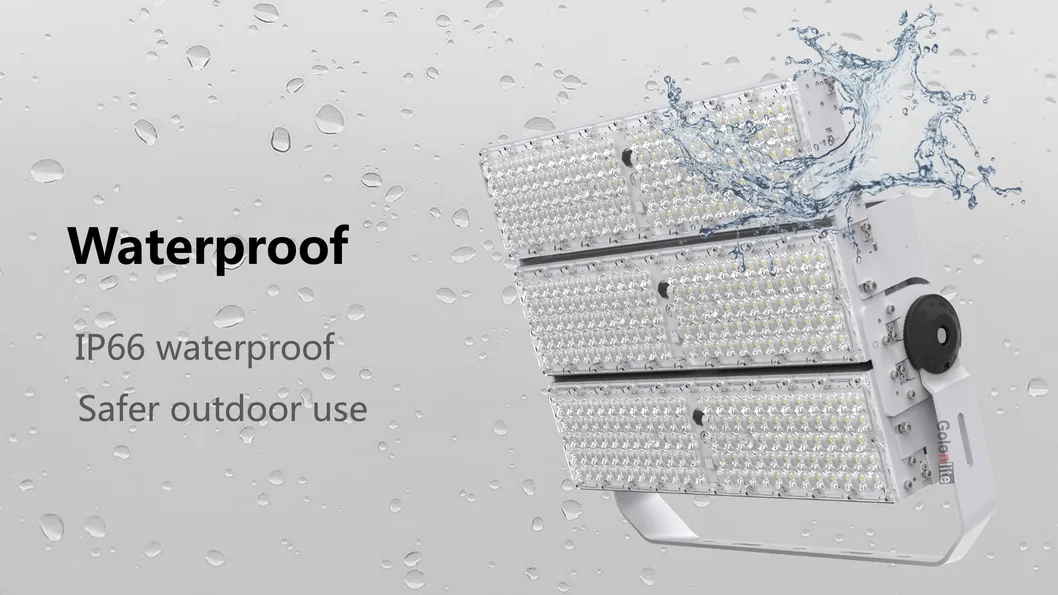

| Protection Grade | IP66 Waterproof | |

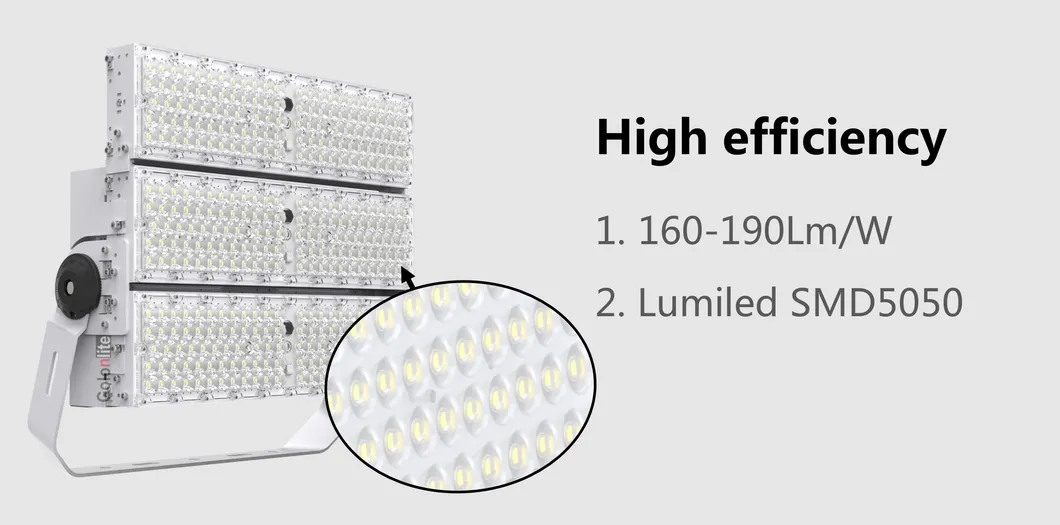

Adopt with world famous drivers and high-efficiency SMD5050 chips.

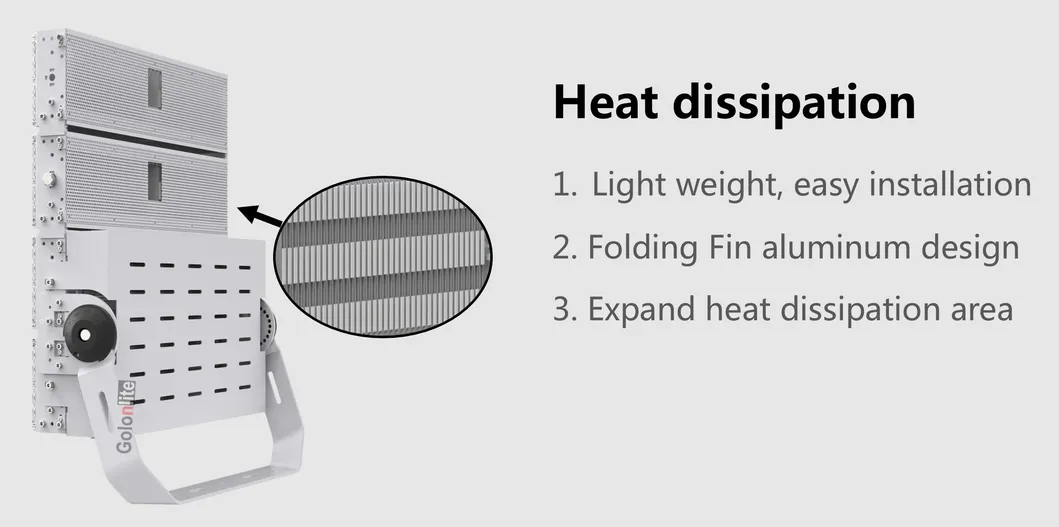

Fin Aluminum housing design for best thermal management, 20% lighter weight.

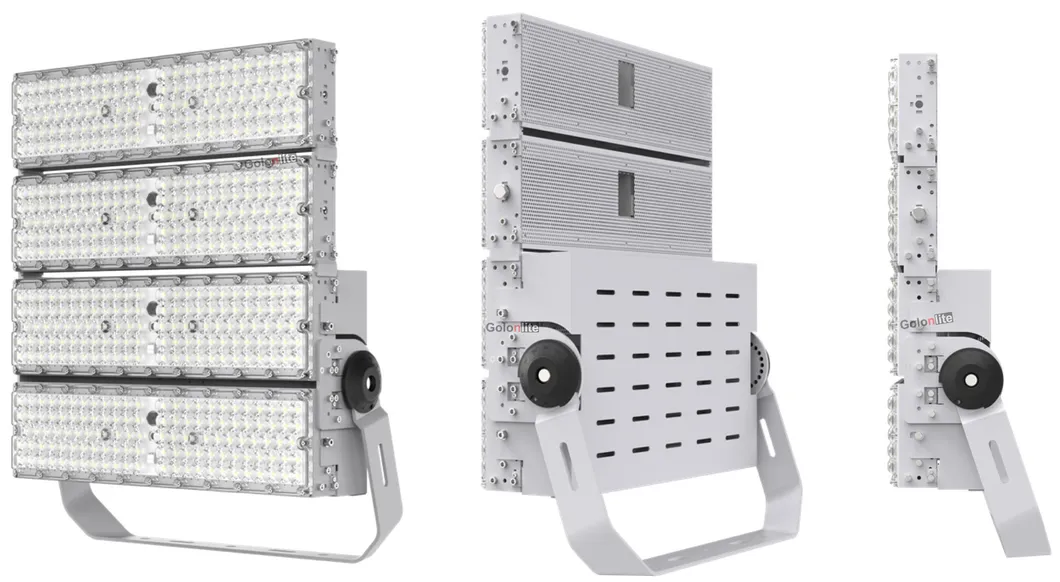

180° adjustable lamp body with round installation plate for precise aiming.
Smooth design allows for easy cleaning and maintenance in outdoor environments.

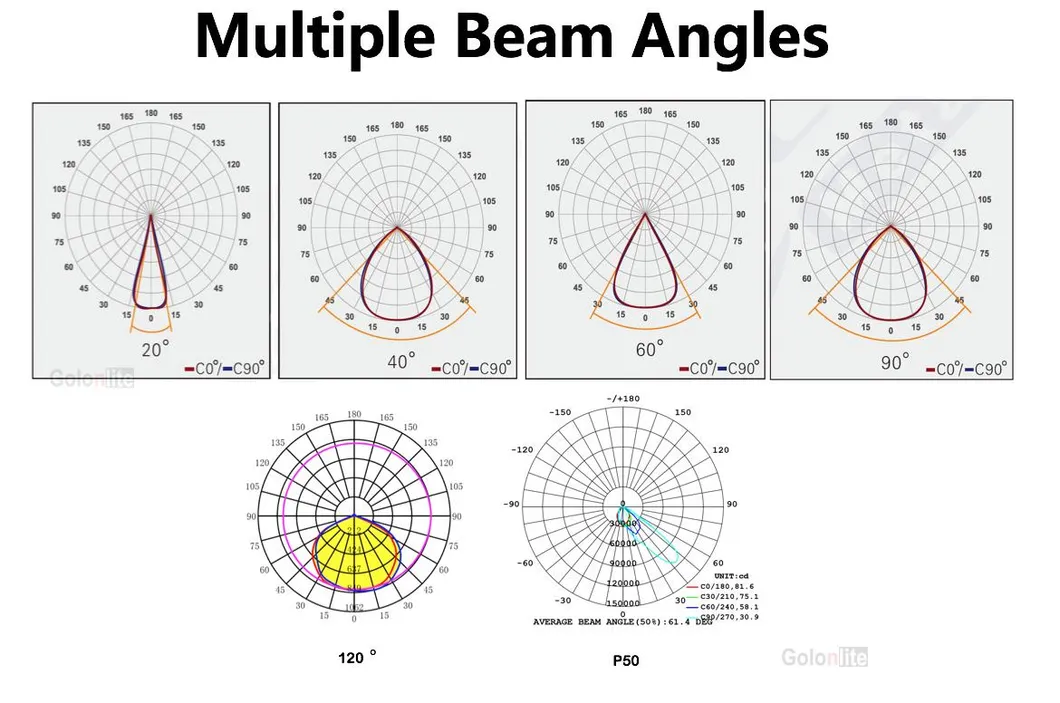

Symmetric & Asymmetric beam angles available for professional field distribution.

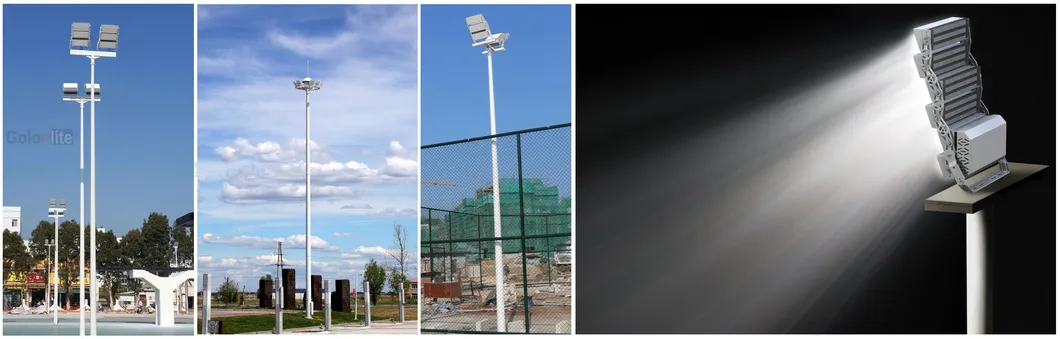

Ideal for high mast lighting in football stadiums, sports courts, seaports, airports, wharfs, and large building facades.

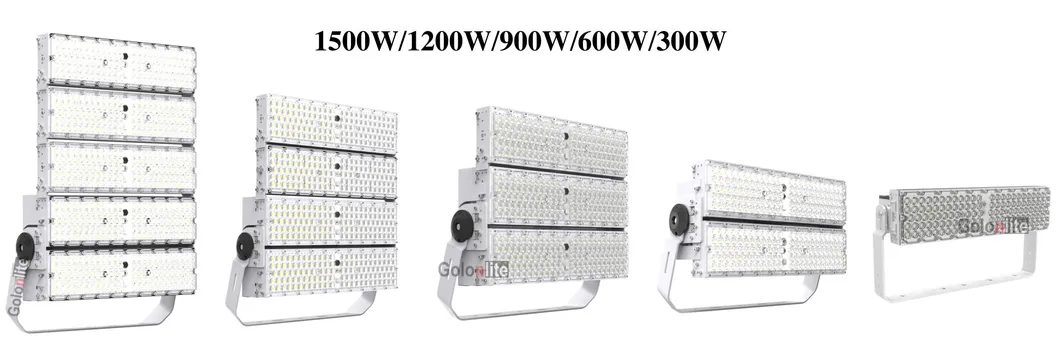

| Power | Lumens Efficiency | Beam Angle | MHL/Halogen Replacement | Dimmable Options |
|---|---|---|---|---|
| 1500W | 160Lm/W | 10/20/40/60/P50 | 2000-2500W | 1-10V, DALI, PWM |
| 1200W | 160Lm/W | 10/20/40/60/P50 | 2000-2500W | 1-10V, DALI, PWM |
| 960W | 160Lm/W | 10/20/40/60/P50 | 2000W | 1-10V, DALI, PWM |
| 720W | 160Lm/W | 10/20/40/60/P50 | 1500W | 1-10V, DALI, PWM |
| 600W | 160Lm/W | 10/20/40/60/P50 | 1000-2000W | 1-10V, DALI, PWM |
| 300W | 160Lm/W | 10/20/40/60/P50 | 1000-1500W | 1-10V, DALI, PWM |
