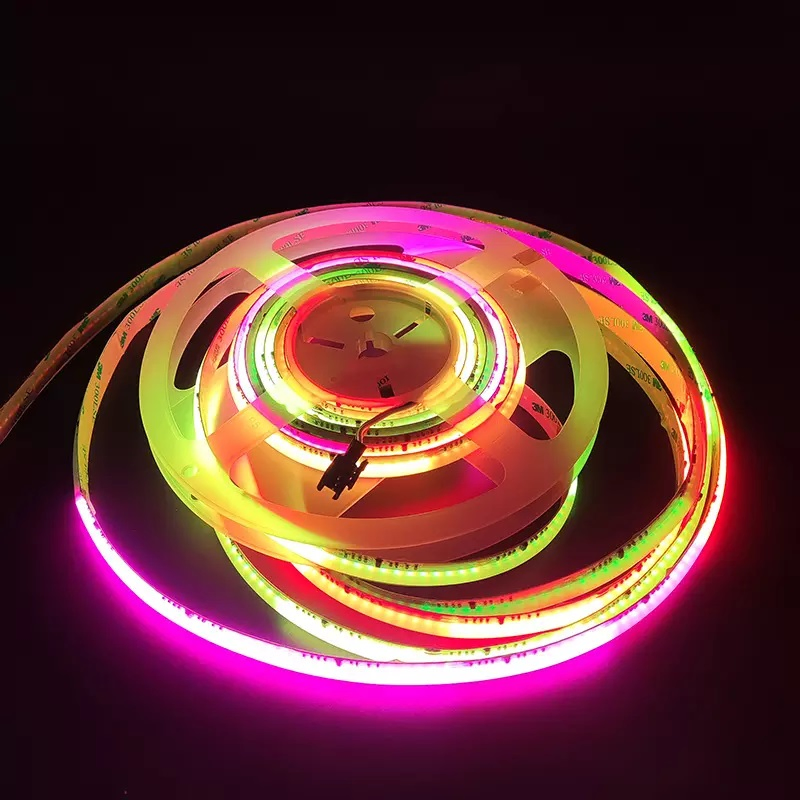

Flexible COB LED Strip Light for 12V Rope Lighting Solutions

Product Description

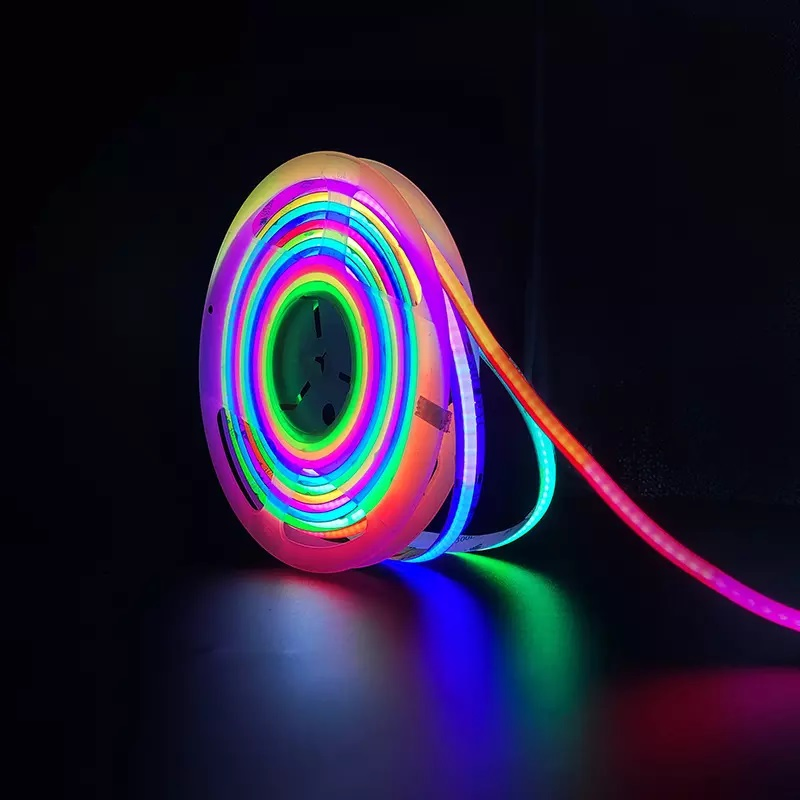

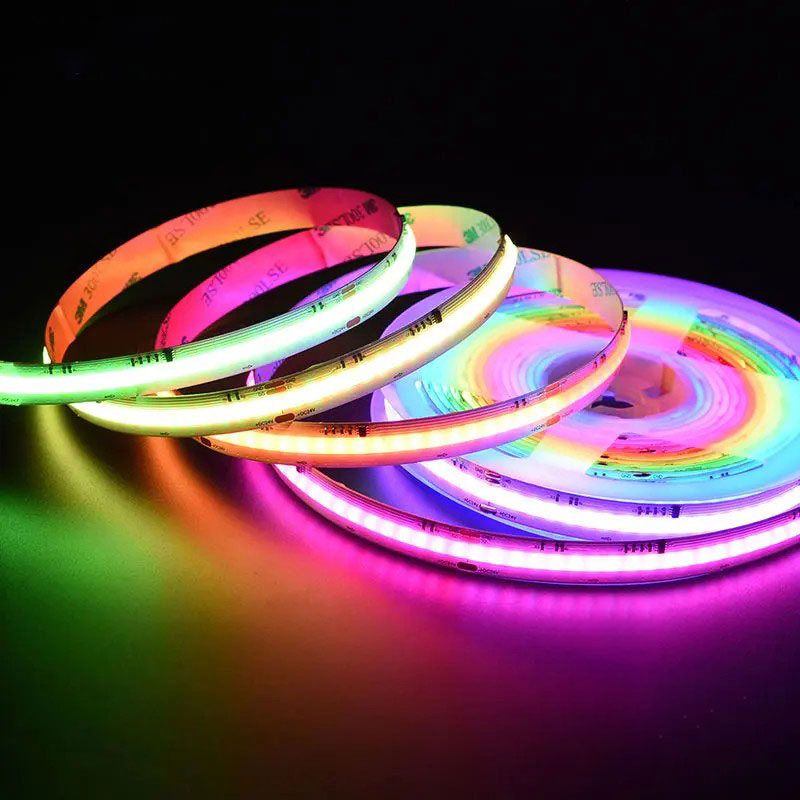

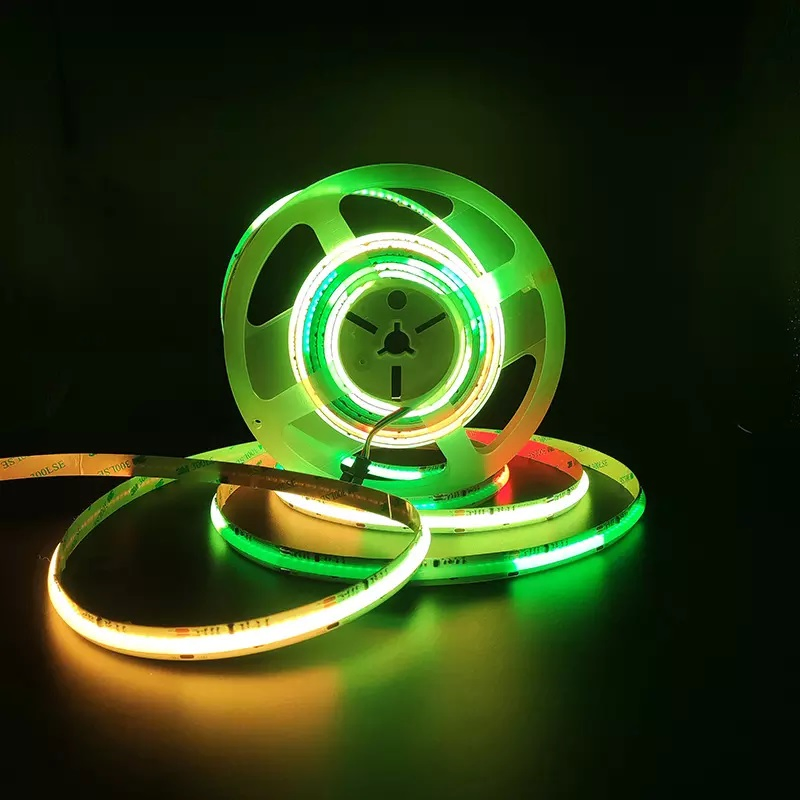

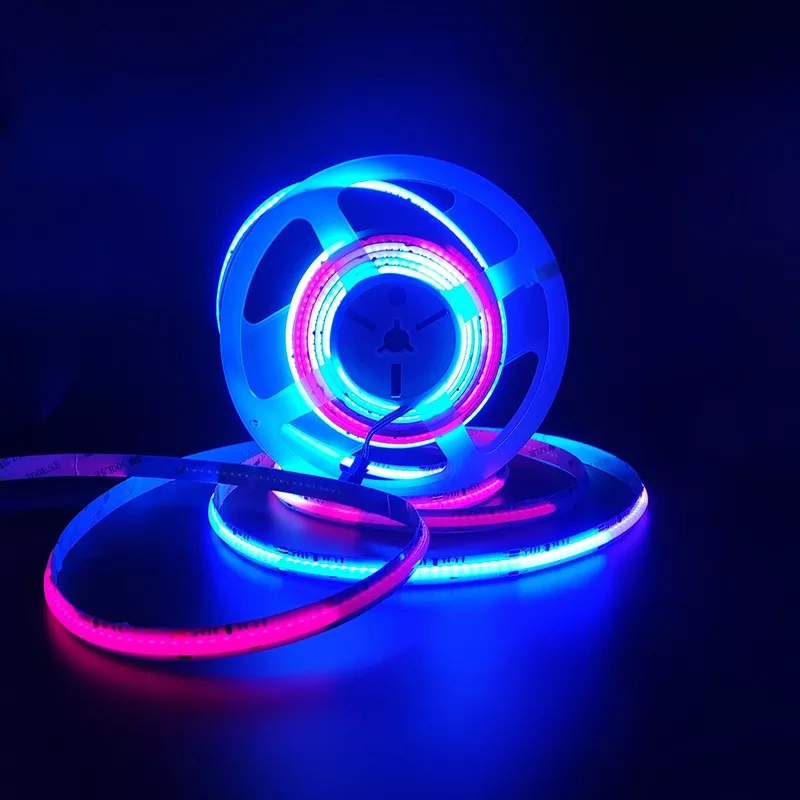

New Technology COB Strip LED Flex Strip Rope Light COB LED 12V
💡 Good solution for linear light. Perfect Dot-Free lighting effect even without profile or PC cover.
Continuous and uniform linear illumination, soft and elegant light, no glare.
🛡️ Adopt Flip-Chip technology, no dead light risk. Good heat dispersion and long life span.
🌀 More flexible and bendable (bending radius of only 5mm), suitable for any shape.
Technical Specifications
Parameter Detail
Item TypeCOB
Led ModelKDY-COB720 RGB- A27
LED Qty720Leds/M
VoltageDC24V
Power21W
Emitted colorsfull color
Cutting Size20mm
Ra90
CCT(K)2700K/3000K/4000K/6500K / RGB
PCB Width12mm
IP RatingIP20/IP67/IP68
Bean Angel180°
CertificationCE/RoHS
Product Variation List
Product Name LED/m Volt W/m PCB Width Color CRI
RGBW COB Strip 560LED 24V 16W 10mm RGBW >90
RGB COB Strip 768/756/840 12V/24V 14W/15W 10mm RGB >90
CCT COB Strip 608LED 24V 14W 10mm CCT >90
White COB Strip 312/320/384/480/528 5V/12V/24V 8W-14W 5/8/10mm 2700K-6000K/Single Color >90
Addressable COB Strip 240LED 5V 21W 10mm Full color >90
Key Features & Visuals
  • Led Lighting New Trend: Pixel COB strip light - easy to bend and shape.
  • Spot-free Lighting effect: Achieve linear lighting without extra accessories.
  • Both Indoors & Outdoors: IP65 (Silicone/Heat shrink), IP67 (Tube), IP68 (Full injecting).

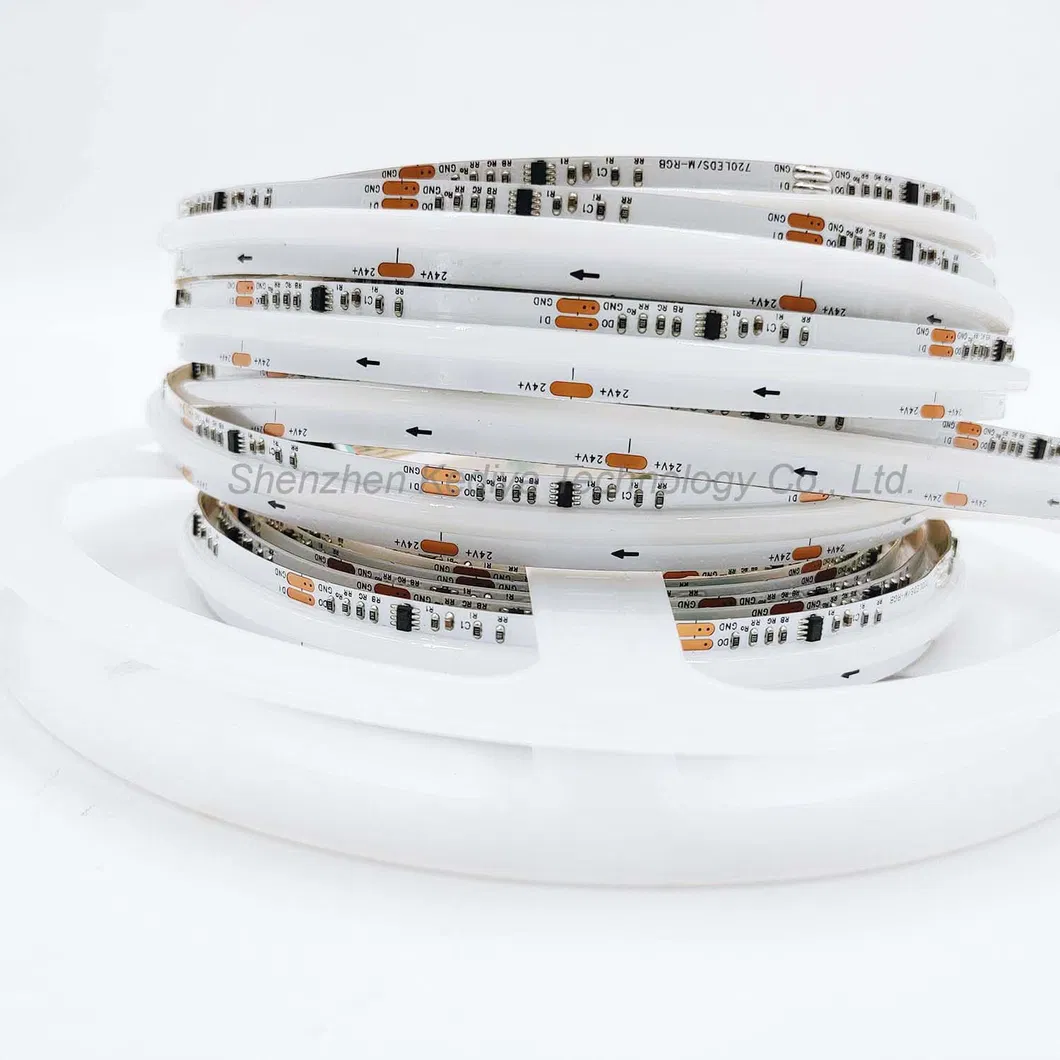

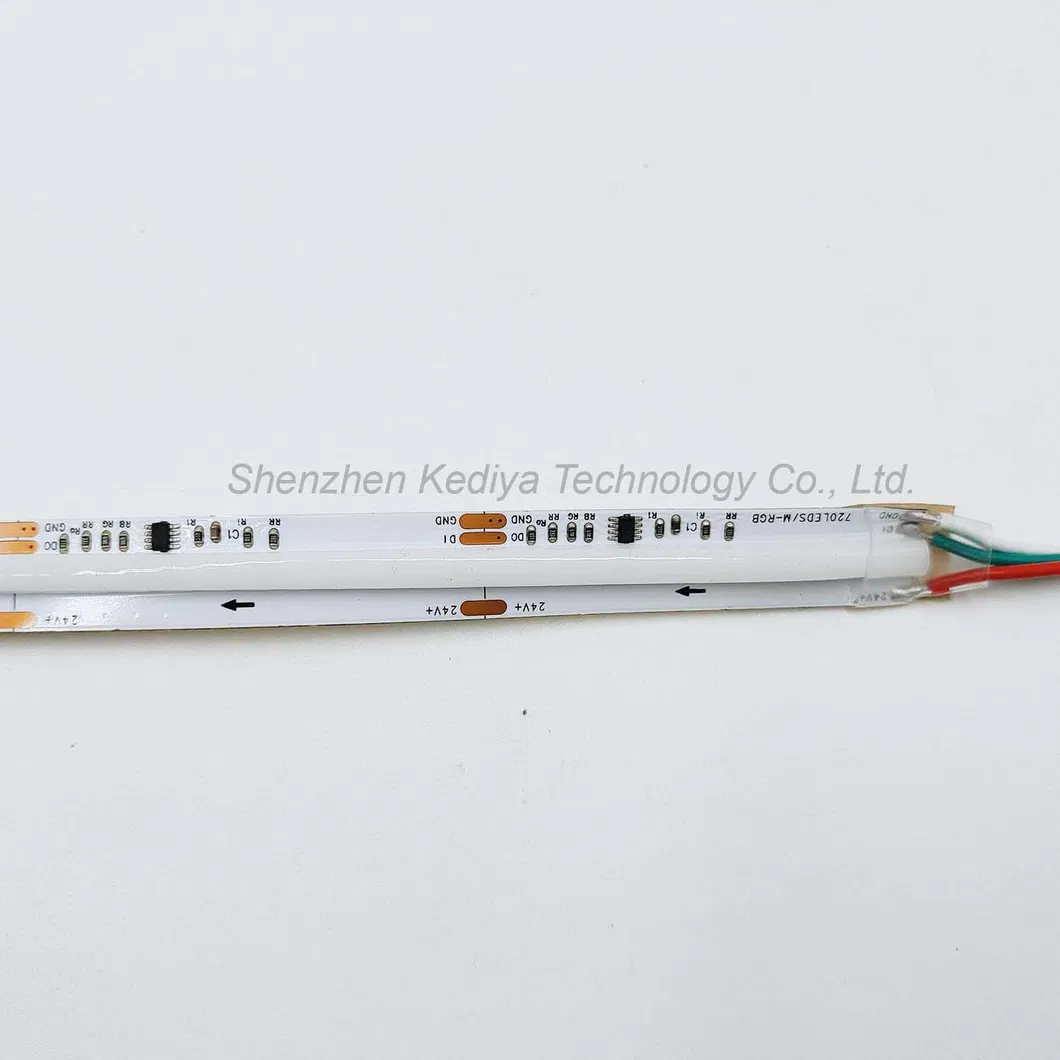

COB LED Strip Detail COB LED Lighting Effect Flexible COB LED

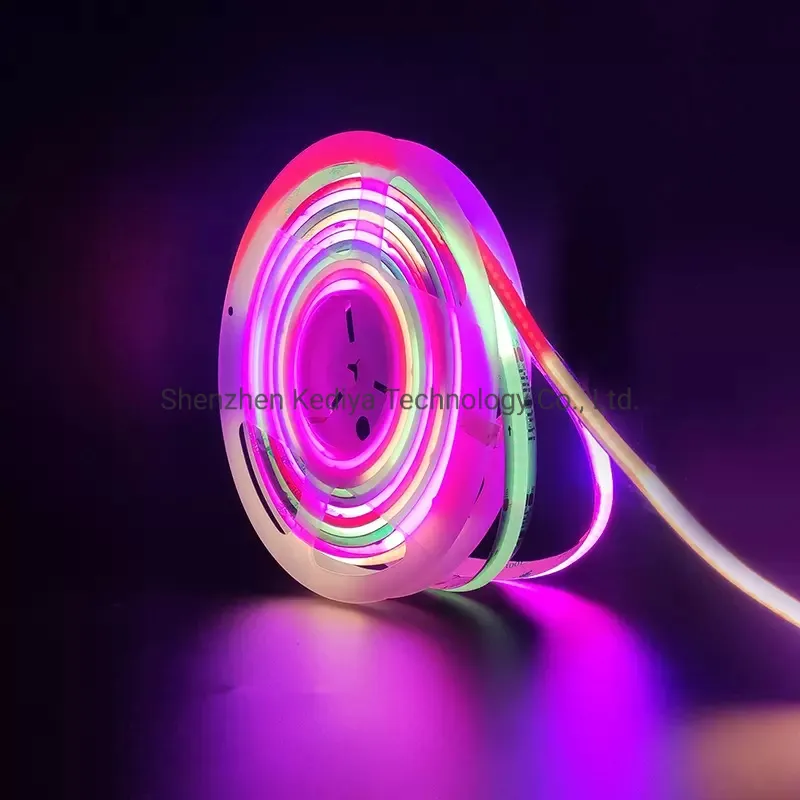

Waterproof COB Strip Color Options COB Packaging
Reliability Testing
Test Item Test Conditions Note Result (Damaged)
Thermal Shock -25ºC 15min / 100ºC 15min 300 cycle 0/22
Life Test Ta=25ºC 1000 hrs 0/22
Temp & Humidity Storage Ta=85ºC, RH=85% 1000 hrs 0/22
Installation Guidelines

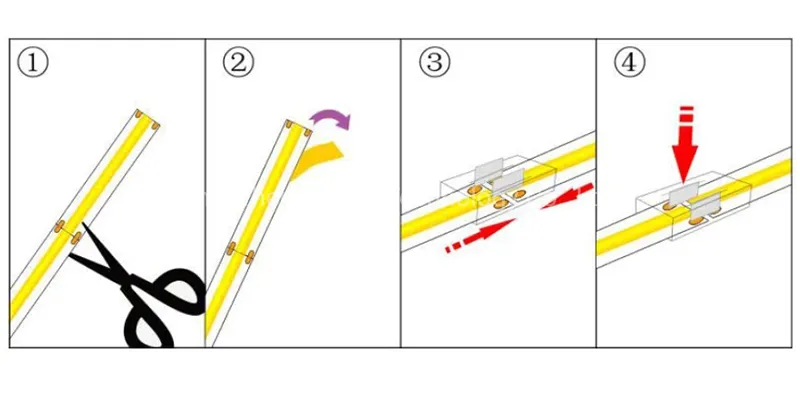

Installation Instruction
  • Power supply should be 80% of total strip power for stability.
  • Recommended length is 5m per roll to maintain consistent brightness.
  • Adhesive tape works best on glass, metal, and plastic; test on wood/cloth first.
  • Minimum bending diameter is 60mm; avoid folding or squeezing PCB parts.
  • Ensure correct polarity (+/-) during connection to prevent damage.
  • Non-waterproof strips should not be exposed to outdoor elements.
Wide Applications
1. Architectural decorative & Cove lighting
2. Canopy, archway, and bridge edge lighting
3. Amusement park & Theater mood lighting
4. Backlighting for signage & Channel letters
5. Emergency exit path & Hallway lighting
6. Stairway accent & Concealed lighting
Factory Overview
We are a professional high-tech LED enterprise with independent R&D, 6 auto SMD production lines, and 7 assembly lines. Monthly output reaches 350,000 meters. We follow strict QC standards with advanced testing equipment including integrating spheres and aging test labs.

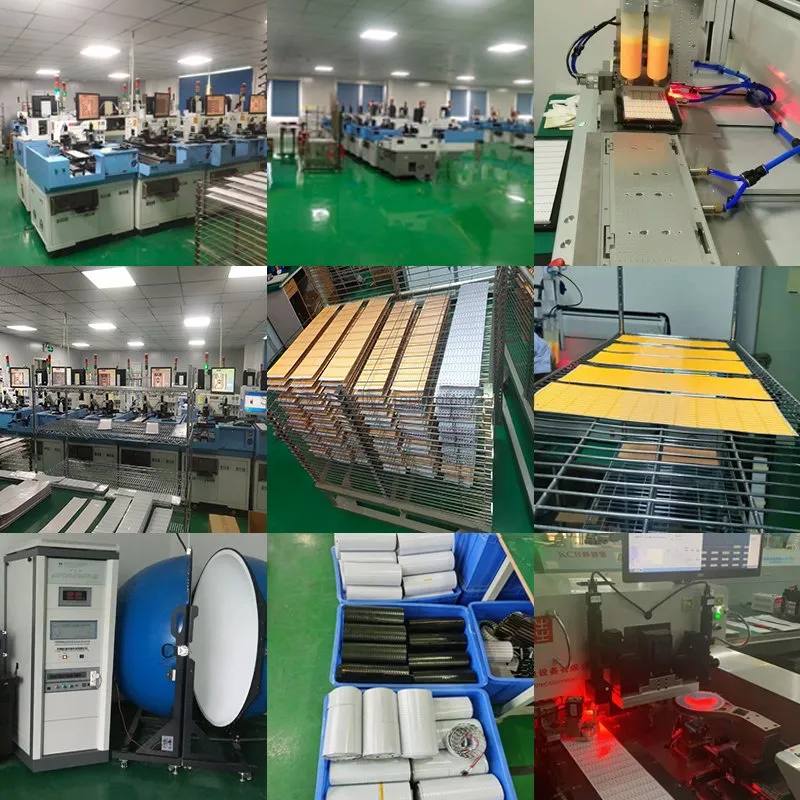

Factory Production Line
Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of LED strip lights, COB strip lights, and Neon lights with factory-direct pricing.
How do you ensure high quality?
We have our own material workshop, conduct 100% online QC and final inspections, and hold ISO9001:2015 and CE/RoHS certifications.
Can you provide custom services?
Yes! We have professional designers who can provide free design services based on your specific requirements.
How long is your product warranty?
We offer a 2-5 year warranty. During this period, any quality issues will be handled with free repairs or replacements.
How do you ship the goods and how long does it take?
We usually ship via DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive. Sea and air freight are also optional.
What is your typical lead time?
Samples take 3-5 days, small batch orders 10-15 days, and large orders are negotiable based on production capacity.
